5500-6500mm Tube Length Fiber Laser Metal Cutting Machine 1500W-20KW

Name: 5500-6500mm Tube Length Fiber Laser Metal Cutting Machine 1500W-20KW
Brand: Qihai Laser Tech. Co., Ltd.
SKU: QH-GS
Availability: InStock

Brand Name:	QIHAI
Model Number:	QH-GS
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100 Set/month

Detail Information

Product Description

Detail Information

Place of Origin:

Foshan, Guangdong, China

Certification:

CE, ISO

Cnc Or Not:

Yes

Graphic Format Supported:

PLT,DXF,AI,BMP,DST

Cutting Thickness:

Depends,Materials,0-20mm,30mm Acrylic,0-15mm

Cooling Mode:

Water Cooling

Warranty:

1 Year

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Color:

White,according To Client,Required,Blue And White

Packaging Details:

wood

Highlight:

6500mm Fiber Laser Metal Cutting Machine

5500mm Fiber Laser Metal Cutting Machine

20KW fiber laser cutting machine 1500w

Product Description

QH-GS Standard Model Tube Cutting Machine Horizontally-mounted Lothe

Description

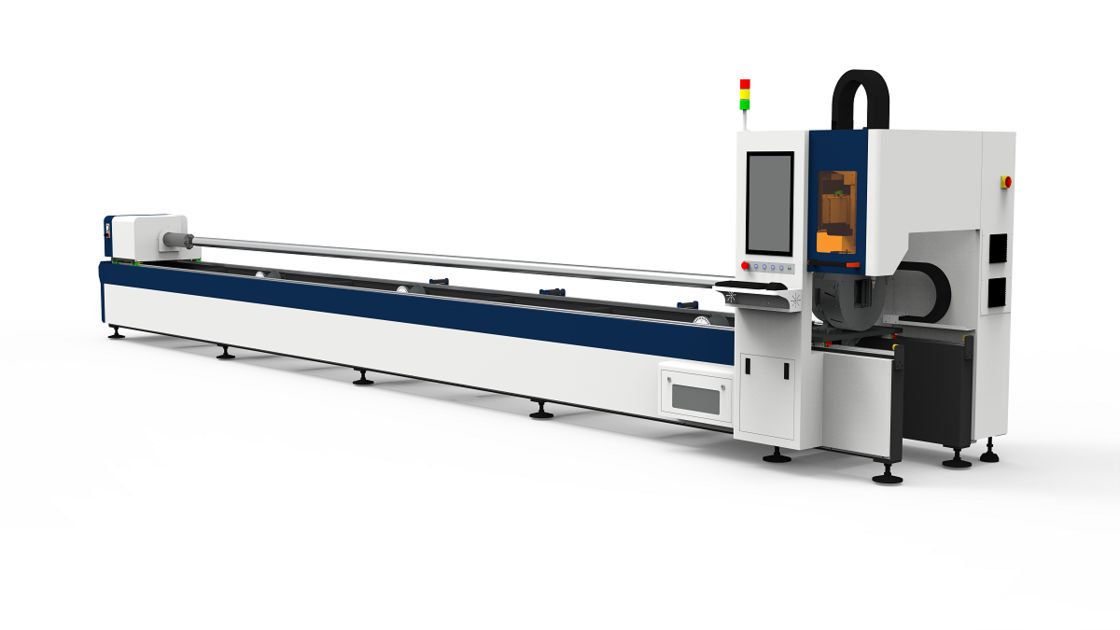

The QH-GS Horizontally Mounted Standard Model Tube Cutting Machine (Model: QH-GS-6012) is a reliable, cost-effective solution engineered for routine round and square tube processing, featuring a horizontal layout and simplified standard design (without automatic loading/unloading). Tailored to meet daily production needs, it handles a wide range of common tube sizes: round tubes with diameters from Φ15mm to Φ500mm, square tubes from 15×15mm to 500×500mm, and tube lengths of 5500-6500mm.

Quick Detail

Standard Model Core Traits: Horizontal mounting + no automatic loading/unloading (simplified, budget-friendly design); focused on routine tube cutting tasks.

Key Specs: Φ15-500mm (round tube)/15×15-500×500mm (square tube), 5500-6500mm tube length, 1500W-20KW laser power, ±0.03mm accuracy, 1.7T weight, 8500×1380×2050mm dimensions.

Fit: Routine round/square tube processing; workshops with manual/semi-automated operations (construction/furniture/mechanical engineering).

Product Specifications

Model	QH-GS-6012
Cutting Diameter	Round Tube: Φ15-500mm Square Tube: 1515mm to 500500mm
Tube Length Capacity	5500-6500mm
Machine Weight	1.7T
Dimensions (LWH)	850013802050mm
Laser Power Range	1500W-20KW
Positioning Accuracy	±0.03mm (X/Y-axis)
Repositioning Accuracy	±0.03mm (X/Y-axis)
Compatible Tube Types	Round Tube / Square Tube

Advantage

Standard Design for Cost & Maintenance Efficiency: As a standard model, it excludes complex automatic loading/unloading systems—lowering initial purchase costs by 20%-30% compared to automated versions. The simplified structure reduces maintenance workload (no need to service feeding mechanisms) and cuts operator training time, enabling quick integration into existing manual workflows without extra operational costs.

Optimized for Routine Tube Sizes: Calibrated to cover the most commonly used tube dimensions (Φ15-500mm

round, 15×15-500×500mm square), it eliminates the need for specialized upgrades for daily tasks. Businesses can handle over 90% of routine tube processing (e.g., cutting structural tubes for construction, frame tubes for furniture) without investing in multiple machines, maximizing equipment utility for standard production needs.

Horizontal Layout + Reliable Standard Precision: Its horizontal mounting aligns with conventional manual tube positioning habits, allowing operators to load/unload tubes easily without awkward adjustments. Paired with ±0.03mm positioning/repositioning accuracy, it meets the precision demands of standard tube applications (no need for ultra-high tolerance configurations), ensuring consistent cut quality and minimizing scrap rates for routine production runs.
