| Brand Name: | QIHAI |
| Model Number: | QH-GB |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 Set/month |

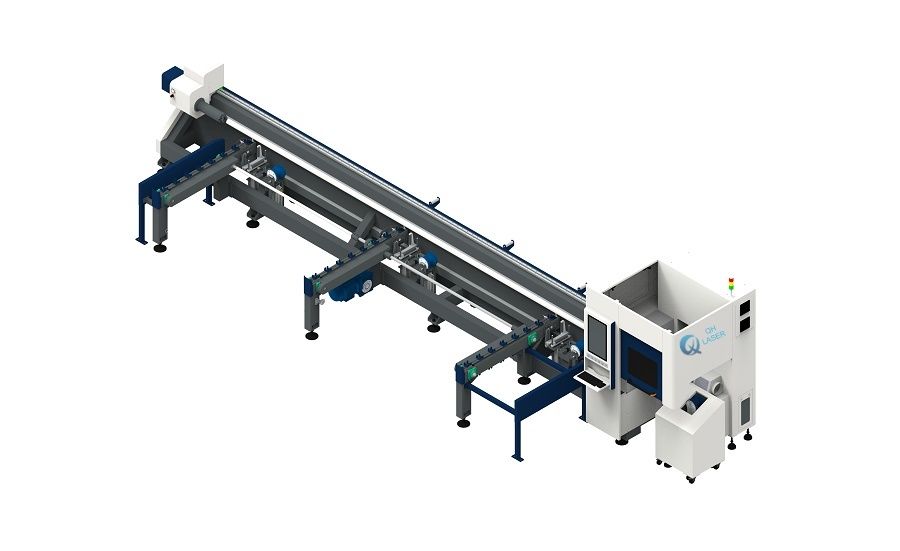

Core Dual-Capability Highlight: Integrates bevel cutting + tube cutting; handles Φ15-500mm round tubes & 15×15-500×500mm square tubes (5500-6500mm length) — eliminates secondary beveling steps, cutting processing time by 35%-55%.
Key Performance & Handling: ±0.03mm dual-axis accuracy (ensures bevel/tube cut precision); 1500W-20KW laser power (adapts to thin/thick tubes); semi-automatic loading (cuts manual material handling time by 40% vs. fully manual setups).
Practical Edge: Compact 8700×1420×2110mm size (fits workshop layouts); 1.8T weight (industrial stability); ideal for steel structures/pipelines needing precise tube bevels for welding.
| Model | QH-GB |
|---|---|
| Cutting Diameter | Round Tube: Φ15-500mm Square Tube: 15*15mm to 500*500mm |
| Tube Length Capacity | 5500-6500mm |
| Machine Weight | 1.8T |
| Dimensions (L*W*H) | 8700*1420*2110mm |
| Laser Power Range | 1500W-20KW |
| Positioning Accuracy | ±0.03mm (X/Y-axis) |
| Repositioning Accuracy | ±0.03mm (X/Y-axis) |
| Compatible Tube Types | Round Tube / Square Tube |
All-in-One Tube & Bevel Processing: Unlike single-function machines, it combines tube cutting and beveling in one workflow—processing Φ15-500mm round tubes and 15×15-500×500mm square tubes without switching equipment. This eliminates the need for post-cut grinding/milling (common in traditional tube processing) and reduces workpiece transfer, cutting overall production cycles by 35%-55% while ensuring uniform bevel quality for welding.
Semi-Automatic Loading Boosts Efficiency: The semi-automatic loading system simplifies heavy tube handling (especially for 5500-6500mm long tubes), reducing manual labor by 40% and minimizing material damage risks from manual lifting. It also shortens setup time between batches, making it ideal for high-volume tube processing compared to fully manual tube cutters.
High Precision Meets Versatile Power: With ±0.03mm X/Y-axis accuracy, it maintains tight tolerances for both straight tube cuts and complex bevels (e.g., V-type, U-type for welding), critical for industries like pipeline engineering where fit-up precision affects joint integrity. The 1500W-20KW laser power range further adapts to diverse tube thicknesses (from thin-walled to thick-walled tubes), while its 8700×1420×2110mm compact footprint (vs. similar large-tube machines) saves workshop space, enhancing layout flexibility.
