QH-GS Standard Model Tube Cutting Machine Beveling Cutting Follow-up Support

Name: QH-GS Standard Model Tube Cutting Machine Beveling Cutting Follow-up Support
Brand: Qihai Laser Tech. Co., Ltd.
SKU: QH-GS
Availability: InStock

Brand Name:	QIHAI
Model Number:	QH-GS
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100 Set/month

Detail Information

Product Description

Detail Information

Place of Origin:

Foshan, Guangdong, China

Certification:

CE, ISO

Cnc Or Not:

Yes

Graphic Format Supported:

PLT,DXF,AI,BMP,DST

Cutting Thickness:

Depends,Materials,0-20mm,30mm Acrylic,0-15mm

Cooling Mode:

Water Cooling

Warranty:

1 Year

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Color:

White,according To Client,Required,Blue And White

Packaging Details:

wood

Highlight:

tube cutting machine beveling cutting

beveling cutting tube laser cutting machine

30mm acrylic tube cutting machine

Product Description

QH-GS Standard Model Tube Cutting Machine Beveling Cutting Follow-up Support

Description

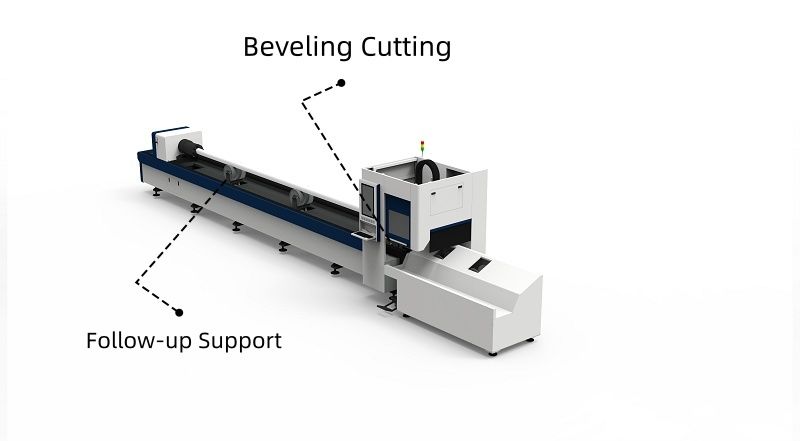

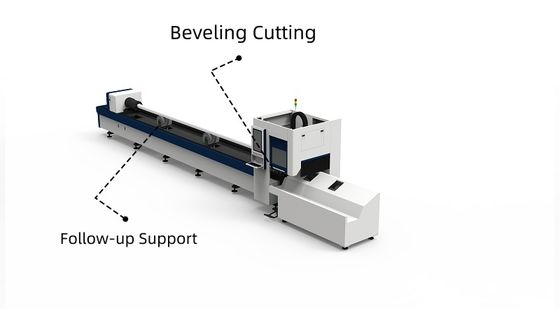

The QH-GS Standard Model Tube Cutting Machine (Model: QH-GS-6012) is a specialized solution for precision long-tube beveling, integrating 45° bevel cutting capability with a side-mounted lathe follow-up support system—designed to solve sagging-induced bevel errors in long-tube processing, ideal for industries like construction machinery, automotive chassis, and hydraulic pipelines that require high-precision 45° weld joints.

Its core strengths lie in two synergistic features: First, it delivers consistent 45° bevel cutting for both round tubes (Φ15-500mm) and square tubes (15×15-500×500mm), with the laser power range (1500W-20KW) adapting to tube thicknesses (0.5-25mm) to ensure smooth, burr-free bevel edges. Second, the side-mounted lathe follow-up support dynamically tracks 5500-6500mm long tubes during beveling—adjusting lateral support points and contact force in real time to prevent sagging (a major cause of 45° angle deviation).

Quick Detail

Dual Core Features: 45° bevel cutting for round (Φ15-500mm)/square (15×15-500×500mm) tubes; side-mounted follow-up support prevents sagging in 5500-6500mm tubes, maintaining ±0.03mm bevel precision.
Key Specs: 1500W-20KW laser power (adapts to bevel thicknesses); 8500×1380×2050mm size (1.7T weight); ±0.03mm X/Y accuracy.
Value: Cuts 45° bevel setup time by 30% vs. manual support; reduces bevel angle deviation (from sagging) by 90%.

Product Specifications

Model	QH-GS-6012
Cutting Diameter	Round Tube: Φ15-500mm Square Tube: 1515mm to 500500mm
Tube Length Capacity	5500-6500mm
Machine Weight	1.7T
Dimensions (LWH)	850013802050mm
Laser Power Range	1500W-20KW
Positioning Accuracy	±0.03mm (X/Y-axis)
Repositioning Accuracy	±0.03mm (X/Y-axis)
Compatible Tube Types	Round Tube / Square Tube

Advantage

Consistent 45° Bevel Accuracy for Long Tubes: For 5500-6500mm long tubes, traditional machines without follow-up support cause 0.5-1° 45° bevel deviation due to sagging. The QH-GS’s follow-up system adjusts lateral support dynamically, keeping the tube straight while the laser delivers 45° bevels—paired with ±0.03mm axis accuracy, this ensures bevel angle tolerance stays within ±0.5°, critical for tight weld joint fits in hydraulic pipelines or automotive chassis.
Versatile 45° Beveling Across Tube Types/Sizes: The machine supports 45° bevel cutting for round tubes (Φ15-500mm) and square tubes (15×15-500×500mm) without fixture swaps. The follow-up support adapts to tube shapes: arc-adapted pads for round tubes (preventing slippage during 45° rotation) and multi-point support for square tubes (avoiding edge deformation while beveling). This versatility eliminates the need for specialized bevel tools, lowering costs and streamlining workflow.
Efficient 45° Bevel Production: Manual adjustment of long-tube supports for 45° beveling takes 15-20 minutes per tube; the QH-GS’s automatic follow-up system cuts this to 4-6 minutes. Additionally, its 45° bevel cutting is completed in one pass (no secondary grinding), reducing per-tube bevel time by 50%. For batches of 100+ 6000mm tubes, this saves 12+ hours of production time.
Damage-Free 45° Beveling for High-Value Tubes: High-precision tubes (e.g., stainless steel hydraulic tubes) are prone to bending or indentation during beveling if supported improperly. The follow-up system’s dynamic force adjustment ensures even pressure on the tube’s side—protecting the tube from damage while maintaining stability for 45° beveling. This reduces material waste by 30% and preserves the tube’s structural integrity for subsequent welding.
