1500W-20KW Square Tube Laser Cutting Machine Horizontally Mounted Lathe Follow Up Support

Name: 1500W-20KW Square Tube Laser Cutting Machine Horizontally Mounted Lathe Follow Up Support
Brand: Qihai Laser Tech. Co., Ltd.
SKU: QH-GS
Availability: InStock

Brand Name:	QIHAI
Model Number:	QH-GS
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100 Set/month

Detail Information

Product Description

Detail Information

Place of Origin:

Foshan, Guangdong, China

Certification:

CE, ISO

Cnc Or Not:

Yes

Graphic Format Supported:

PLT,DXF,AI,BMP,DST

Cutting Thickness:

Depends,Materials,0-20mm,30mm Acrylic,0-15mm

Cooling Mode:

Water Cooling

Warranty:

1 Year

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Color:

White,according To Client,Required,Blue And White

Packaging Details:

wood

Highlight:

20KW square tube laser cutting machine

1500W square tube laser cutting machine

Water Cooling metal pipe laser cutting machine

Product Description

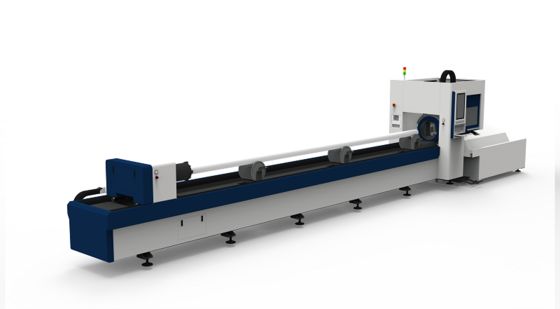

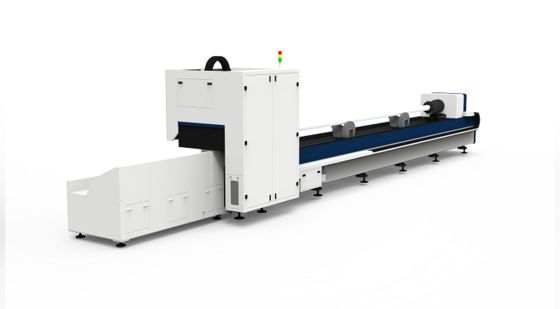

QH-GS Standard Model Tube Cutting Machine Horizontally-mounted Lathe Follow-up Support

Description

The QH-GS Standard Model Tube Cutting Machine (Model: QH-GS-6012) is a precision solution engineered for long-tube processing, with its horizontally-mounted lathe follow-up support as the core innovation to address stability challenges in horizontal long-tube cutting—ideal for industries like construction machinery, automotive chassis, and hydraulic pipeline manufacturing that rely on 5500-6500mm long tubes.

Unlike side-mounted follow-up systems, its horizontally-mounted structure aligns with the tube’s horizontal processing axis, dynamically tracking the tube’s length (5500-6500mm) and position during cutting. It adapts to both round tubes (Φ15-500mm) and square tubes (15×15-500×500mm) via adjustable horizontal support pads: for round tubes, it uses arc-fitted cushions to maintain coaxiality; for square tubes, it deploys multi-point horizontal contact to prevent lateral shifting. This horizontal follow-up design eliminates sagging and axial deviation (common in long-tube horizontal cutting) and works in tandem with the machine’s ±0.03mm X/Y-axis positioning/repositioning accuracy and 1500W-20KW laser power range—ensuring consistent, burr-free cuts even for full-length tube beveling or precision notching. Weighing 1.7T and measuring 8500×1380×2050mm, the machine balances robust horizontal support performance with workshop space efficiency, making it suitable for batch production of high-precision long tubes.

Quick Detail

Horizontal Follow-up Core: Aligns with tube’s horizontal axis; dynamically tracks 5500-6500mm long tubes, prevents sagging/shifting for round (Φ15-500mm) & square (15×15-500×500mm) tubes, maintaining ±0.03mm precision.

Key Specs: Model QH-GS-6012; 1500W-20KW laser power; 8500×1380×2050mm (1.7T weight); compatible with round/square tubes.

Value: Cuts long-tube horizontal setup time by 30% vs. manual supports; reduces sag-induced scrap rates by 40%.

Product Specifications

Model	QH-GS-6012
Cutting Diameter	Round Tube: Φ15-500mm Square Tube: 1515mm to 500500mm
Tube Length Capacity	5500-6500mm
Machine Weight	1.7T
Dimensions (LWH)	850013802050mm
Laser Power Range	1500W-20KW
Positioning Accuracy	±0.03mm (X/Y-axis)
Repositioning Accuracy	±0.03mm (X/Y-axis)
Compatible Tube Types	Round Tube / Square Tube

Advantage

Horizontal Stability for Long-Tube Precision: For 5500-6500mm long tubes processed horizontally, traditional non-follow-up machines often suffer 0.6-1.2mm sagging (worse than vertical setups), leading to cutting deviation. The QH-GS’s horizontally-mounted follow-up system adjusts 2-4 horizontal support points in real time, keeping the tube aligned with the cutting axis—ensuring the machine’s ±0.03mm X/Y accuracy translates to consistent cut quality across the entire tube length, critical for tight-tolerance applications like hydraulic pipeline joints.

Seamless Adaptation to Tube Shapes/Sizes: The horizontal follow-up support requires no fixture swaps between round tubes (Φ15-500mm) and square tubes (15×15-500×500mm). For small-diameter round tubes (e.g., Φ15mm), it uses low-pressure horizontal cushions to avoid crushing; for large square tubes (e.g., 500×500mm), it increases horizontal support span to counteract weight-induced lateral tilt. This versatility eliminates 15-20 minutes of fixture adjustment per tube type, streamlining multi-format production.

Batch Efficiency Boost for Horizontal Processing: Without horizontal follow-up, operators spend 12-18 minutes per long tube manually aligning horizontal supports. The QH-GS’s automatic system cuts this to 4-6 minutes, while its stable horizontal support reduces rework (from sag/shift errors) by 45%. For batches of 40+ 6000mm tubes, this saves 5-7 hours of production time, lifting throughput by 30% vs. side-mounted or fixed-support machines.
