| Brand Name: | QIHAI |
| Model Number: | QH-GC3-S |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 set/month |
Triple Core Capabilities: 3 Chucks (stable Φ15-500mm round/15×15-500×500mm square tube clamping); Semi-automatic Loading (reduces manual effort by 50%); Beveling Cutting (±0.03mm precision for V/U/Y bevels).
Key Specs: 5500-6500mm tube length capacity; 1500W-20KW laser power; 6T weight (vibration dampening); 16680×5480×2250mm dimensions.
Fit: Batch processing (construction/automotive); standard 380V/50Hz industrial power (implied for compatibility).
| Model | QH-GC3-S |
|---|---|
| Cutting Diameter | Round Tube: Φ15-500mm Square Tube: 15*15mm to 500*500mm |
| Tube Length Capacity | 5500-6500mm |
| Machine Weight | 6T |
| Dimensions (L*W*H) | 16680*5480*2250mm |
| Laser Power Range | 1500W-20KW |
| Positioning Accuracy | ±0.03mm (X/Y-axis) |
| Repositioning Accuracy | ±0.03mm (X/Y-axis) |
| Compatible Tube Types | Round Tube / Square Tube |
| Automatic Loading | Semi-automatic Loading |
3 Chucks Ensure Unmatched Stability & Precision for Tube Beveling: The triple-chuck configuration evenly clamps tubes (Φ15-500mm round/15×15-500×500mm square), preventing sagging or shifting during high-power beveling (e.g., 20KW for 20mm thick steel tubes). Paired with ±0.03mm axis accuracy, this eliminates bevel taper (common in 2-chuck designs) and reduces weld joint rework by 35%—critical for applications requiring strict joint tolerance (e.g., automotive frame tubes).

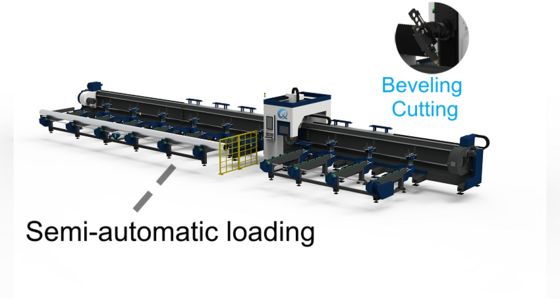

Semi-automatic Loading Balances Efficiency & Flexibility: Unlike fully manual machines (which require 2-3 operators for heavy tube handling), the semi-automatic system automates alignment and feeding, cutting setup time per batch by 40% while allowing manual tweaks for non-standard tube sizes. This makes it ideal for workshops with mixed batches (e.g., alternating between 100×100mm and 300×300mm square tubes) where fully automated lines would be overengineered.
Integrated Beveling Cutting Eliminates Secondary Processing: The machine’s dedicated beveling function (V/U/Y-type profiles) delivers ±0.03mm precision, removing the need for post-cut grinding (saving 20-30 minutes per tube). The 1500W-20KW laser power range adapts to material needs: low power (1500W-5KW) for delicate aluminum tube bevels, high power (10KW-20KW) for thick carbon steel bevels—all while leveraging the 3-chuck stability to maintain consistency, boosting overall production efficiency by 30%.
