| Brand Name: | QIHAI |
| Model Number: | QH-6020F |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 set/month |

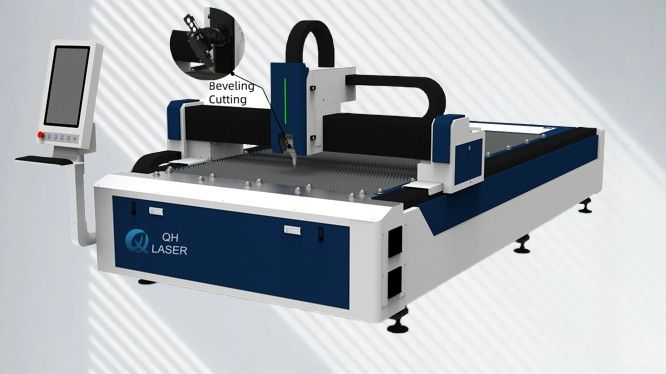

Beveling Core: ±45° adjustable bevel angle (±0.5° tolerance); supports V/U/Y/single/double-sided bevels; no segmentation for 6000×2000mm large workpieces.
Key Specs: 6000×2000mm processing area (1000kg max loading), 1500W-20KW power (0.5-25mm bevel thickness), ±0.03mm axis precision (double rack & pinion drive).
Efficiency: 100m/min max speed, 1.0G acceleration—cuts large-sheet bevel time by 35% vs. segmented processing.
Fit: Heavy machinery/steel structures; 380V/50Hz for industrial workshops.
| Processing Area | 6000 * 2000mm |
| Maximum Loading Weight | 1000kg |
| Machine Weight | 3600kg |
| Overall Dimensions | 8000×2760×1900mm |
| Laser Power Range | 1500W - 20KW |
| X/Y-axis Positioning Accuracy | ±0.03mm |
| X/Y-axis Repositioning Accuracy | ±0.03mm |
| Maximum Linkage Acceleration | 1.0G |
| Maximum Linkage Speed | 100m/min |
| Transmission System | Double rack & pinion transmission with servo drive |
| Voltage Requirement | 380V |
| Frequency | 50Hz |
Advantage
±45° Bevel Versatility for Welding Needs: The adjustable ±45° bevel range covers most industrial pre-welding requirements—from shallow 10° bevels for thin-sheet lap welding to steep 45° bevels for thick-plate butt welding. It supports multi-type bevel profiles without tool changes, replacing traditional grinding/milling secondary processes and cutting pre-welding time by 40%-45%.
High-Power Beveling for Thick Plates: The 1500W-20KW power range enables efficient beveling of thick metals—20KW for 20-25mm carbon steel (deep bevel penetration), 1500W for 0.5-5mm aluminum (precision bevel edges). Unlike low-power bevel cutters that struggle with thick plates, this machine maintains smooth bevel surfaces without dross, reducing post-bevel cleaning time by 30%+.
Stable Bevel Consistency Under Load: The 3600kg sturdy frame and double rack & pinion servo transmission prevent workpiece shift or vibration during high-load beveling (e.g., 1000kg thick plates). This ensures ±0.5° bevel angle tolerance even for long-duration large-sheet processing, critical for heavy machinery components where bevel quality directly impacts structural strength.
