| Brand Name: | QIHAI |
| Model Number: | QH-8025F |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 90set/mon |

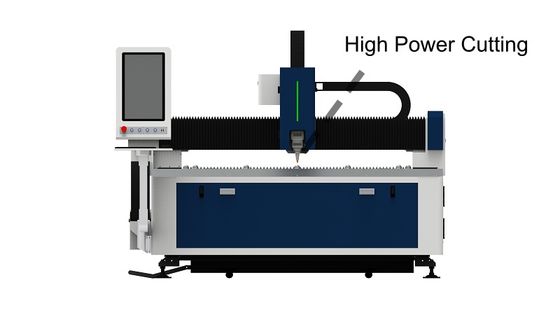

High Power Core (6000W-20KW): Enables single-pass cutting of 10-30mm carbon steel/8-25mm stainless steel; eliminates multi-pass thick-plate processing, cutting time by 50%+ vs. low-power machines.
Key Specs: 8000×2500mm area (3200kg max loading), ±0.03mm axis accuracy (high-power cutting + precision), 100m/min speed, double rack & pinion transmission.

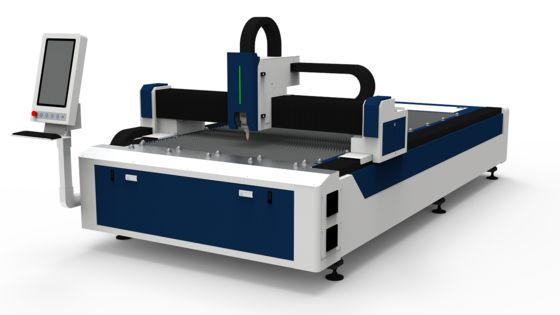

Design & Fit: Open single-platform (easy heavy thick-sheet loading); ideal for heavy machinery/steel structures; 380V/50Hz industrial use.
| Processing Area | 3000 * 1500mm |
| Maximum Loading Weight | 3200kg |
| Machine Weight | 4500kg |
| Overall Dimensions | 11000 * 3260 * 1900mm |
| Laser Power Range | 6000W - 20KW |
| X/Y-axis Positioning Accuracy | ±0.03mm |
| X/Y-axis Repositioning Accuracy | ±0.03mm |
| Maximum Linkage Acceleration | 1.0G |
| Maximum Linkage Speed | 100m/min |
| Transmission System | Double rack & pinion transmission with servo drive |
| Voltage Requirement | 380V |
| Frequency | 50Hz |
Advantage
High Power Enables Single-Pass Thick-Plate Cutting: The 6000W-20KW range eliminates the need for multi-pass cutting of thick metals—for example, a 25mm carbon steel sheet can be cut in one pass with 20KW power, whereas a 3000W machine would require 2-3 passes. This reduces processing time by 50%-60% and avoids heat accumulation-induced material deformation, ensuring consistent cut quality across thick workpieces.
High Power Boosts Thick-Metal Cutting Efficiency: Even for heavy-gauge materials, the high power maintains fast cutting speeds—e.g., 20KW power achieves 25-30m/min cutting speed for 20mm stainless steel, and 15-20m/min for 30mm carbon steel. This outperforms low-power machines (which typically run at 5-10m/min for the same thickness), making it ideal for high-volume thick-sheet production.
Precision Retention Under High Power: Unlike low-quality high-power machines that sacrifice accuracy for power, the QH-8025F’s double rack & pinion servo transmission stabilizes the laser head during high-power cutting. It retains ±0.03mm X/Y-axis precision, ensuring thick-plate components (e.g., heavy machinery brackets, steel structure joints) meet strict dimensional tolerances without post-processing.
Power Versatility for Diverse Thick-Metal Needs: The 6000W-20KW adjustable range adapts to varied thick-sheet requirements: 6000W-10KW for efficient cutting of 10-15mm aluminum/stainless steel, and 15KW-20KW for deep-penetration cutting of 20-30mm carbon steel. This versatility eliminates the need for multiple machines for different thick materials, lowering equipment costs and streamlining heavy-duty production workflows.
