| Brand Name: | QIHAI |
| Model Number: | QH-8020F |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 90set/mon |

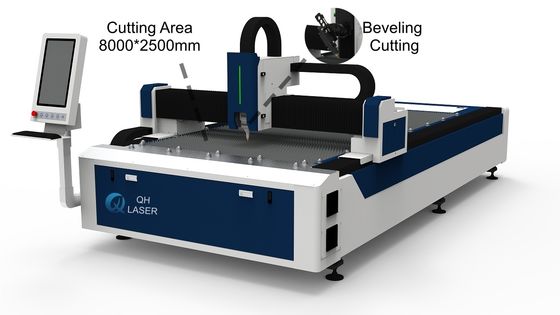

Beveling Core: ±45° adjustable bevel angle (0.1° increments, ±0.5° accuracy); supports V/U/Y/single/double-sided bevels, no secondary grinding.
Key Specs: 8000×2000mm area (2600kg max loading), 1500W-20KW power (0.5-30mm bevel thickness), ±0.03mm axis precision, 100m/min speed.

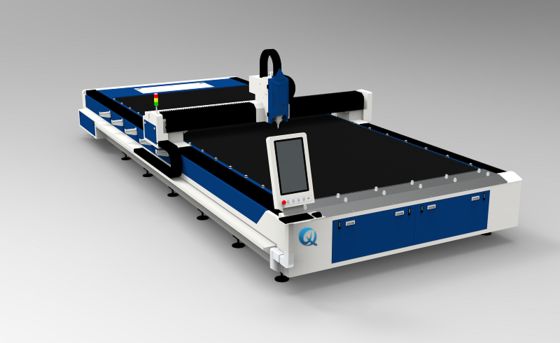

Design & Fit: Open single platform for easy heavy workpiece handling; ideal for steel structure/heavy machinery welding prefab; 380V/50Hz.
| Processing Area | 8000 * 2000mm |
| Maximum Loading Weight | 2600kg |
| Machine Weight | 3800kg |
| Overall Dimensions | 11000 * 3260 * 1900mm |
| Laser Power Range | 1500W - 20KW |
| X/Y-axis Positioning Accuracy | ±0.03mm |
| X/Y-axis Repositioning Accuracy | ±0.03mm |
| Maximum Linkage Acceleration | 1.0G |
| Maximum Linkage Speed | 100m/min |
| Transmission System | Double rack & pinion transmission with servo drive |
| Voltage Requirement | 380V |
| Frequency | 50Hz |
| Beveling Cutting | ±45° |
Advantage
±45° Bevel Flexibility Covers Diverse Welding Needs: The full ±45° angle range eliminates limitations of fixed-angle bevel machines, adapting to welding joint requirements for thick plates (e.g., 30mm carbon steel Y-type bevels for deep penetration welding) and thin sheets (e.g., 0.5mm stainless steel V-type bevels for precision joints). This versatility reduces the need for multiple beveling tools, cutting equipment investment by 30%-40%.
High Precision Ensures Bevel Consistency: ±0.03mm X/Y-axis accuracy and ±0.5° bevel angle precision prevent uneven bevel edges—critical for welding quality, as inconsistent bevels often cause weld gaps or weak joints. For large 8m×2m workpieces, this precision maintains uniform bevel dimensions across the entire surface, reducing weld rework rates by 50% vs. lower-accuracy bevel machines.
Open Platform + High Speed Boost Bevel Efficiency: The open single platform allows fast crane loading/unloading of 2600kg heavy plates (saving 20%-30% loading time vs. enclosed machines), while 100m/min speed and 1.0G acceleration cut bevel processing time—e.g., completing a ±45° V-bevel on an 8m×2m steel plate in 25-30 minutes (vs. 40+ minutes with slow bevel cutters). This “fast load + fast bevel” workflow increases daily bevel output by 40%.
