| Brand Name: | QIHAI |
| Model Number: | QH - 3015FB |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 set/month |
High-Power Core (6000W-20KW): Cuts 5-30mm carbon steel/3-25mm stainless steel; 2x faster thick-material speed vs. low-power machines; minimal heat-affected zones on thick workpieces.
Key Specs: 6000×1500mm area (1000kg max loading), ±0.03mm X/Y accuracy (maintained at high power), 100m/min max speed.

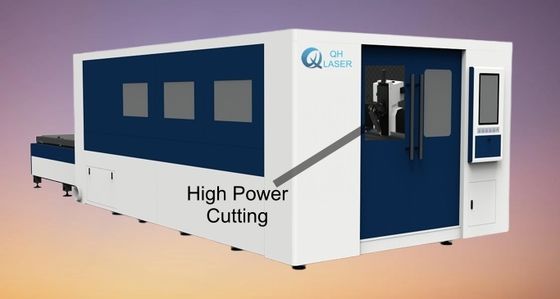

Dual-Platform & Enclosed Edge: Alternating platforms eliminate loading/unloading downtime (boost efficiency by 30%); enclosed design contains high-power cutting fumes.
Fit: Heavy machinery, steel structures; 380V/50Hz industrial compatibility.
| Processing Area | 6000 * 1500mm |
| Maximum Loading Weight | 1000kg |
| Machine Weight | 3500kg |
| Overall Dimensions | 8500×2280×2150mm |
| Laser Power Range | 6000W - 20KW |
| X/Y-axis Positioning Accuracy | ±0.03mm |
| X/Y-axis Repositioning Accuracy | ±0.03mm |
| Maximum Linkage Acceleration | 1.0G |
| Maximum Linkage Speed | 100m/min |
| Transmission System | Double rack & pinion transmission with servo drive |
| Voltage Requirement | 380V |
| Frequency | 50Hz |
Advantage
High-Power Enables Thick-Material Efficiency: The 6000W-20KW range eliminates "slow cutting bottlenecks" for thick metals—processing 20mm carbon steel at 5-7m/min (vs. 2-3m/min with 3000W machines) and 15mm stainless steel at 6-9m/min. This cuts batch processing time for thick workpieces (e.g., 50pcs of 18mm×4m steel plates) by 40%-50%, directly meeting heavy industry’s high-volume thick-material demands.
Deep Penetration with Precision: High power ensures full penetration of thick, high-strength materials (e.g., 30mm high-carbon steel) without incomplete cuts—common in low-power machines. The double rack & pinion transmission retains ±0.03mm accuracy during high-power cutting, avoiding "wobble" in thick workpiece edges and reducing post-processing (grinding, trimming) needs by 35%-45%.
Versatile High-Power Adaptability: The 6000W-20KW adjustable range fits diverse thick-material scenarios: 6000W-10KW for 5-15mm metals (energy-saving for medium thickness), 12KW-20KW for 15-30mm thick plates (max penetration for heavy parts). This eliminates the need for multiple machines for different thick materials, lowering equipment costs while ensuring optimal cutting performance for each thickness.
High-Power + Dual Platforms = Uninterrupted Production: The dual alternating platforms let one platform handle high-power thick-material cutting (e.g., 25mm stainless steel sheets) while the other loads/unloads—no downtime for material changeover. Combined with the machine’s ability to maintain high speed (100m/min) during traversal between thick workpieces, daily output of thick components increases by 30%-35% compared to single-platform high-power machines.
