| Brand Name: | QIHAI |
| Model Number: | QH-3015F |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 90set/mon |

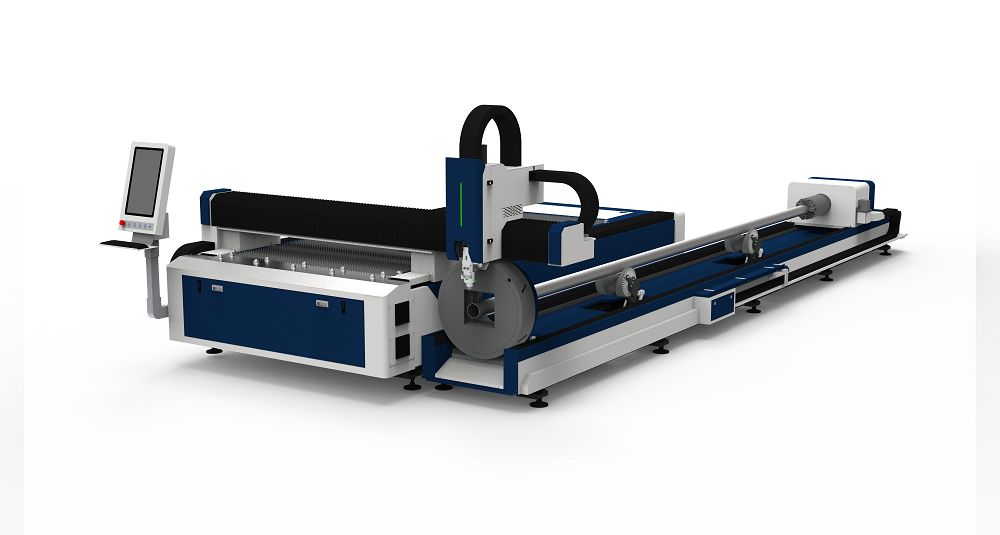

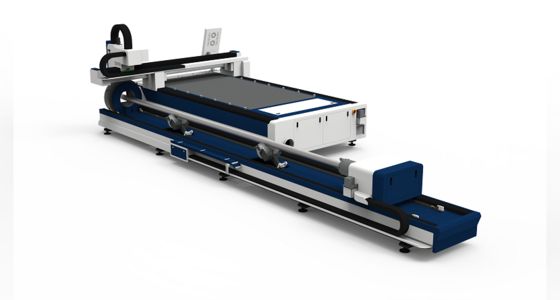

Core High-Power Feature: 6000W-20KW laser power range enables cutting of thick materials (20-30mm carbon steel, 15-25mm stainless steel) with smooth edges, no secondary grinding needed.
Key Specs: 3000×1500mm sheet area (800kg max load) + tube processing; ±0.03mm dual-axis accuracy; 100m/min max speed; servo-driven double rack & pinion transmission.
Fit: Thick-material processing (heavy machinery/pressure vessels); high-power demand for high-strength or large-size workpieces.
| Processing Area | 3000 * 1500mm |
| Maximum Loading Weight | 800kg |
| Machine Weight | 2500kg |
| Overall Dimensions | 8450×3250×1900mm |
| Laser Power Range | 6000W - 20KW |
| X/Y-axis Positioning Accuracy | ±0.03mm |
| X/Y-axis Repositioning Accuracy | ±0.03mm |
| Maximum Linkage Acceleration | 1.0G |
| Maximum Linkage Speed | 100m/min |
| Transmission System | Double rack & pinion transmission with servo drive |
| Voltage Requirement | 380V |
| Frequency | 50Hz |
Advantage
Superior Thick-Material Cutting Capability: The 6000W-20KW power range addresses the pain point of low-power machines (≤3000W) struggling with thick materials. At 6000W, it cuts 20mm carbon steel at 8-10m/min; at 20KW, it handles 30mm+ carbon steel and 25mm+ stainless steel with consistent cut quality—eliminating the need for thermal cutting (e.g., plasma) that leaves rough edges, reducing post-processing time by 40%-50%.
High Power Boosts Heavy-Duty Efficiency: For batch processing of thick workpieces (e.g., 15mm stainless steel tube frames, 20mm carbon steel sheets), the high power shortens single-piece cutting time by 30%-40% compared to 3000W models. The 100m/min maximum linkage speed and 1.0G acceleration further complement this, ensuring fast path transitions between thick-sheet cuts or multi-segment tube processing without efficiency loss.
High Power + Precision for Complex Thick Parts: Unlike high-power machines that sacrifice accuracy for strength, the QH-3015FT’s servo-driven double rack & pinion transmission maintains ±0.03mm accuracy even at 20KW power. This enables precise cutting of complex thick components (e.g., thick steel brackets with irregular holes, multi-angle tube notches) for heavy machinery, meeting strict tolerance requirements while leveraging high power for material penetration.
