| Brand Name: | QIHAI |
| Model Number: | QH-3015F |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 90set/mon |

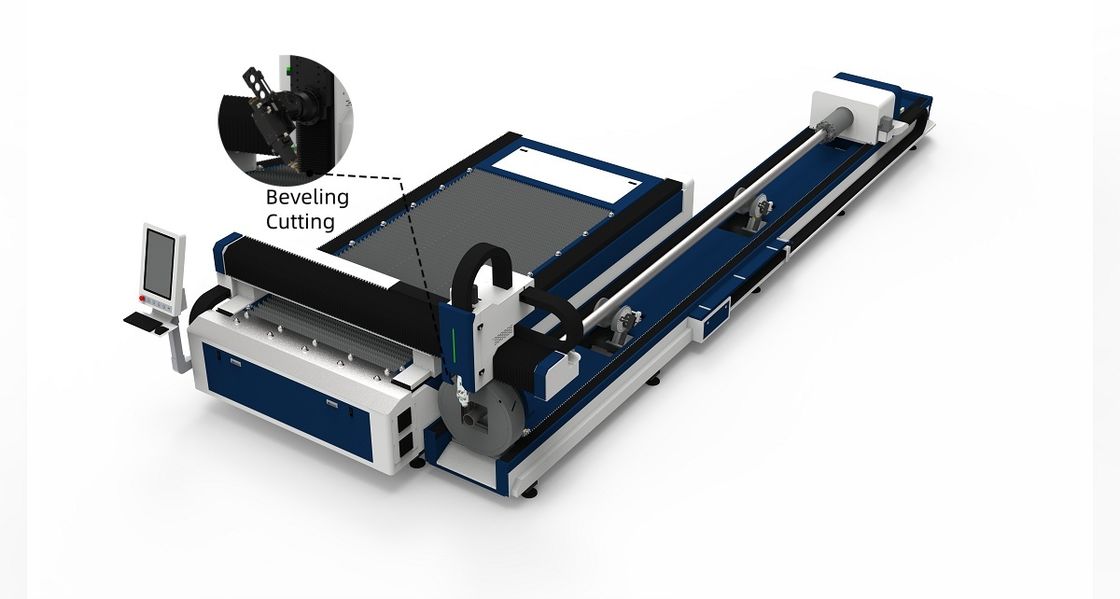

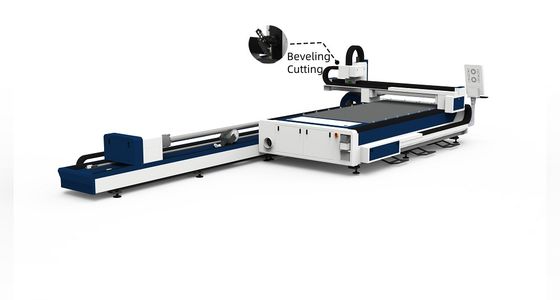

Core Integrated Feature: All-in-one sheet (3000×1500mm, 800kg max load), tube, and bevel cutting—no separate machines needed, simplifying workflow and workshop layout.
Key Specs: ±0.03mm dual-axis accuracy, 1500W-20KW power, 100m/min max speed, double rack & pinion transmission; bevel capability for welding prefabrication.
Fit: Industries needing sheet/tube + bevel (steel structure/automotive); balances multi-tasking, precision, and efficiency.
| Processing Area | 3000 * 1500mm |
| Maximum Loading Weight | 800kg |
| Machine Weight | 2500kg |
| Overall Dimensions | 8450×3250×1900mm |
| Laser Power Range | 1500W - 20KW |
| X/Y-axis Positioning Accuracy | ±0.03mm |
| X/Y-axis Repositioning Accuracy | ±0.03mm |
| Maximum Linkage Acceleration | 1.0G |
| Maximum Linkage Speed | 100m/min |
| Transmission System | Double rack & pinion transmission with servo drive |
| Voltage Requirement | 380V |
| Frequency | 50Hz |
Advantage
Triple-Function Integration Cuts Costs & Space: By merging sheet, tube, and bevel cutting into one machine, it reduces workshop space occupancy by 50%-60% compared to three separate devices. It also lowers initial investment (no need for dedicated sheet, tube, and beveling equipment) and operational costs (unified maintenance, single power supply), making it cost-effective for medium-to-large production with welding prefabrication needs.
Seamless Sheet-Tube-Bevel Workflow: Operators can switch between sheet cutting, tube cutting, and bevel processing without reconfiguring lines or transferring materials—eliminating workflow interruptions. This cuts material handling time by 35%-45% and avoids quality inconsistencies from multi-machine transfer, especially for projects requiring matched sheet components, tube frames, and beveled weld edges.
Consistent Precision Across All Tasks: Backed by ±0.03mm positioning/repositioning accuracy and servo-driven double rack & pinion transmission, the machine maintains uniform quality whether processing 3000×1500mm sheets (up to 800kg), various tubes, or beveled edges. The 100m/min max speed ensures efficient processing for all three functions, avoiding the efficiency gaps of single-function machines and boosting overall production throughput.
