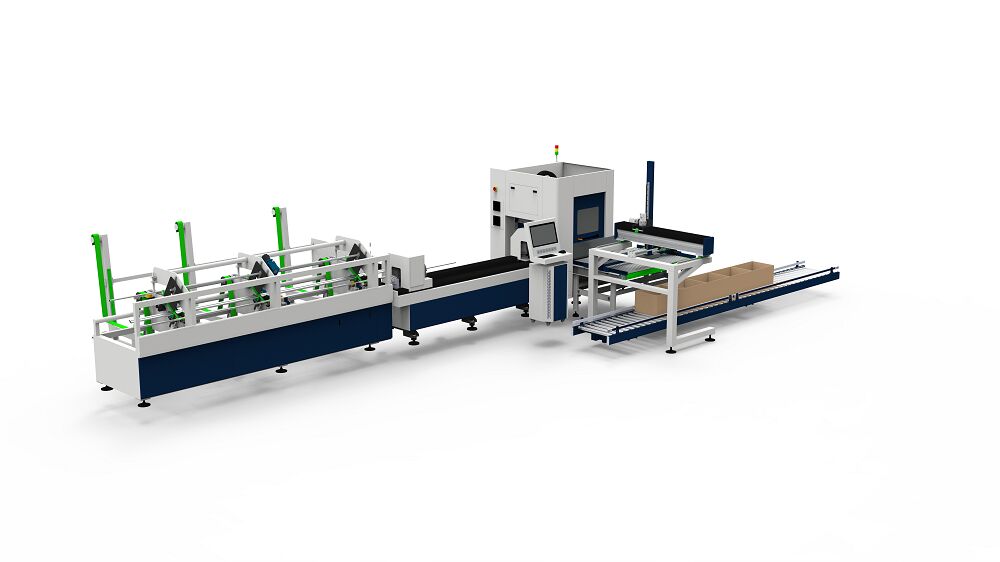

QH-GK Tube laser cutting machine Automatic packing

QH-GK Tube laser cutting machine Automatic packing

Brand Name:	QIHAI
Model Number:	QH-GS
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100 Set/month

Detail Information

Product Description

Detail Information

Place of Origin:

Foshan, Guangdong, China

Certification:

CE, ISO

Cnc Or Not:

Yes

Graphic Format Supported:

PLT,DXF,AI,BMP,DST

Cutting Thickness:

Depends,Materials,0-20mm,30mm Acrylic,0-15mm

Cooling Mode:

Water Cooling

Warranty:

1 Year

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Color:

White,according To Client,Required,Blue And White

Packaging Details:

wood

Highlight:

automatic tube laser cutting machine

fiber laser metal cutter

laser cutting machine with packing

Product Description

QH-GK Tube laser cutting machine Automatic packing

Description

The QH-GK Tube Laser Cutting Machine (taking model QH-GK-6012 as the reference standard) is a professional and integrated tube processing equipment, with its core highlight being the automatic tube cutting and packing function using suction cups, combined with high-precision laser cutting performance. It is specially designed to provide efficient, labor-saving and integrated processing solutions for round and square tube cutting, picking and packing scenarios in industries such as machinery manufacturing, construction pipe fittings, hardware production and pipe processing. This machine breaks through the limitations of traditional manual packing after tube cutting, integrating high-precision laser cutting with intelligent suction cup automatic packing, realizing a seamless workflow from tube cutting to automatic packing, and greatly improving the automation level and production efficiency of tube processing.

Its core feature—the automatic tube cutting and packing function with suction cups—is fully reflected in the seamless connection between the cutting and packing processes: after the laser cutting of the tube is completed, the machine’s dedicated suction cup device accurately and stably picks up the cut round tubes (Φ15-500mm) or square tubes (15×15-500×500mm) without causing scratches or deformation to the tube surface. Then, the suction cup device transports the picked tubes to the designated wooden cases in an orderly manner, automatically arranging and placing the tubes to complete the automatic packing process, which completely replaces manual handling and packing operations.

Quick Detail

Core Highlight: Automatic tube cutting and packing function with suction cups—after cutting, the suction cup picks up the cut tubes and transports them to wooden cases to realize automatic packing, replacing manual operations and ensuring safe and efficient packing.

Key Specifications: Laser power range 1500W-20KW; round tube cutting diameter Φ15-500mm, square tube 15×15-500×500mm; tube length capacity 5500-6500mm.

Application Scope: Machinery components, construction pipe fittings, hardware products and other scenarios requiring automated, high-efficiency tube cutting and packing integration.

Product Specifications

Model	QH-GK-6012
Cutting Diameter	Round Tube: Φ15-500mm Square Tube: 1515mm to 500500mm
Tube Length Capacity	5500-6500mm
Machine Weight	1.7T
Dimensions (LWH)	850013802050mm
Laser Power Range	1500W-20KW
Positioning Accuracy	±0.03mm (X/Y-axis)
Repositioning Accuracy	±0.03mm (X/Y-axis)
Compatible Tube Types	Round Tube / Square Tube
Function	Automatic packing

Advantage

Suction Cup Automatic Packing Saves Labor and Improves Efficiency: Compared with traditional manual packing after tube cutting (which requires 2-3 workers to handle and pack cut tubes, with low efficiency and high labor intensity), the QH-GK’s suction cup automatic packing function completes the entire packing process automatically after cutting. The suction cup can quickly and stably pick up and transport tubes, reducing manual operation steps by 100%, cutting packing time by more than 50%, and greatly improving the overall production efficiency of tube processing. It also saves a lot of labor costs for enterprises and avoids labor shortages affecting production progress.

Suction Cup Picking Ensures Safe and Damage-Free Packing: The machine’s dedicated suction cup device adopts a soft and wear-resistant design, which can stably absorb round and square tubes of different specifications without scratching the tube surface or causing deformation of the cut tubes (especially for precision tubes requiring high surface quality). During the transportation and packing process, the suction cup maintains stable clamping force, avoiding tube falling or collision, ensuring the integrity of the finished tubes and improving the qualification rate of products. This solves the problem of tube surface scratches and deformation caused by manual handling and packing.

Automatic Packing with Suction Cups Ensures Orderly and Standardized Packing: The suction cup automatic packing function transports the cut tubes to the wooden cases in an orderly manner according to the preset program, realizing uniform arrangement and standardized packing of tubes. This not only improves the appearance of packed products, facilitates subsequent storage and transportation, but also avoids messy packing caused by manual operation, reducing the risk of tube damage during storage and transportation. At the same time, the automatic packing process is controllable, ensuring consistent packing quality for each batch of products.

Integration of Suction Cup Automatic Packing and High-Precision Cutting, Realizing Seamless Workflow: The machine integrates high-precision laser cutting (1500W-20KW laser power, ±0.03mm positioning accuracy) with suction cup automatic packing, forming a seamless workflow from tube cutting to packing. There is no need for manual transfer between cutting and packing processes, which not only shortens the production cycle but also avoids precision errors or surface damage caused by manual transfer of cut tubes. It is especially suitable for large-batch tube processing orders, which can realize continuous automated production and meet the high-efficiency and high-standard processing needs of enterprises.
