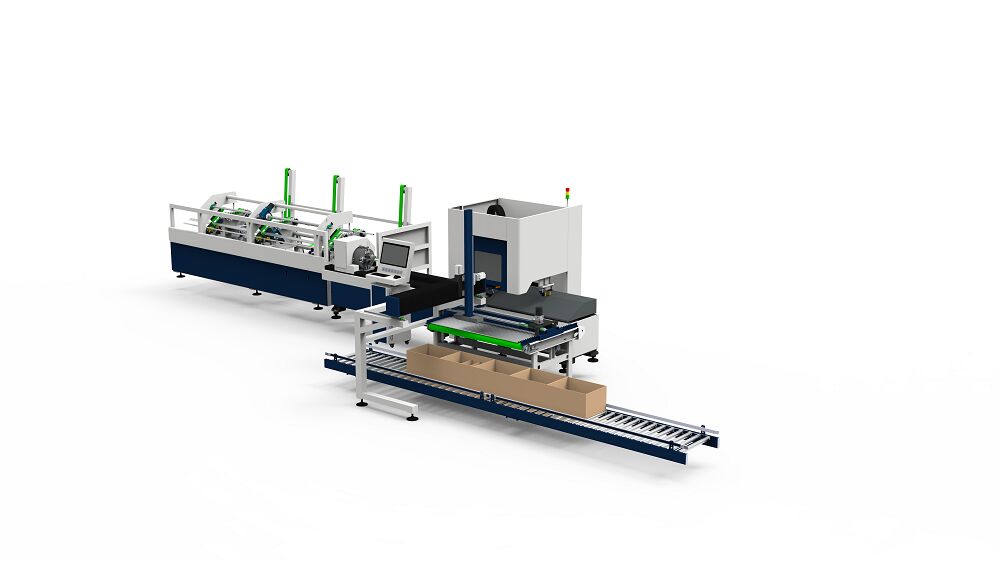

QH-GK Tube laser cutting machine Automatic packing and zero-tailing function

QH-GK Tube laser cutting machine Automatic packing and zero-tailing function

Brand Name:	QIHAI
Model Number:	QH-GS
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100 Set/month

Detail Information

Product Description

Detail Information

Place of Origin:

Foshan, Guangdong, China

Certification:

CE, ISO

Cnc Or Not:

Yes

Graphic Format Supported:

PLT,DXF,AI,BMP,DST

Cutting Thickness:

Depends,Materials,0-20mm,30mm Acrylic,0-15mm

Cooling Mode:

Water Cooling

Warranty:

1 Year

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Color:

White,according To Client,Required,Blue And White

Packaging Details:

wood

Highlight:

automatic tube laser cutting machine

fiber laser metal cutter with zero-tailing

laser cutting machine with automatic packing

Product Description

QH-GK Tube laser cutting machine Automatic packing Zero-tailing function

Description

The QH-GK Tube Laser Cutting Machine (taking model QH-GK-6012 as the reference standard) is a high-efficiency integrated tube processing equipment, featuring two core advantages: intelligent zero-tailing function and automatic tube packing with suction cups, integrated with high-precision laser cutting performance. It is specially designed for industries such as machinery manufacturing, construction pipe fittings, hardware production and pipe processing, providing material-saving, efficient, labor-saving and precise integrated processing solutions for round and square tube cutting, zero-tailing control, picking and packing scenarios. This machine breaks through the limitations of traditional tube processing that generates redundant tailings and relies on manual packing, integrating three key processes into one seamless workflow, greatly improving material utilization, automation level and production efficiency of tube processing.

Its dual core features are perfectly integrated in the processing workflow: first, the intelligent zero-tailing function works synchronously with the high-precision laser cutting system—equipped with advanced path optimization and positioning technology, it accurately calculates the tube length and cutting parameters in real time, maximizing the use of raw tube materials and eliminating redundant tailings (realizing zero waste of tube materials after cutting). This not only saves raw material costs but also avoids the trouble of manual handling and disposing of tailings.

Quick Detail

Core Highlights: Dual core functions of zero-tailing function (intelligent path optimization, real-time parameter calculation, eliminating redundant tailings to realize material saving, no manual tailing disposal required) and automatic tube packing with suction cups (suction cups pick up cut tubes and transport them to wooden cases for automatic packing, replacing manual operations, non-damaging to tube surfaces).

Key Specifications: Laser power range 1500W-20KW; round tube cutting diameter Φ15-500mm, square tube 15×15-500×500mm; tube length capacity 5500-6500mm.

Precision & Performance: ±0.03mm X/Y-axis positioning and repositioning accuracy, ensuring stable zero-tailing control and high-precision cutting; suction cup picking is reliable and non-damaging. Basic Parameters: Machine weight 1.7T, overall dimensions 8500×1380×2050mm; compatible with round and square tubes.

Application Scope: Machinery components, construction pipe fittings, hardware products and other scenarios requiring material-saving zero-tailing cutting, high-precision processing and automated packing integration.

Product Specifications

Model	QH-GK-6012
Cutting Diameter	Round Tube: Φ15-500mm Square Tube: 1515mm to 500500mm
Tube Length Capacity	5500-6500mm
Machine Weight	1.7T
Dimensions (LWH)	850013802050mm
Laser Power Range	1500W-20KW
Positioning Accuracy	±0.03mm (X/Y-axis)
Repositioning Accuracy	±0.03mm (X/Y-axis)
Compatible Tube Types	Round Tube / Square Tube
Function	Automatic packing, Zero-tailing

Advantage

Dual Core Functions Improve Efficiency and Save Costs: The combination of zero-tailing function and suction cup automatic packing optimizes the entire tube processing workflow. The zero-tailing function eliminates redundant tailings, improving material utilization by 10%-15% compared with traditional cutting machines and significantly reducing raw material costs; the suction cup automatic packing function cuts packing time by more than 50% compared with manual operations. The seamless connection between the two functions shortens the entire production cycle, reduces manual operation steps by 100%, and achieves dual benefits of cost saving and efficiency improvement.

Intelligent Zero-Tailing Realizes Material Saving and Reduces Labor Burden: The zero-tailing function adopts advanced intelligent control technology, which can automatically calculate the optimal cutting path according to the length of the raw tube and the required finished product size, completely eliminating redundant tailings. This not only avoids material waste but also saves the labor cost and time required for manual collection, sorting and disposal of tailings, reducing the overall labor burden of the production line and improving the cleanliness of the workshop.

Suction Cup Packing Ensures Safe and Damage-Free Storage and Transportation: The dedicated suction cup device adopts a soft, wear-resistant design that stably absorbs cut tubes without scratching their surfaces or causing deformation—especially suitable for precision tubes with high surface quality requirements. During transportation and packing, the suction cup maintains stable clamping force, avoiding tube falling or collision, ensuring the integrity of the tube surfaces and cutting edges, and facilitating subsequent storage and transportation. Meanwhile, automatic packing completely replaces manual heavy handling, reducing labor intensity and workplace safety risks.

Strong Versatility and Stable Performance: Both the zero-tailing function and suction cup automatic packing function are fully compatible with round tubes (Φ15-500mm) and square tubes (15×15-500×500mm), covering most common industrial tube specifications. The zero-tailing function can flexibly adapt to different tube lengths and finished product size requirements, without manual parameter adjustment, enhancing operational convenience. Equipped with ±0.03mm high positioning accuracy and 1500W-20KW adjustable laser power, the machine ensures stable cutting precision and zero-tailing effect for long-term operation. Its compact structure reduces workshop space occupation, and stable performance minimizes maintenance frequency and long-term operation costs, bringing long-term economic benefits to enterprises.
