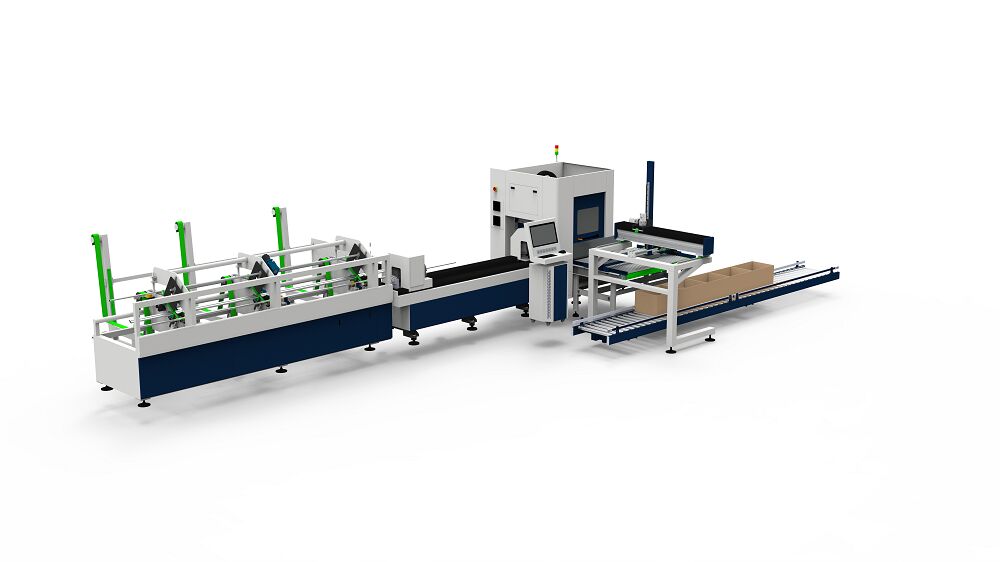

QH-GK Heavy Tube laser cutting machine Automatic packing 3 chucks

QH-GK Heavy Tube laser cutting machine Automatic packing 3 chucks

Brand Name:	QIHAI
Model Number:	QH-GS
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100 Set/month

Detail Information

Product Description

Detail Information

Place of Origin:

Foshan, Guangdong, China

Certification:

CE, ISO

Cnc Or Not:

Yes

Graphic Format Supported:

PLT,DXF,AI,BMP,DST

Cutting Thickness:

Depends,Materials,0-20mm,30mm Acrylic,0-15mm

Cooling Mode:

Water Cooling

Warranty:

1 Year

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Color:

White,according To Client,Required,Blue And White

Packaging Details:

wood

Highlight:

heavy tube laser cutting machine

automatic packing laser cutter

3 chucks fiber laser machine

Product Description

QH-GK Heavy Tube laser cutting machine Automatic packing 3 chucks

Description

The QH-GK Heavy Tube Laser Cutting Machine (taking model QH-GK-6012 as the reference standard) is a high-performance integrated heavy-duty tube processing equipment, featuring two core advantages: 3 chucks designed specifically for Heavy Tube cutting and automatic tube packing with suction cups, integrated with high-precision laser cutting performance. It is specially designed for industries such as heavy machinery manufacturing, large-scale construction pipe fittings, industrial pipe processing and hardware production, providing stable, efficient, labor-saving and precise integrated processing solutions for heavy round and square tube cutting, clamping, picking and packing scenarios. This machine breaks through the limitations of traditional single or dual-chuck tube processing that cannot stably clamp heavy tubes, and relies on manual packing, integrating three key processes (heavy tube clamping, high-precision cutting, automatic packing) into one seamless workflow, greatly improving the stability, automation level and production efficiency of heavy tube processing.

Quick Detail

Core Highlights: Dual core functions of 3 chucks for Heavy Tube cutting (stable clamping for heavy round/square tubes, avoiding displacement/vibration during cutting, ensuring processing stability and precision) and automatic tube packing with suction cups (suction cups pick up cut heavy tubes and transport them to wooden cases for automatic packing, replacing manual heavy handling, non-damaging to tube surfaces).

Key Specifications: Laser power range 1500W-20KW; round tube cutting diameter Φ15-500mm, square tube 15×15-500×500mm; tube length capacity 5500-6500mm (for medium and long heavy tubes). Precision & Performance: ±0.03mm X/Y-axis positioning and repositioning accuracy, matched with 3-chuck stable clamping to ensure high-precision cutting; suction cup picking is reliable, stable and suitable for heavy tube handling.

Application Scope: Heavy machinery components, large-scale construction pipe fittings, industrial heavy pipes and other scenarios requiring stable 3-chuck heavy tube cutting, high-precision processing and automated packing integration.

Product Specifications

Model	QH-GK-6012
Cutting Diameter	Round Tube: Φ15-500mm Square Tube: 1515mm to 500500mm
Tube Length Capacity	5500-6500mm
Machine Weight	1.7T
Dimensions (LWH)	850013802050mm
Laser Power Range	1500W-20KW
Positioning Accuracy	±0.03mm (X/Y-axis)
Repositioning Accuracy	±0.03mm (X/Y-axis)
Compatible Tube Types	Round Tube / Square Tube
Function	Automatic packing, 3 chucks for heavy tube

Advantage

Dual Core Functions Improve Heavy Tube Processing Efficiency and Stability: The combination of 3 chucks for heavy tube cutting and suction cup automatic packing optimizes the entire heavy tube processing workflow. The 3-chuck system provides stable clamping, eliminating downtime caused by tube displacement or vibration during cutting, improving processing continuity and efficiency; the suction cup automatic packing function replaces manual heavy handling (which requires multiple workers and is time-consuming), cutting packing time by more than 50% compared with manual operations. The seamless connection between the two functions shortens the entire production cycle, reduces manual operation steps by 100%, and achieves dual benefits of stability improvement and efficiency enhancement for heavy tube processing.

3 Chucks Ensure Stable Clamping and High-Precision Cutting for Heavy Tubes: Unlike single or dual-chuck machines that have insufficient clamping force for heavy tubes (easily causing displacement and cutting defects), the 3-chuck system distributes clamping force evenly on the heavy tube surface, firmly fixing the tube during cutting. This not only avoids cutting deviations, burrs or uneven edges caused by tube movement, but also ensures consistent cutting precision (±0.03mm positioning accuracy) for each heavy tube, improving the qualification rate of finished products. The 3-chuck design is also compatible with various heavy tube specifications (Φ15-500mm round tubes, 15×15-500×500mm square tubes), adapting to diverse heavy tube processing needs.

Suction Cup Packing Ensures Safe, Efficient and Damage-Free Handling of Heavy Tubes: The dedicated suction cup device is designed for heavy tube handling, with strong adsorption force to stably pick up cut heavy tubes without scratching their surfaces or causing deformation—especially suitable for precision heavy tubes with high surface quality requirements. During transportation and packing, the suction cup maintains stable clamping force, avoiding heavy tube falling or collision, ensuring the integrity of the tube surfaces and cutting edges, and reducing workplace safety risks caused by manual heavy handling. Automatic packing also eliminates labor intensity of manual carrying, saving labor costs for enterprises.

Strong Versatility and Cost-Efficiency for Heavy Tube Processing: Both the 3-chuck heavy tube cutting system and suction cup automatic packing function are fully compatible with round and square heavy tubes of various specifications (Φ15-500mm round tubes, 15×15-500×500mm square tubes), covering most common industrial heavy tube sizes. The 3-chuck system adapts to different heavy tube diameters and lengths without manual adjustment, enhancing operational convenience. Equipped with ±0.03mm high positioning accuracy and 1500W-20KW adjustable laser power, the machine ensures stable performance for long-term heavy tube processing. Its compact structure reduces workshop space occupation, and stable performance minimizes maintenance frequency and long-term operation costs, bringing long-term economic benefits to enterprises engaged in heavy tube processing.
