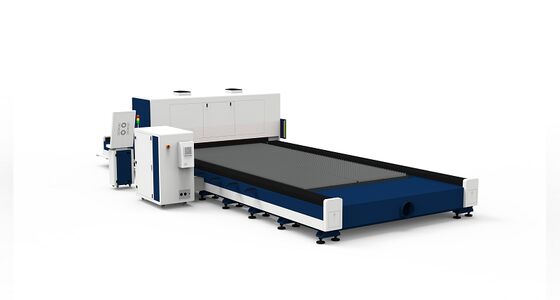

QH-8025FD High power Large format Sheet Metal Laser Cutting Machine 8000×2500mm for thick plate

QH-8025FD High power Large format Sheet Metal Laser Cutting Machine 8000×2500mm for thick plate

Brand Name:	QIHAI
Model Number:	QH - 8025FD
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100 set/month

Detail Information

Product Description

Detail Information

Place of Origin:

Foshan, Guangdong, China

Certification:

ISO, CE

Graphic Format Supported:

DXF,AI,BMP,PLT,DWG

Cnc Or Not:

Yes

Cutting Thickness:

Materials,0-30mm,Depends,7-8,1-12 M (carbon Steel)

Cooling Mode:

Water Cooling

Warranty:

1 Year

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Cooling System:

Water Cooling,CW5200 Waterchiller,Industry Water Chiller

Packaging Details:

wood, plastic

Highlight:

High power sheet metal laser cutter

Large format laser cutting machine 8000x2500mm

Thick plate fiber laser cutter

Product Description

QH-8025FD High power Large format Sheet Metal Laser Cutting Machine 8000×2500mm for thick plate

Description

The QH-8025FD is a high-performance professional sheet metal laser cutting machine specifically engineered for thick plate cutting, integrated with high power and large format advantages to provide efficient, precise and stable processing solutions for thick-gauge sheet metal. Designed for industries such as heavy machinery manufacturing, large-scale structural parts processing, high-strength thick plate fabrication and large-batch heavy-duty sheet metal production, it breaks through the limitations of traditional laser cutting equipment that struggles with thick plate processing—combining ultra-high laser power, a large processing area and a heavy-duty structure to meet the stringent requirements of high-standard thick plate cutting.

Its core advantage of thick plate cutting is fully supported by its powerful configuration: equipped with a high-power laser system with an adjustable range of 6000W-20KW, the machine can effortlessly cut thick plates of various materials (including high-strength steel, carbon steel and alloy steel) with smooth, burr-free edges, eliminating the need for secondary finishing.

Quick details

Core Highlight: Specialized for thick plate cutting, supported by 6000W-20KW high power and a heavy-duty structure to ensure smooth, precise cutting of thick-gauge materials, matched with a large 8000×2500mm processing area for large-size thick plate handling.

Key Specifications: Laser power range 6000W-20KW (optimized for thick plate cutting); processing area 8000×2500mm; maximum loading weight 12000kg (for heavy thick plates); machine weight 10000kg; overall dimensions 19680×3958×2560mm.

Application Scope: Heavy machinery components, large-scale structural parts, high-strength thick plates and other scenarios requiring high-power, high-precision thick plate cutting.

Technical Specifications

Processing Area	8000 * 2500mm
Maximum Loading Weight	12T
Machine Weight	15T
Overall Dimensions	19680×3958×2560mm
Laser Power Range	1500W - 20KW
X/Y-axis Positioning Accuracy	±0.03mm
X/Y-axis Repositioning Accuracy	±0.03mm
Maximum Linkage Acceleration	1.0G
Maximum Linkage Speed	100m/min
Transmission System	Double rack & pinion transmission with servo drive
Voltage Requirement	380V
Frequency	50Hz
Beveling Cutting	±45

QH-8025FD High power Large format Sheet Metal Laser Cutting Machine 8000×2500mm for thick plate 0

Advantage

High Power & Heavy-Duty Structure Enable Efficient Thick Plate Cutting: Unlike ordinary laser cutting machines with insufficient power for thick plates, the QH-8025FD’s 6000W-20KW high power can easily cut thick plates (up to dozens of millimeters thick) and high-hardness materials that are difficult to process with low-power equipment. The 10000kg heavy-duty structure and 12000kg maximum loading weight ensure stable operation without vibration, avoiding cutting defects (such as burrs, uneven edges) caused by material movement, and improving processing efficiency by 40% compared with traditional thick plate cutting methods.

Large Format & High Precision Ensure Quality for Large-Size Thick Plates: The 8000×2500mm large processing area allows one-time cutting of large-size thick plates, eliminating the need for splicing and reducing precision errors. The ±0.03mm positioning and repositioning accuracy, combined with the stable double rack & pinion transmission, ensures consistent cutting precision across the entire thick plate surface—critical for engineering scenarios where thick plate joint precision directly affects structural strength and safety, improving the qualification rate of finished products.

Versatile Adaptability to Various Thick Plate Specifications: The machine’s thick plate cutting function is fully compatible with different thick-gauge materials and sizes, from medium-thick to extra-thick plates, and matches the 8000×2500mm large format to cover most common industrial thick plate specifications. The adjustable 6000W-20KW laser power can be flexibly adjusted according to plate thickness and material, avoiding energy waste and ensuring optimal cutting results for each thickness, reducing the need for multiple specialized thick plate processing equipment.

High-Speed Transmission Reduces Thick Plate Processing Cycle: Equipped with 100m/min maximum linkage speed and 1.0G maximum linkage acceleration, the machine achieves high-speed cutting even for thick plates, shortening the processing cycle of each large-size thick plate workpiece. The synergy between high power (fast cutting speed for thick materials) and high-speed transmission greatly improves production efficiency, making it ideal for large-batch thick plate orders. Meanwhile, the stable power supply (380V/50Hz) and heavy-duty structure ensure long-term continuous operation, minimizing downtime and further reducing production costs.
