| Brand Name: | Qihai |
| Model Number: | QH-6024GZ |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets/month |

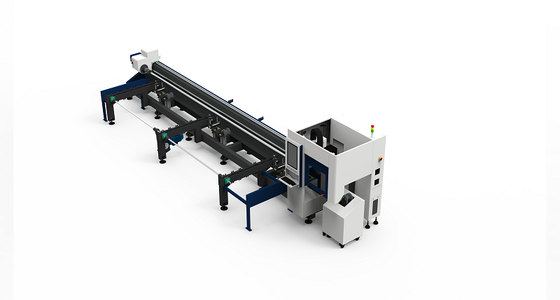

The QH-6024GZ is a CNC tube laser cutting system configured for 6m tube lengths and up to 240mm clamping capacity, built for end-preparation and profile cutting of metallic tubular workpieces.
The QH-6024GZ clamps round tubes from Φ10 mm - Φ240 mm and square tubes from 10 * 10 mm - 240 * 240 mm, with a maximum supported tube length of 6m. The machine accepts fiber laser sources in the 3000W - 20000W range, covering carbon steel, stainless steel and aluminum alloy tube at wall thicknesses from 5-12mm.
The zero-tailing function, combined with a removable head and cutting-head avoidance, positions a holder for the final tube section so it is cut without falling or being scrapped, maximising material utilisation on every bar.
Linear positioning and repositioning accuracy on both X and Y axes is held to +/-0.03mm, supporting dimensional repeatability across production batches. The control system is BOCHU and the laser source is MAX, with water cooling for stable thermal performance during long runs.
| Model | QH-6024GZ |
| Tube Length | 6m |
| Chuck Diameter | 240 mm |
| Round Tube Range | Φ10 mm - Φ240 mm |
| Square Tube Range | 10 * 10 mm - 240 * 240 mm |
| Laser Power Range | 3000W - 20000W |
| X/Y Positioning Accuracy | ±0.03 mm |
| X/Y Repositioning Accuracy | ±0.03 mm |
| Compatible Tube Profiles | Round / Square |
| Control System | BOCHU |
| Laser Source | MAX |
| Cooling Mode | Water Cooling |
| Output Handling | Section collection station |
| Machine Weight | To be confirmed |
| Machine Dimensions (L * W * H) | To be confirmed |
The QH-6024GZ is configured around the zero tailing cutting requirement, so tube fabrication steps that are normally handled by separate equipment or additional handling are consolidated into one machine cycle.
The 6m tube bed and 240mm chuck cover standard structural, chassis and fluid-transfer tube sizes. The 3000W - 20000W power window lets process engineers match power to material and wall thickness, from thin-wall stainless where heat input must be limited to thicker carbon steel where cut speed and pierce time dominate.
Positioning accuracy of +/-0.03mm on X and Y axes keeps bevel geometry and cut length repeatable across batches, and the 240mm clamping capacity supports round and square profiles within the stated range.
