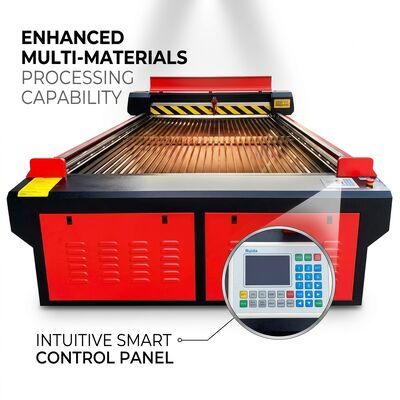

QH 1325D Dual Head CO2 Laser Cutting Machine 150W 1300x2500mm Large Format with Pass Through Doors

QH 1325D Dual Head CO2 Laser Cutting Machine 150W 1300x2500mm

The QH 1325D is a large-format dual head CO2 laser cutting machine built on a full 1300x2500mm gantry bed. Two independent laser heads share the same gantry and can run in synchronous mode for doubled output or in mirror mode to process two identical parts in a single pass. The 150W CO2 tube delivers the energy reserve needed for thick acrylic and dense hardwood, while the 10.6um wavelength is absorbed efficiently by all non-metallic materials, keeping cut edges clean and engraving crisp.

Key Advantages

• Dual Head Synchronous Output - two heads cut or engrave the same layout at the same time, effectively doubling batch throughput on identical jobs.
• Mirror Cutting Mode - left and right heads process mirrored parts simultaneously, ideal for paired signage and symmetrical furniture components.
• 1300x2500mm Twin Gantry Bed - full 1300mm wide panels and material up to 2500mm long are processed in one pass, no tiling and no joining.
• 150W CO2 Tube with Power Reserve - handles 15-20mm acrylic and dense wood at production speed with stable beam quality.
• Pass-Through Doors - front and rear openings allow extra-long material to feed through for continuous processing.
• Honeycomb and Knife Dual Table - quick-switch table options: honeycomb for fine engraving, knife table for rigid sheet and heavy panels.
• Taiwan Linear Guide Rail - high-rigidity linear rails keep the gantry stable across the full 2.5m travel.
• Ruida RD6442G Control System - standalone DSP controller with USB and offline file storage, familiar workflow for operators.
• Industrial Chiller Cooling - dedicated water chiller maintains stable tube temperature for long continuous shifts.
• +/-0.01mm Resetting Accuracy - repeatable positioning supports multi-pass production and repeat orders.

Applications

Large format advertising signage, acrylic display and light box fabrication, furniture and panel parts, craft and gift production, packaging prototypes, and paired-part batch manufacturing.

Materials

Acrylic, MDF, plywood, solid wood, leather, paper, foam, rubber, glass (engraving), and other non-metallic materials.

Service

CE and ISO certified. 1 year machine warranty, CO2 laser tube 6-9 months depending on power. Factory training video, remote commissioning support, and spare parts supply available. MOQ 1 set, delivery 15-20 days.
