| Brand Name: | QIHAI |
| Model Number: | QH-1390C |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 500 Set/month |

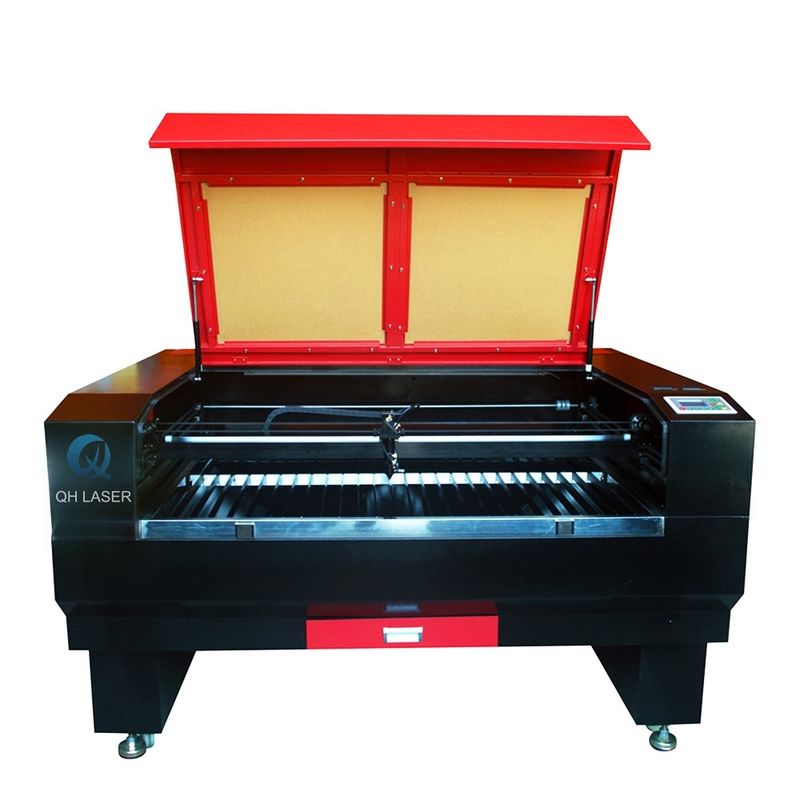

QH-1390C Single Head CO2 Laser Cutting Machine
Description
The QH-1390C is a purpose-built CO₂ Laser Cutting Machine optimized for high-precision processing of non-metallic materials, leveraging the 10.6μm wavelength of CO₂ lasers—perfect for industries like advertising signage, craft manufacturing, acrylic fabrication, and packaging. It offers flexible laser tube power options (80W/100W/120W/130W/150W) with a 6-9 month warranty (varies by power), tailored to different non-metallic cutting needs: the 100W model cuts 10-15mm acrylic, while the 130W model handles 15-20mm acrylic smoothly, with edge gloss and no charring.
Quick Detail
Core CO₂ Laser Traits: 10.6μm wavelength (ideal for non-metallics); 80W-150W laser tubes (6-9 month warranty); 100W cuts 10-15mm acrylic, 130W cuts 15-20mm acrylic.
Key Specs: 1300×900mm engraving area + pass-through doors (long materials); 0.025mm resolution, ±0.01mm reset accuracy; 0-18000mm/min cutting speed, 0-64000mm/min engraving speed.
CO₂-Optimized Setup: Imported focus lens + Taiwan linear rails; Ruida control (supports major design software); industrial chiller (CO₂ tube cooling) + exhaust fan (fume removal).
Technical Parameter
| Model | QH-1390C |
| Engraving Area | 1300x900mm(x 1300.Y 900) |
| Machine size | 1900x1500x1120mm |
| Cutting Speed | 0-18000mm/min |
| Engraving speed | 0-64000mm/min(stepless speed regulating) |
| Laser tube power | 80w 100w 120w 130w 150w option |
| Warranty laser tube | Warranty 6-9month for different power |
| Laser wave length | 10.6um |
| Resolution ratio | 0.025mm |
| Minimum shaping character | Chinese character 2mm/ letter 1mm |
| Resetting positioning accuracy | ±0.01mm |
| Voltage | Ac220v±10%,50HZ/60HZ |
| Operating Temperature | 0℃-45℃ |
| Operating humidity | 5%-95% |
| Graphic Format Supported | BMP,HPGL (PLT), DXF, G-CODE, DST,AutoCAD, CorelDraw, CAD CAM, AI, Photoshop |
| Software supported | Coreldraw,AutoCAD,Photoshop.llustrator etc |
| Lens | Reflect lens(3pcs)+import focus lens(1pcs) |
| Guide Rail | High quality taiwan linear guiderail |
| Driver Type | Leadshine stepmotor |
| Cutting table | Aluminium slot/honeycomb table option |
| Cooling sytemI | ndustrial chiller |
| Software | Ruida control system |
| Opearate System | Win98/Win2000/WinXP/Win 7/vista |
| Interface | LCD screen with USB interface |
| Max Cutting thickness | (100w cut acrylic 10-15mm, 130w cut acrylic 15-20mm) |
| Pass through doors | Allow to cut extremely long materials |
| Assistant equipment | Exhaust-fan,air pump,industry chiller |
| Configuration | Rotary and up and down |
| Produce time | 3-5days |
| CBM/GW | 3.5M3/300KG |
Advantage
CO₂ Laser’s Non-Metallic Processing Superiority: The 10.6μm wavelength is highly absorbed by non-metals (acrylic, wood, leather, paper), enabling cleaner, burr-free cuts with glossy edges—unlike fiber lasers (poor for non-metallics). For example, the 130W model cuts 15-20mm acrylic without charring, eliminating secondary polishing and reducing processing time by 25%-35%, making it ideal for high-quality acrylic signage.
Stable CO₂ Laser System for Long-Term Reliability: Tailored for CO₂ laser operation, the industrial chiller maintains optimal temperature for the laser tube, extending its lifespan to match the 6-9 month warranty (avoids premature tube failure from overheating). Paired with Taiwan linear guide rails and Leadshine steppers, it delivers 0.025mm resolution—capable of engraving 2mm Chinese characters and 1mm letters with sharp details, ensuring consistent precision across small-batch to medium-volume tasks.
Flexibility for Diverse CO₂ Laser Applications: Pass-through doors solve a key non-metallic processing pain point—cutting extra-long materials (e.g., 3m acrylic strips) that exceed the 1300mm length. The optional aluminum slot/honeycomb table adapts to different materials: honeycomb for delicate engraving (paper, leather) to prevent damage, aluminum slot for thick cutting (15-20mm acrylic) for stable support. Compatibility with multiple design software also streamlines workflow, from design to cutting/engraving.
