| Brand Name: | QiHai |
| Model Number: | 6060J |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 set/month |

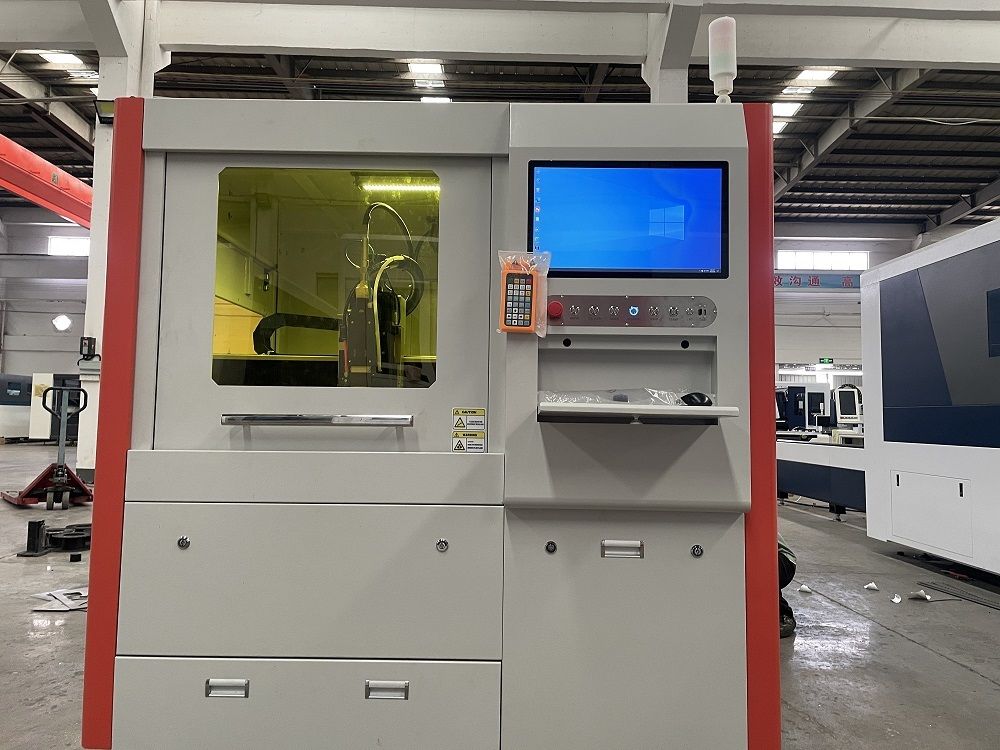

Core Traits: High-speed (40m/min max linkage speed) + precision (±0.03mm positioning accuracy); screw guideway transmission for stable cuts.
Key Specs: 600×600mm processing area, 60kg max loading; 1500W/3000W selectable laser power; 1770×1650×1800mm compact size.
Application Fit: Ideal for precision electronic parts/small hardware; 380V/50Hz universal power, suits small workshops.
Technical Parameters
| Specification | Value |
|---|---|
| Processing Area | 600 * 600mm |
| Maximum Loading Weight | 60kg |
| Machine Weight | 1200kg |
| Overall Dimensions | 1770 * 1650 * 1800mm |
| Laser Power Range | 1500W/3000W |
| X/Y-axis Positioning Accuracy | ±0.03mm |
| X/Y-axis Repositioning Accuracy | ±0.03mm |
| Maximum Linkage Acceleration | 0.8G |
| Maximum Linkage Speed | 40m/min |
| Transmission System | Screw guideway transmission |
| Voltage Requirement | 380V |
| Frequency | 50Hz |
Superior High-speed Precision: The combination of 40m/min maximum linkage speed (0.8G acceleration) and ±0.03mm X/Y-axis positioning/repositioning accuracy ensures fast processing without compromising cut quality—critical for manufacturing high-precision small components (e.g., electronic connectors, mini hardware parts).
Stable Screw Guideway Transmission: Unlike traditional rack & pinion systems, the screw guideway transmission minimizes vibration during high-speed operation, reducing cut errors and extending the machine’s service life, while also simplifying routine maintenance.
Compact & Space-Efficient Design: With overall dimensions of 1770×1650×1800mm and 1200kg weight, it occupies minimal workshop space, making it perfect for small-scale production facilities or workshops with limited area, without sacrificing processing capabilities.
Flexible Power Adaptation: The 1500W/3000W selectable laser power allows users to match power to material thickness (e.g., 1500W for thin sheets, 3000W for thicker materials), optimizing energy consumption and cutting efficiency for diverse small-part processing needs.
