| Brand Name: | QiHai |
| Model Number: | 6060J |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 set/month |

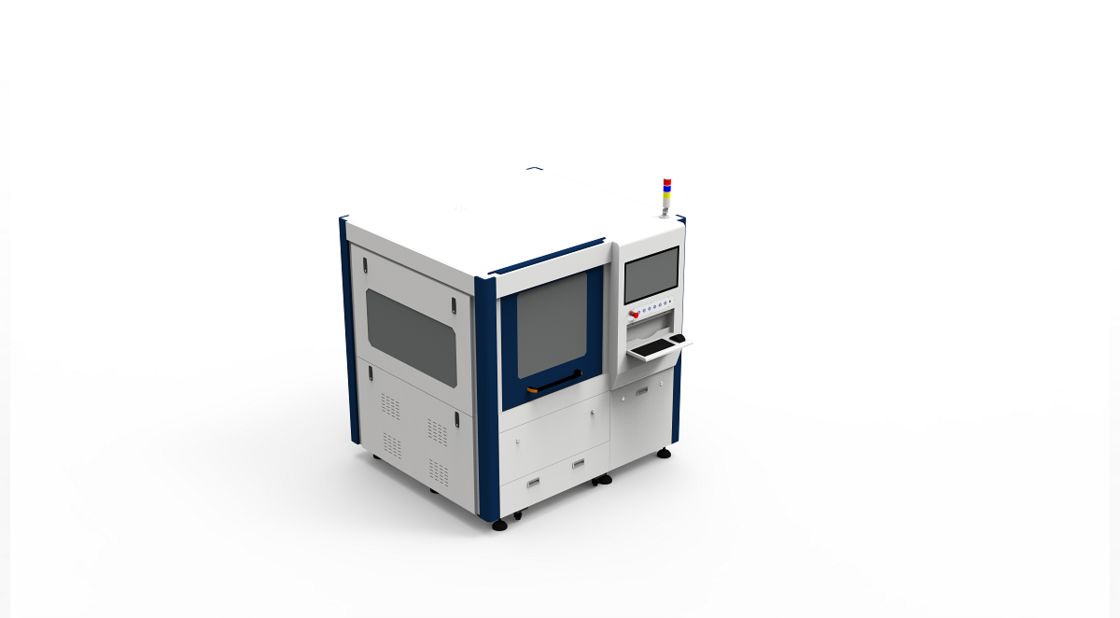

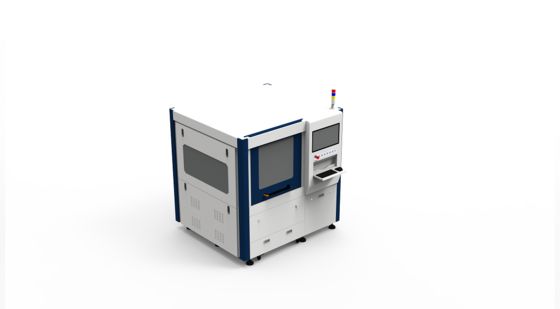

Ultra-High Accuracy & Micro-Feature Focus: ±0.03mm dual-axis accuracy (positioning/repositioning); specialized for 0.2mm-slot micro-cutting; screw guideway transmission eliminates vibration for consistent precision.
Cutting Thickness Versatility: Covers 0.1mm (thin foils) to 10mm (thick metals) with 1500W/3000W power; adapts to carbon steel, stainless steel, aluminum, and non-ferrous metals.
Key Specs: 600×600mm processing area, 60kg max loading, 40m/min linkage speed; compact 1770×1650×1800mm size for precision workshops.
Technical Parameters
| Specification | Value |
|---|---|
| Processing Area | 600 * 600mm |
| Maximum Loading Weight | 60kg |
| Machine Weight | 1200kg |
| Overall Dimensions | 1770 * 1650 * 1800mm |
| Laser Power Range | 1500W/3000W |
| X/Y-axis Positioning Accuracy | ±0.03mm |
| X/Y-axis Repositioning Accuracy | ±0.03mm |
| Maximum Linkage Acceleration | 0.8G |
| Maximum Linkage Speed | 40m/min |
| Transmission System | Screw guideway transmission |
| Voltage Requirement | 380V |
| Frequency | 50Hz |
Unmatched Precision for Micro-Features & All Thicknesses: The ±0.03mm dual-axis accuracy, paired with screw guideway transmission (low backlash, high stability), ensures 0.2mm slots and other micro-features stay within tolerance—even when cutting 0.1mm thin materials (prone to deformation) or 10mm thick metals (needing consistent depth control). This eliminates post-cut adjustment and reduces scrap rates by 25%-35% compared to standard laser cutters.
Thickness Adaptability Without Precision Loss: Unlike machines that sacrifice accuracy for thickness range, the QH-6060J’s 1500W/3000W power tuning and screw-driven motion maintain ±0.03mm precision across its 0.1mm-10mm thickness spectrum. For example, it cuts 0.1mm stainless steel foils for electronics with no warping, and 10mm aluminum brackets for medical devices with uniform edge quality—one machine replaces multiple specialized tools.
Compact Stability for Precision-Centric Spaces: Its 1770×1650×1800mm compact footprint fits small labs or precision workshops, while the 1200kg sturdy frame dampens external vibrations (a common accuracy disruptor). Combined with screw guideway transmission, this ensures consistent 0.2mm-slot cutting and ±0.03mm accuracy even in space-constrained environments, making it a cost-effective choice for high-tolerance small-batch production.
