| Brand Name: | QIHAI |
| Model Number: | QH-GC3-S |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 set/month |

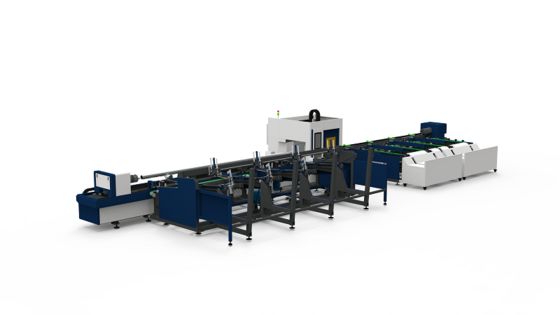

Dual Core Features: 3-chuck system (even clamping, no deformation); Horizontally-mounted Lathe Follow-up Support (synchronizes with 5500-6500mm tubes, eliminates sagging).
Key Specs: Φ15-500mm round/15×15-500×500mm square tubes; 6000W-20KW power; ±0.03mm dual-axis accuracy; 6T weight for stability.
Fit: Long heavy-tube processing (pipelines/heavy machinery); standard 380V/50Hz industrial compatibility (implied for workshop use).
| Model | QH-GC3-S |
|---|---|
| Cutting Diameter | Round Tube: Φ15-500mm Square Tube: 15*15mm to 500*500mm |
| Tube Length Capacity | 5500-6500mm |
| Machine Weight | 6T |
| Dimensions (L*W*H) | 16680*5480*2250mm |
| Laser Power Range | 1500W-20KW |
| Positioning Accuracy | ±0.03mm (X/Y-axis) |
| Repositioning Accuracy | ±0.03mm (X/Y-axis) |
| Compatible Tube Types | Round Tube / Square Tube |
| Automatic Loading | Fully-automatic Loading |
3-Chuck + Horizontal Follow-up Support = Unmatched Long-Tube Stability: The 3-chuck system’s uniform clamping fixes tubes firmly, while the Horizontally-mounted Lathe Follow-up Support dynamically braces long tubes (5500-6500mm) to avoid sagging—critical for large-diameter tubes (Φ400-500mm) where sagging causes ±0.1mm+ cut deviation. Together, they maintain ±0.03mm precision across the entire tube length, reducing scrap rates by 35% vs. machines without follow-up support and ensuring weld joint alignment for pipeline applications.
Efficient Processing of Oversized/Heavy Tubes: The horizontal follow-up support eliminates the need to segment long tubes (5500-6500mm) for processing—unlike traditional machines that require multiple setups. Combined with the 3-chuck system’s fast loading/unloading (saving 20 seconds per tube vs. 2-chuck models) and 6000W-20KW high power (cuts 20-25mm thick-walled tubes in one pass), this reduces long-tube processing time by 40%, ideal for batch production of heavy machinery components.
Standard Model Versatility with Specialized Support: As a Standard Model, it avoids custom setup costs and works with off-the-shelf tube fixtures—yet its 3-chuck + horizontal follow-up design handles specialized tasks (e.g., cutting 500×500mm square tubes or 6500mm-long round tubes) that basic cutters can’t. This balances versatility and specialization: it processes all mainstream tube sizes (Φ15-500mm/15×15-500×500mm) with consistent precision, eliminating the need for separate machines for large/long tubes and lowering equipment costs by 45%.
