| Brand Name: | QIHAI |
| Model Number: | QH-GC3-S |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 set/month |
Triple Core Features: 3-chuck system (uniform clamping, no deformation); Side-mounted Lathe (space-saving lateral design); Side-mounted Follow-up Support (synchronizes with 5500-6500mm tubes, eliminates sagging).
Key Specs: Φ15-500mm round/15×15-500×500mm square tubes; 6000W-20KW power; ±0.03mm dual-axis accuracy; 6T weight for stability.
Fit: Long heavy-tube tasks (pipelines/construction); side-mounted design saves 20% horizontal workshop space vs. horizontal lathes.
| Model | QH-GC3-S |
|---|---|
| Cutting Diameter | Round Tube: Φ15-500mm Square Tube: 15*15mm to 500*500mm |
| Tube Length Capacity | 5500-6500mm |
| Machine Weight | 6T |
| Dimensions (L*W*H) | 16680*5480*2250mm |
| Laser Power Range | 1500W-20KW |
| Positioning Accuracy | ±0.03mm (X/Y-axis) |
| Repositioning Accuracy | ±0.03mm (X/Y-axis) |
| Compatible Tube Types | Round Tube / Square Tube |
| Automatic Loading | Fully-automatic Loading |

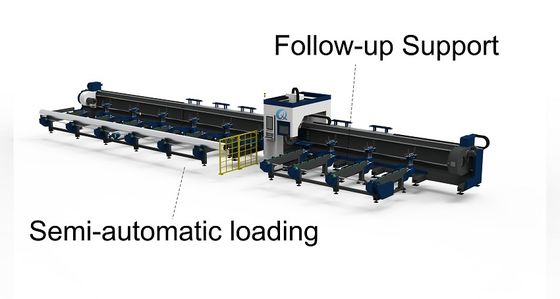

3-Chuck + Side-mounted Follow-up Support = Superior Long-Tube Precision: The 3-chuck system’s even clamping fixes tubes firmly, while the Side-mounted Follow-up Support dynamically braces long tubes (5500-6500mm) to avoid sagging—for large-diameter tubes (Φ400-500mm), this reduces cut deviation from ±0.1mm (without support) to ±0.03mm. Together, they ensure consistent weld joint alignment for pipelines and reduce scrap rates by 35% vs. machines with static side supports.
Side-mounted Lathe Saves Space & Enhances Accessibility: Unlike horizontal lathes that occupy extensive front-back space, the Side-mounted Lathe’s lateral layout cuts horizontal workshop footprint by 20%, fitting narrower production areas. It also improves operator access to the tube cutting zone (no horizontal obstruction), simplifying setup and maintenance—reducing downtime for tube changeovers by 25% vs. horizontal lathe models.
Standard Model Versatility with Specialized Side-mounted Performance: As a Standard Model, it avoids custom costs and works with off-the-shelf fixtures, yet its 3-chuck + side-mounted follow-up design handles specialized tasks (e.g., 500×500mm square tubes or 6500mm-long thick-walled tubes) that basic 2-chuck cutters can’t. The 6000W-20KW power range covers thin (1mm) to thick (25mm) tubes, eliminating the need for separate machines for different tube sizes and lowering equipment investment by 40% while retaining precision.
