| Brand Name: | QIHAI |
| Model Number: | QH-6020F |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 set/month |

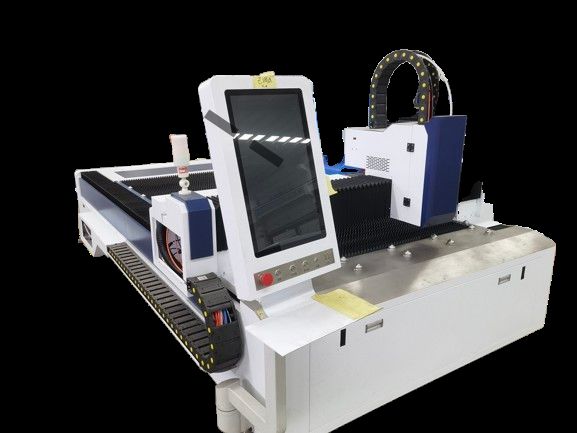

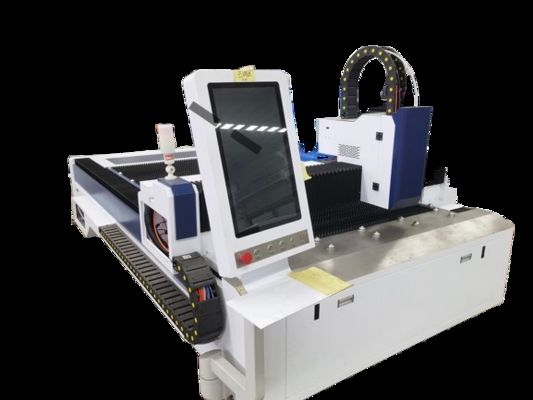

CypVision Core: ±0.02mm visual positioning accuracy; auto workpiece alignment & contour recognition; dynamic error compensation for consistent precision.
Key Specs: 6000×2000mm area (1000kg max loading), 1500W-20KW power (0.5-25mm thickness), 100m/min speed (1.0G acceleration).
Efficiency: CypVision cuts manual alignment time by 70%; double rack & pinion drive boosts large-sheet processing efficiency by 30%.
Fit: Heavy machinery/steel structures; 380V/50Hz for industrial workshops.
| Processing Area | 6000 * 2000mm |
| Maximum Loading Weight | 1000kg |
| Machine Weight | 3600kg |
| Overall Dimensions | 8000×2760×1900mm |
| Laser Power Range | 1500W - 20KW |
| X/Y-axis Positioning Accuracy | ±0.03mm |
| X/Y-axis Repositioning Accuracy | ±0.03mm |
| Maximum Linkage Acceleration | 1.0G |
| Maximum Linkage Speed | 100m/min |
| Transmission System | Double rack & pinion transmission with servo drive |
| Voltage Requirement | 380V |
| Frequency | 50Hz |
Advantage
CypVision-Driven Precision & Time Savings: The CypVision system’s automatic workpiece positioning (±0.02mm accuracy) eliminates 15-30 minutes of manual alignment per large sheet (e.g., 6m×2m steel plates), slashing setup time by 70%. Its dynamic error compensation also corrects minor sheet offsets in real time, ensuring ±0.03mm axis precision even for slightly deformed workpieces—reducing scrap rates by 40%-50%.
Intelligent Adaptability to Irregular Workpieces: Unlike standard cutters that struggle with non-standard or offset sheets, CypVision’s contour recognition identifies workpiece edges and adjusts cutting paths automatically. This enables seamless processing of irregular large parts (e.g., custom steel structure components) without pre-marked reference lines, expanding application scope while maintaining cutting consistency.
Synergy with High-Speed Large-Format Processing: CypVision’s fast image capture (0.1s per frame) pairs with the machine’s 100m/min maximum linkage speed and 1.0G acceleration—ensuring vision-guided adjustments don’t slow down production. For batch processing of large sheets, this combination cuts total cycle time by 30% vs. machines with manual alignment, ideal for high-volume industrial needs.
Stable Vision Performance Under Heavy Load: The 3600kg sturdy frame minimizes vibration that could disrupt visual detection, while the double rack & pinion servo transmission maintains smooth workpiece movement. This ensures CypVision’s positioning accuracy remains consistent even when handling 1000kg heavy thick plates, critical for heavy machinery components where precision directly impacts assembly fit.
