| Brand Name: | QIHAI |
| Model Number: | QH-6020F |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 set/month |

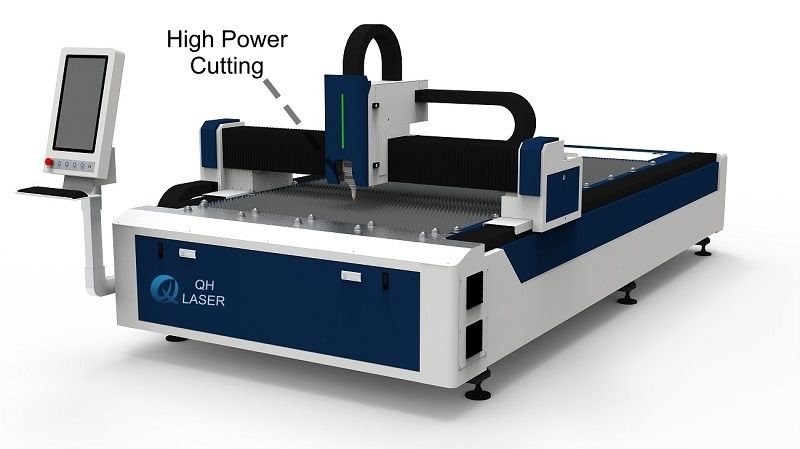

High Power Core: 6000W-20KW laser power for efficient thick-plate cutting (up to 30mm carbon steel/20mm stainless steel); no workpiece segmentation needed via 6000×2000mm area (1000kg max loading).
Key Specs: ±0.03mm axis precision, 100m/min speed (double rack & pinion servo drive), 3600kg stable frame, 8000×2760×1900mm dimensions.
Efficiency & Fit: Cuts thick plates 50% faster than low-power models; ideal for heavy machinery/steel structures; 380V/50Hz industrial use.
| Processing Area | 6000 * 2000mm |
| Maximum Loading Weight | 1000kg |
| Machine Weight | 3600kg |
| Overall Dimensions | 8000×2760×1900mm |
| Laser Power Range | 6000W - 20KW |
| X/Y-axis Positioning Accuracy | ±0.03mm |
| X/Y-axis Repositioning Accuracy | ±0.03mm |
| Maximum Linkage Acceleration | 1.0G |
| Maximum Linkage Speed | 100m/min |
| Transmission System | Double rack & pinion transmission with servo drive |
| Voltage Requirement | 380V |
| Frequency | 50Hz |
Advantage
Superior Thick-Plate Processing Capability: The 6000W-20KW high power range directly addresses thick metal cutting needs—it can seamlessly cut 15-30mm carbon steel, 10-20mm stainless steel, and 8-15mm aluminum, which are challenging for 3000W or lower-power machines. This eliminates the need for secondary thermal cutting (e.g., plasma cutting) for thick plates, reducing material waste by 20% and ensuring cleaner, more precise cut edges.
High Power-Driven Efficiency: High power significantly boosts cutting speed for thick workpieces—for example, cutting 20mm carbon steel at 8-10m/min (vs. 3-5m/min with 3000W machines) and 25mm carbon steel at 5-7m/min. Combined with 100m/min maximum linkage speed for positioning, it shortens the total processing cycle of large thick parts by 40%-50%, critical for meeting high-volume heavy-duty production deadlines.
High Power & Precision Coexistence: Unlike some high-power machines that sacrifice precision for power, the QH-6020F’s double rack & pinion servo transmission maintains ±0.03mm X/Y-axis accuracy even during high-power thick-plate cutting. This ensures consistent cut quality (e.g., uniform edge straightness) for thick precision components (e.g., heavy machinery frames), avoiding post-cut grinding and reducing secondary processing time by 35%+.
