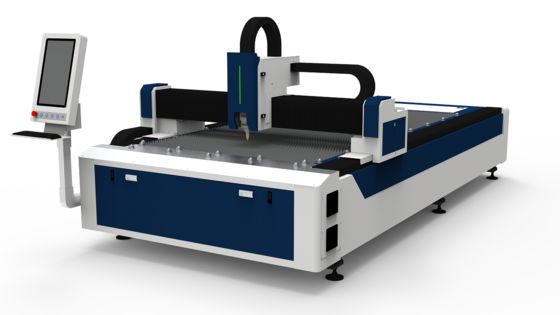

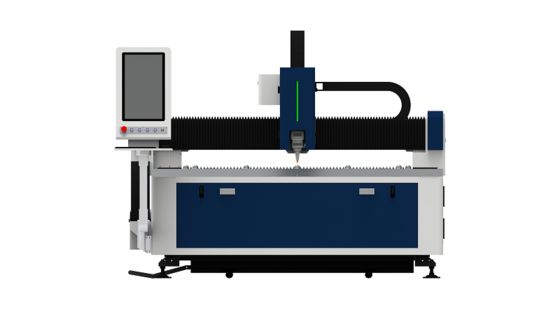

QH - 8020F High Speed Single Platform Open Type Sheet Metal Laser Cutting Machine

Name: QH - 8020F High Speed Single Platform Open Type Sheet Metal Laser Cutting Machine
Brand: Qihai Laser Tech. Co., Ltd.
SKU: QH-8020F
Availability: InStock

Brand Name:	QIHAI
Model Number:	QH-8020F
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	90set/mon

Detail Information

Product Description

Detail Information

Place of Origin:

Foshan, Guangdong, China

Certification:

CE, ISO

Product:

Sheet Metal Laser Cutting Machine

Processing Area:

8000 * 2000mm

Laser Power:

1500W-20000W

X/Y-axis Positioning Accuracy:

0.03mm

Frequency:

50Hz

Voltage:

380V

Laser Generator Classification:

Fiber Laser Generator

Transmission:

Double Rack&pinion Transmission And Servo Drive

Working Environment:

0-40℃, Humidity ≤80%

Graphic Format:

PLT, DXF

Packaging Details:

wooden box

Highlight:

high speed tube laser cutting machine

high speed fiber laser metal cutting machine

380v tube laser cutting machine

Product Description

QH - 8020F High Speed Single Platform Open Type Sheet Metal Laser Cutting Machine

Description

The QH-8020F is a high-performance sheet metal processing solution defined by its High Speed capability (1.5G maximum linkage acceleration) and Single Platform Open Type design—engineered for industries like heavy machinery parts manufacturing, steel structure processing, and thick-plate component production that demand both rapid processing and easy workpiece handling.

Its standout 1.5G maximum linkage acceleration (paired with 100m/min maximum linkage speed) drastically reduces non-cutting time (e.g., rapid traversal between cutting paths), while the double rack & pinion transmission with servo drive ensures this high speed does not compromise precision—maintaining ±0.03mm X/Y-axis positioning and repositioning accuracy even during fast-paced thick-plate cutting. The open single-platform structure provides unobstructed access to the 8000×2000mm processing area (supporting up to 2600kg maximum loading weight), enabling quick crane-assisted loading/unloading of heavy sheets (e.g., 30mm carbon steel plates) without space constraints.

Quick Detail

High Speed Core: 1.5G maximum linkage acceleration (cuts non-cutting time by 40%-50%) + 100m/min speed; double rack & pinion drive maintains ±0.03mm precision at high speed.

Key Specs: 8000×2000mm processing area (2600kg max loading), 6000W-20KW power (thick-plate single-pass cutting), open single platform for easy crane handling.

Fit: High-efficiency heavy machinery/steel structure production; 380V/50Hz industrial use.

Technical Specifications

Processing Area	8000 * 2000mm
Maximum Loading Weight	2600kg
Machine Weight	3800kg
Overall Dimensions	11000 * 3260 * 1900mm
Laser Power Range	1500W - 20KW
X/Y-axis Positioning Accuracy	±0.03mm
X/Y-axis Repositioning Accuracy	±0.03mm
Maximum Linkage Acceleration	1.5G
Maximum Linkage Speed	100m/min
Transmission System	Double rack & pinion transmission with servo drive
Voltage Requirement	380V
Frequency	50Hz

Advantage

1.5G Acceleration Boosts Overall Productivity: The industry-leading 1.5G maximum linkage acceleration enables the laser head to rapidly transition between cutting segments—for example, reducing the total processing time of a 8m×2m steel plate with multiple cutouts by 35%-45% compared to machines with 1.0G acceleration. This is critical for high-volume production, where even small time savings per workpiece accumulate to significant daily output gains.

High Speed Without Precision Loss: Unlike low-end high-speed machines that sacrifice accuracy for speed, the QH-8020F’s double rack & pinion servo transmission stabilizes motion at 1.5G acceleration, retaining ±0.03mm X/Y-axis precision. This ensures fast cutting of thick, high-value components (e.g., heavy machinery frames) still meets strict tolerance requirements, eliminating rework caused by speed-induced errors.

Synergy of High Speed & Open Platform: The open single-platform design allows quick 2600kg workpiece loading/unloading (via crane), while the 1.5G acceleration minimizes in-machine processing time—creating a “fast load + fast cut” workflow. This reduces the total cycle time per workpiece by 30%-40% vs. enclosed machines (which have slower loading) or low-acceleration open machines (which have slower cutting).

High Power Supports High-Speed Thick-Plate Cutting: The 6000W-20KW laser power range matches the machine’s high-speed capability—high power ensures single-pass cutting of thick metals (e.g., 30mm carbon steel), while 1.5G acceleration avoids bottlenecks from slow head movement. This means the machine doesn’t waste power on waiting for the laser head to reposition, maximizing energy efficiency and throughput.
