| Brand Name: | QIHAI |
| Model Number: | QH-GC3-H |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 Set/month |

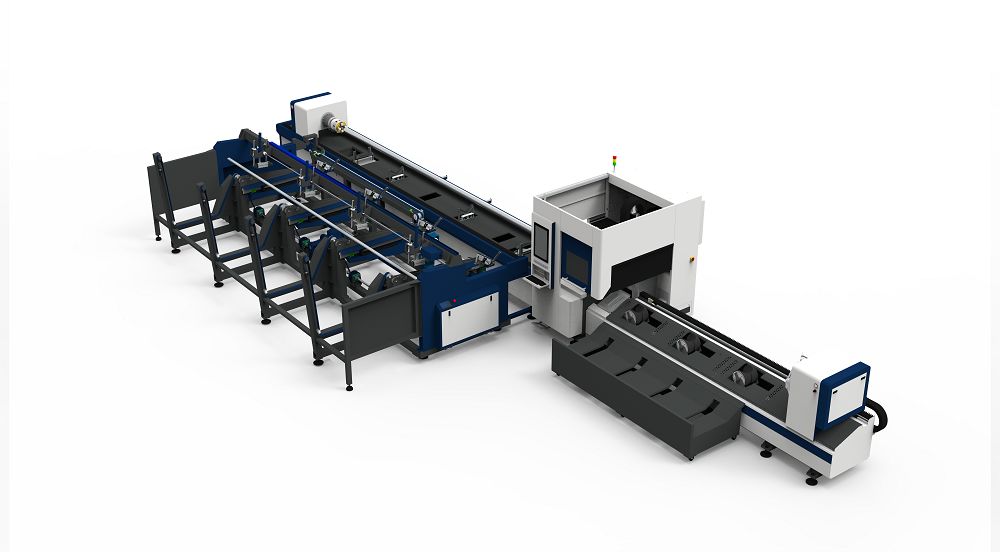

3-Chuck Heavy Duty Core: 3-Chuck clamping secures Φ15-580mm round/15×15-580×580mm square tubes; 20T frame supports 11500-12500mm long heavy tubes, no vibration during cutting.
High Speed Advantage: 1.5g maximum cutting acceleration + ±0.03mm axis precision—balances speed and accuracy for heavy tube processing.
Key Specs: 6000W-20KW laser power (thick-walled tube 适配), fully-automatic loading, compatible with round/square tubes.
Fit: Wind power (flange tubes), heavy machinery (hydraulic tubes); 22200×5350×2650mm industrial footprint.
| Model | QH-GC3-H |
|---|---|
| Cutting Diameter | Round Tube: Φ15-580mm Square Tube: 15*15mm to 580*580mm |
| Tube Length Capacity | 11500-12500mm |
| Machine Weight | 20T |
| Dimensions (L*W*H) | 22200*5350*2650mm |
| Laser Power Range | 6000W-20KW |
| Positioning Accuracy | ±0.03mm (X/Y-axis) |
| Repositioning Accuracy | ±0.03mm (X/Y-axis) |
| Compatible Tube Types | Round Tube / Square Tube |
| Maximum Cutting Speed | 1.5g |
3-Chuck Clamping Ensures Heavy Duty Stability: Unlike 2-chuck models that may shift when cutting thick-walled Φ580mm round tubes (e.g., 20mm-thick steel tubes), the 3-Chuck system distributes clamping force evenly across the tube’s length, maintaining ±0.03mm positioning accuracy. This eliminates post-cut correction for Heavy Duty tubes used in load-bearing structures (e.g., wind turbine towers), reducing rework rates by 50%-60%.
High Speed 1.5g Acceleration Boosts Heavy Tube Efficiency: For 12500mm-long square tubes (580×580mm), the 1.5g acceleration cuts traverse time between cutting points by 35% vs. standard heavy-duty tube cutters. Paired with 6000W-20KW laser power (handles thick walls up to 30mm), it completes a full set of holes/slots on a heavy tube in 8-10 minutes—halving the processing time of traditional mechanical cutting for batch production.
Heavy Duty Build + Fully-Automatic Loading Reduces Labor & Downtime: The 20T machine frame withstands long-term stress from heavy tube clamping, while the fully-automatic loading system eliminates manual lifting of 100kg+ tubes (a common bottleneck in Heavy Duty processing). This cuts loading/unloading time by 40% and reduces workplace injury risks, ensuring 24/7 continuous operation for high-volume heavy tube orders (e.g., 50+ 12m-long tubes per shift).
3-Chuck Versatility for Diverse Heavy Tubes: The 3-Chuck design adapts to both round (Φ15-580mm) and square (15×15-580×580mm) heavy tubes, avoiding the need for separate chuck replacements when switching tube types. Combined with High Speed acceleration, it maintains consistent cutting efficiency across tube shapes—critical for industries like construction that process mixed round/square heavy tubes for structural supports.
