QH-8025FD High power Large format Sheet Metal Laser Cutting Machine 8000×2500mm Beveling cutting

QH-8025FD High power Large format Sheet Metal Laser Cutting Machine 8000×2500mm Beveling cutting

Brand Name:	QIHAI
Model Number:	QH - 8025FD
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100 set/month

Detail Information

Product Description

Detail Information

Place of Origin:

Foshan, Guangdong, China

Certification:

ISO, CE

Graphic Format Supported:

DXF,AI,BMP,PLT,DWG

Cnc Or Not:

Yes

Cutting Thickness:

Materials,0-30mm,Depends,7-8,1-12 M (carbon Steel)

Cooling Mode:

Water Cooling

Warranty:

1 Year

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Cooling System:

Water Cooling,CW5200 Waterchiller,Industry Water Chiller

Packaging Details:

wood, plastic

Highlight:

High power sheet metal laser cutter

Large format laser cutting machine

Beveling fiber laser metal cutter

Product Description

QH-8025FD High power Large format Sheet Metal Laser Cutting Machine 8000×2500mm Beveling cutting

Description

The QH-8025FD is a high-performance professional sheet metal laser cutting machine, with high-precision Beveling Cutting (坡口切割) as its core highlight, integrated with high power and large format advantages. Specifically designed for industries such as heavy machinery manufacturing, large-scale structural parts processing, high-strength steel plate fabrication and large-batch sheet metal production, it provides efficient, precise and versatile cutting solutions for large-format, thick-gauge sheet metal cutting and beveling scenarios. This machine breaks through the limitations of traditional sheet metal cutting equipment that cannot complete high-precision beveling and large-format cutting in one pass, combining advanced beveling technology, ultra-high laser power and a large processing area to meet the stringent requirements of high-standard industrial sheet metal processing.

Its core advantage of Beveling Cutting is fully reflected in its ability to complete both straight cutting and multi-angle beveling (such as 45°, 60°, V-shaped, U-shaped and other custom bevels) in a single clamping process, without the need for secondary processing, which greatly improves processing efficiency and ensures the consistency of bevel angles and precision.

Quick details

Core Highlight: High-precision Beveling Cutting function, supporting one-pass straight cutting and multi-angle beveling (customizable angles) without secondary processing, matched with high power and large format for efficient integrated processing. Key Specifications: Laser power range 6000W-20KW; processing area 8000×2500mm; maximum loading weight 12000kg; machine weight 10000kg; overall dimensions 19680×3958×2560mm.

Application Scope: Heavy machinery components, large-scale structural parts, high-strength steel plates and other scenarios requiring high-precision beveling and large-format high-power cutting.

Technical Specifications

Processing Area	8000 * 2500mm
Maximum Loading Weight	12T
Machine Weight	15T
Overall Dimensions	19680×3958×2560mm
Laser Power Range	1500W - 20KW
X/Y-axis Positioning Accuracy	±0.03mm
X/Y-axis Repositioning Accuracy	±0.03mm
Maximum Linkage Acceleration	1.0G
Maximum Linkage Speed	100m/min
Transmission System	Double rack & pinion transmission with servo drive
Voltage Requirement	380V
Frequency	50Hz
Beveling Cutting	±45

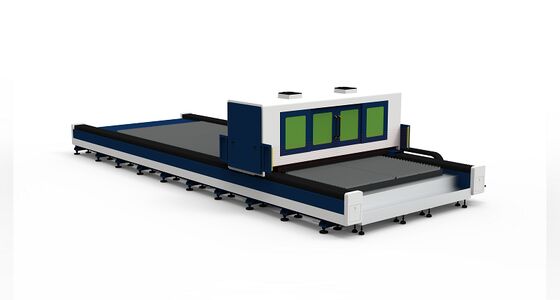

QH-8025FD High power Large format Sheet Metal Laser Cutting Machine 8000×2500mm Beveling cutting 0

Advantage

Beveling Cutting Realizes One-Pass Integrated Processing, Saves Time and Labor: Compared with traditional sheet metal cutting machines that require separate cutting and beveling processes (needing secondary clamping and processing), the QH-8025FD’s beveling cutting function completes both operations in a single clamping. This not only eliminates the precision error caused by secondary clamping (ensured by ±0.03mm positioning accuracy) but also reduces manual operation steps, cutting processing time by 40% or more. The smooth, burr-free bevel edges also eliminate the need for secondary polishing, further reducing labor costs and improving processing efficiency.

High-Precision Beveling Ensures Stable Joint Quality for Engineering Applications: The machine’s ±0.03mm positioning and repositioning accuracy, combined with the adjustable 6000W-20KW laser power, ensures that the bevel angle (adjustable according to engineering needs) and size are consistent across all large-format sheet metal workpieces. For scenarios such as sheet metal welding (where bevel precision directly affects weld joint strength and tightness), the QH-8025FD’s beveling cutting function avoids welding defects caused by uneven bevels, improving the qualification rate of finished products and ensuring compliance with strict engineering quality standards.

Beveling Cutting Compatible with High Power and Large Format, Strong Versatility: The beveling cutting function is fully adapted to the 8000×2500mm large format and 6000W-20KW high power, covering most common large-format sheet metal specifications in industrial production. Whether processing small-size precision bevels on large sheets or high-power thick-gauge bevels, the machine can flexibly adjust the laser power and bevel angle to meet diverse processing needs. The 12000kg maximum loading weight allows it to handle heavy large-format sheets, reducing the need for multiple specialized equipment and saving enterprise investment.

High-Speed and Stable Transmission Enhances Beveling Efficiency: Equipped with double rack & pinion transmission with servo drive, 100m/min maximum linkage speed and 1.0G maximum linkage acceleration, the machine can quickly complete large-format sheet metal beveling cutting while maintaining stability. The high-power laser (6000W-20KW) and high-speed transmission work synergistically, shortening the processing cycle of each large-format workpiece, which is especially suitable for large-batch orders requiring both high-precision beveling and efficient production. Meanwhile, the heavy-duty structure and stable power supply (380V/50Hz) ensure long-term continuous operation, minimizing downtime and further improving overall production efficiency.
