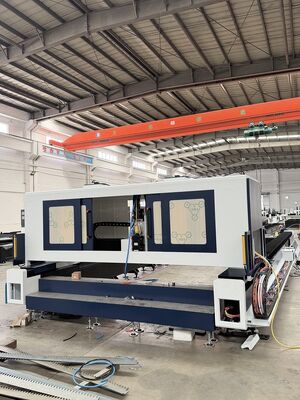

QH-8025FD High Speed Large format Sheet Metal Laser Cutting Machine 8000×2500mm

QH-8025FD High Speed Large format Sheet Metal Laser Cutting Machine 8000×2500mm

Brand Name:	QIHAI
Model Number:	QH - 8025FD
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100 set/month

Detail Information

Product Description

Detail Information

Place of Origin:

Foshan, Guangdong, China

Certification:

ISO, CE

Graphic Format Supported:

DXF,AI,BMP,PLT,DWG

Cnc Or Not:

Yes

Cutting Thickness:

Materials,0-30mm,Depends,7-8,1-12 M (carbon Steel)

Cooling Mode:

Water Cooling

Warranty:

1 Year

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Cooling System:

Water Cooling,CW5200 Waterchiller,Industry Water Chiller

Packaging Details:

wood, plastic

Highlight:

large format laser cutting machine

8000x2500mm metal laser cutter

high speed sheet metal cutter

Product Description

QH-8025FD High Speed Large format Sheet Metal Laser Cutting Machine 8000×2500mm

Description

The QH-8025FD is a high-performance professional sheet metal laser cutting machine, with High Speed cutting featuring 1.5G maximum linkage acceleration as its core highlight, integrated with large format and high power advantages to provide ultra-efficient, precise and stable processing solutions for large-format sheet metal. Designed for industries such as large-batch sheet metal production, heavy machinery manufacturing, large-scale structural parts processing and high-efficiency sheet metal fabrication, it breaks through the limitations of traditional laser cutting equipment with low acceleration and slow cutting speed—combining 1.5G high acceleration, ultra-high linkage speed, a large processing area and powerful laser performance to meet the stringent requirements of high-speed, high-precision large-format sheet metal processing.

Its core advantage of High Speed cutting with 1.5G acceleration is fully supported by its advanced configuration: the machine is equipped with a high-performance transmission and motion control system, achieving 1.5G maximum linkage acceleration and 100m/min maximum linkage speed, which significantly shortens the acceleration and deceleration time during cutting, improves the response speed of the cutting head, and realizes fast and smooth cutting of large-format sheet metals.

Quick details

Core Highlight: High Speed cutting with 1.5G maximum linkage acceleration, matched with 100m/min maximum linkage speed and double rack & pinion servo transmission to realize ultra-fast, stable cutting, combined with 8000×2500mm large format for efficient large-size sheet metal processing.

Key Specifications: Laser power range 6000W-20KW; processing area 8000×2500mm; maximum loading weight 12000kg; machine weight 10000kg; overall dimensions 19680×3958×2560mm.

Speed & Precision: 1.5G maximum linkage acceleration, 100m/min maximum linkage speed; ±0.03mm X/Y-axis positioning and repositioning accuracy; double rack & pinion servo transmission for stable, precise movement during high-speed cutting. Application Scope: Large-batch sheet metal production, heavy machinery components, large-scale structural parts and other scenarios requiring high-speed, high-precision large-format sheet metal cutting.

Technical Specifications

Processing Area	8000 * 2500mm
Maximum Loading Weight	12T
Machine Weight	15T
Overall Dimensions	19680×3958×2560mm
Laser Power Range	1500W - 20KW
X/Y-axis Positioning Accuracy	±0.03mm
X/Y-axis Repositioning Accuracy	±0.03mm
Maximum Linkage Acceleration	1.5G
Maximum Linkage Speed	100m/min
Transmission System	Double rack & pinion transmission with servo drive
Voltage Requirement	380V
Frequency	50Hz
Beveling Cutting	±45

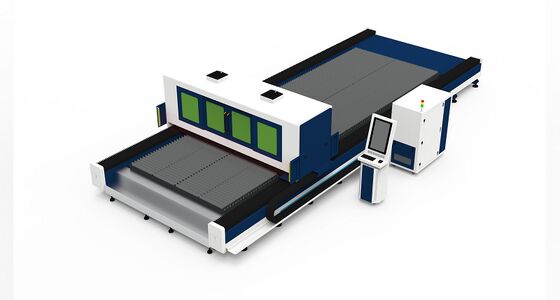

QH-8025FD High Speed Large format Sheet Metal Laser Cutting Machine 8000×2500mm 0

Advantage

1.5G High Acceleration Greatly Improves Cutting Efficiency: Compared with traditional laser cutting machines with low acceleration (usually ≤1.0G), the QH-8025FD’s 1.5G maximum linkage acceleration significantly reduces the acceleration and deceleration time of the cutting head during the cutting process, especially for complex-shaped sheet metals with frequent direction changes. This shortens the overall processing time by 30%-40%, greatly improving production efficiency and enabling faster completion of large-batch sheet metal orders.

High Speed with High Precision Ensures Stable Product Quality: The combination of 1.5G acceleration, 100m/min linkage speed and double rack & pinion servo transmission ensures smooth and stable movement of the cutting head during high-speed operation, without jitter or deviation. Cooperated with ±0.03mm high positioning and repositioning accuracy, the machine maintains consistent cutting precision even at ultra-high speed, avoiding cutting defects (such as uneven edges, size deviation) caused by rapid movement, and improving the qualification rate of finished products.

High Acceleration Matches Large Format to Maximize Efficiency: The 1.5G high acceleration is perfectly compatible with the 8000×2500mm large processing area—for large-size sheet metals, the cutting head can quickly move between different cutting positions, reducing idle time and fully exerting the advantages of large-format one-time cutting. This avoids the inefficiency of small-format machines that require multiple clamping and cutting, and further enhances the overall processing efficiency of large-size sheet metals.

Stable Structure & Transmission Ensure Long-Term High-Speed Operation: The machine’s 10000kg heavy-duty structure and 12000kg maximum loading weight provide strong stability, effectively suppressing vibration caused by high-speed, high-acceleration operation. The double rack & pinion transmission with servo drive has high rigidity and wear resistance, ensuring stable transmission accuracy during long-term high-speed operation, minimizing downtime and maintenance frequency. Meanwhile, the 6000W-20KW high power and stable power supply (380V/50Hz) ensure that the cutting performance is not compromised at high speed, achieving a balance between high efficiency, high precision and long-term stability.
