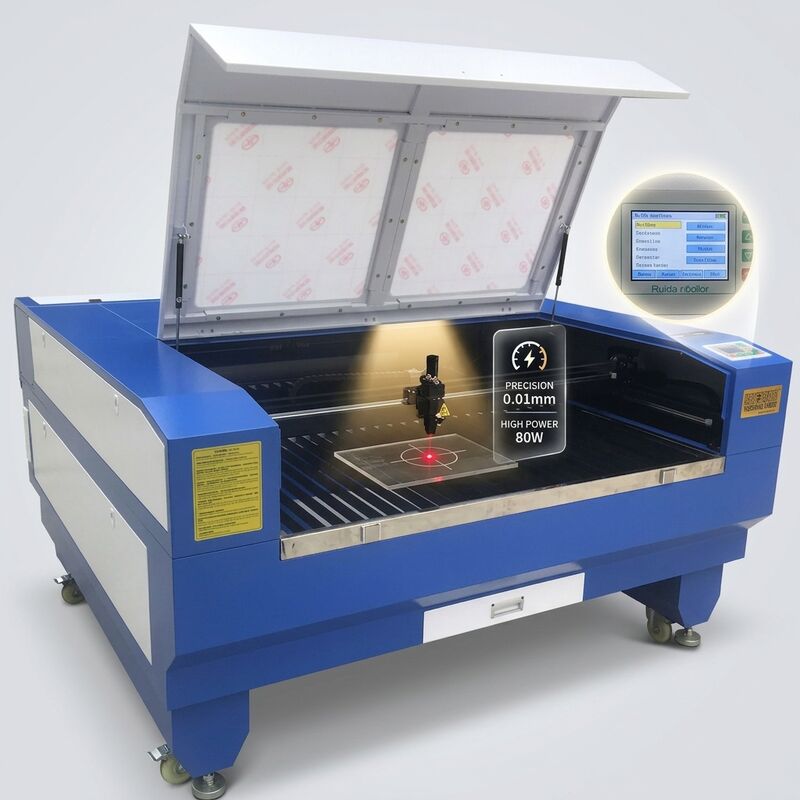

QH 9060 80W CO2 Laser Engraving Machine 900x600mm Single Head Ruida Control

QH 9060 80W Single Head CO2 Laser Engraving Machine

Description

The QH 9060 is a fixed-configuration 80W single head CO2 laser engraving and cutting machine built on the 900×600mm platform. The machine is supplied as one defined specification — 900×600mm engraving area, 80W CO₂ laser tube and single laser head — so performance and quotation stay consistent from the first sample to repeat orders.

The 10.6µm CO₂ wavelength is strongly absorbed by non-metallic materials, allowing clean cutting and fine engraving of acrylic, wood, MDF, leather, paper, foam and rubber. A single head keeps one beam path and one focus lens set, which simplifies alignment, reduces consumable cost and makes operator training straightforward.

Motion is driven by Taiwan HIWIN guide rails and Leadshine stepper motors with 0.025mm resolution and ±0.01mm resetting positioning accuracy. The Ruida control system with LCD screen and USB interface accepts standard files from CorelDraw, AutoCAD, Photoshop and Illustrator. A CW3000 industrial chiller stabilises the 80W tube temperature, while the exhaust fan and air pump clear fumes and protect the optics. Pass-through doors allow processing of material longer than the 900mm bed.

Quick Detail

• Fixed 80W Single Head Configuration: 900×600mm engraving area + 80W CO₂ laser tube + single head, one specification and one quotation basis.
• Non-Metallic Processing: 10.6µm wavelength for acrylic, wood, MDF, leather, paper, foam and rubber, with maximum cutting thickness up to 15mm.
• Precision Motion: HIWIN guide rail and Leadshine stepper motor, 0.025mm resolution and ±0.01mm resetting positioning accuracy.
• Ruida Control System: LCD screen with USB interface, supports CorelDraw, AutoCAD, Photoshop, Illustrator and BMP/PLT/DXF/G-CODE/DST/AI files.
• Thermal Stability: CW3000 industrial chiller, exhaust fan and air pump supplied as assistant equipment.
• Long Material Handling: Pass-through doors allow cutting of extremely long materials.

Configured Specification

Technical Parameter

Advantage

• One Fixed 80W Single Head Build: Because the machine is supplied as one defined specification, every unit behaves the same and every quotation is comparable. There is no mixed power or head option to re-qualify, no mismatched spare parts, and the same cutting parameters can be reused across machines on the same production floor.
• Right-Sized 900×600mm Working Area: The bed handles standard acrylic sheets, signage panels and craft blanks, while pass-through doors extend the working length for long strips and profiles. This covers the typical order mix of signage, advertising, gift and packaging workshops without paying for a larger gantry.
• Detail That Removes Post-Processing: 0.025mm resolution with ±0.01mm resetting accuracy holds 2mm Chinese characters and 1mm letters sharp, so engraved logos, serial numbers and decorative patterns come off the machine clean and need no hand touch-up.
• Single Head Simplicity: One beam path, one focus lens set and one chiller loop mean fewer alignment steps and lower consumable cost than a dual head layout, while the CW3000 chiller protects the tube from the overheating that causes most premature CO₂ tube failures.
• Fast Deployment: Ruida control accepts files from the software workshops already use, so production can start shortly after installation. Standard 3-5 day production time and a proven 900×600mm platform keep lead time and after-sales risk low.

Applications

Acrylic signage and displays, wooden crafts and toys, MDF furniture parts, leather and textile engraving, paper packaging prototypes, foam inserts, rubber stamps and personalised gift items.
