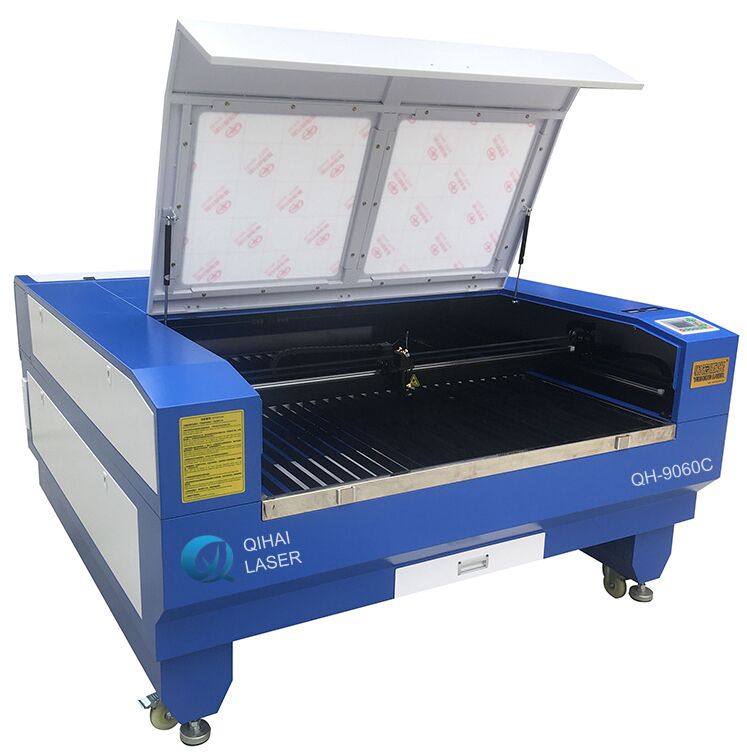

QH-9060C CO2 laser cutting and engraving machine

Name: QH-9060C CO2 laser cutting and engraving machine
Brand: Qihai Laser Tech. Co., Ltd.
SKU: QH-9060C
Availability: InStock

Brand Name:	QIHAI
Model Number:	QH-9060C
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	500 Set/month

Detail Information

Product Description

Detail Information

Place of Origin:

Foshan, Guangdong, China

Certification:

CE, ISO

Warranty:

1 Year

Packaging Details:

wood

Highlight:

CO2 laser cutting machine with engraving

QH-9060C laser engraving machine

CO2 laser cutter for engraving

Product Description

QH-9060C CO2 laser cutting and engraving machine 80w 100w 120w Optional

Description

CO2 Laser Cutting and Engraving Dual-Function Machine: The QH-9060C is a professional and versatile CO2 laser equipment that integrates cutting and engraving functions, designed to meet diverse non-metallic material processing needs. It adopts advanced CO2 laser technology with a 10.6um wavelength and optional laser tube power (80w/100w/120w), delivering stable energy output for smooth cutting (up to 15mm thick) and high-precision engraving. With a 900x600mm processing area and pass-through doors for extra-long materials, paired with a complete supporting system (imported lenses, industrial chiller, high-quality guide rails, etc.), it ensures consistent performance and is widely used in advertising, craft making, packaging and other industries, with user-friendly operation supported by multiple graphic formats and software.

Quick Detail

Core Specifications for CO2 Laser Processing: The QH-9060C features dual CO2 laser cutting and engraving functions, with optional 80w/100w/120w laser power and 10.6um laser wavelength for stable operation. It offers adjustable cutting speed (0-18000mm/min) and engraving speed (0-64000mm/min with stepless regulation), along with high precision (0.025mm resolution, ±0.01mm resetting accuracy). Key configurations include a 900x600mm processing area, pass-through doors, imported lenses, CW3000 industrial chiller, Ruida control system, optional aluminum slot/honeycomb cutting table, and standard 220V power supply, adapting to a wide operating environment (0℃-45℃, 5%-95% humidity).

Technical Parameter

Model	QH-9060C
Engraving area	900x600mm(X 900, Y 600)
Machine size	1500x1150x1120mm
Cutting speed	0-18000mm/min
Engraving speed	0-64000mm/min(stepless speed regulating)
Laser tube power option	80w/100w/120w option
Natural life of laser	6 month
Laser wave length	10.6um
Resolution ratio	0.025mm
Minimum shaping character	Chinese character 2mm/ letter 1mm
Resetting positioning accuracy	±0.01mm
Voltage	Ac220v±10%,50HZ/60HZ
Operating Temperature	0℃-45℃
Operating humidity	5%-95%
Graphic Format Supported	BMP,HPGL (PLT), DXF, G-CODE, DST,AutoCAD, CorelDraw, CAD CAM, AI, Photoshop
Software supported	Coreldraw,AutoCAD,Photoshop.llustrator etc
Lens	Imported reflect lens(3pcs)+focus lens(1pcs)
Guide rail	High quality tanwan hiwin guiderail
Driver type	Leadshine stepmotor
Cutting table	Aluminum slot/ honeycomb option
Cooling sytem	CW3000 Industrial Chiller
Software	Ruida control system
Opearate System	Win98/Win2000/WinXP/Win 7/vista
Interface	LCD screen with USB interface
Max Cutting thickness	≦15mm
Pass through doors	Allow to cut extremely long materials
Packing	Polywood case for export standard
Assistant equipment	Exhaust-fan,air pump,industry chiller
Configuration	Rotary and up and down
Produce time	3-5days
CBM/GW	3.5M3/300KG

Advantage

CO2 Laser Cutting and Engraving Dual Function, High Utilization: Integrating two core functions, it saves equipment investment and workshop space, suitable for scenarios requiring both cutting and engraving, improving production efficiency.

Optional CO2 Laser Power, Strong Adaptability: 80w/100w/120w optional power matches different processing needs, whether it is fine engraving or thick material cutting, fully exerting CO2 laser performance.

Flexible CO2 Laser Processing: 900x600mm engraving area, pass-through doors for extra-long materials, and optional cutting tables, adapting to different sizes and types of workpieces for CO2 laser processing.
