| Brand Name: | QIHAI |
| Model Number: | QH-12025FD |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 Set/month |

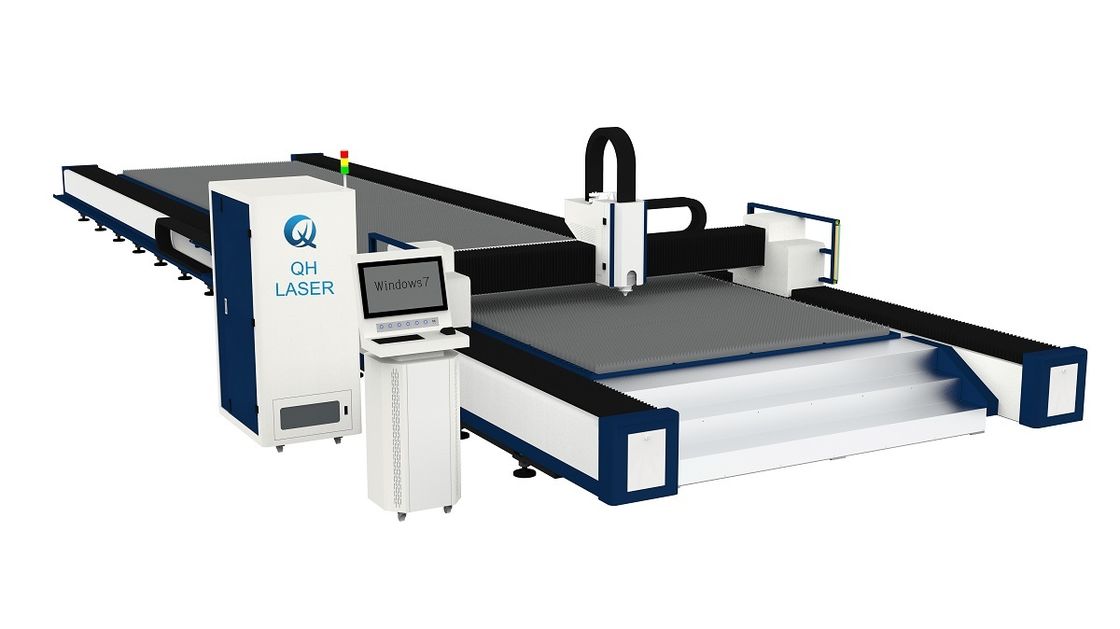

Core Large-Format Highlight: 12000×2500mm ultra-large processing area + 12000kg max loading weight—eliminates workpiece splicing for oversized parts, reducing processing steps by 40%-60%.
Key Performance Specs: ±0.03mm dual-axis accuracy (ensures precision on large workpieces), 100m/min max speed, 1500W-20KW laser power (handles thick/heavy materials).
Practical Edge: Double rack & pinion servo transmission (stable motion for large-workpiece cutting); 380V/50Hz compatibility (no custom power modifications needed).
Target Use: Perfect for heavy machinery/shipbuilding—needs to process oversized, heavy metal components without compromising precision.
| Specification | Value |
|---|---|
| Processing Area | 12000 × 2500mm |
| Maximum Loading Weight | 12000kg |
| Machine Weight | 10000kg |
| Overall Dimensions | 15200×4060×2050mm |
| Laser Power Range | 1500W - 20KW |
| X/Y-axis Positioning Accuracy | ±0.03mm |
| X/Y-axis Repositioning Accuracy | ±0.03mm |
| Maximum Linkage Acceleration | 1.0G |
| Maximum Linkage Speed | 100m/min |
| Transmission System | Double rack & pinion transmission with servo drive |
| Voltage Requirement | 380V |
| Frequency | 50Hz |
Advantage
Ultra-Large Format: Redefine Oversized Processing: The 12000×2500mm processing area enables one-time cutting of extra-large workpieces (e.g., 10m-long steel beams, 2m-wide ship panels) that require splicing in smaller machines. This not only saves 30%-50% of splicing time but also avoids precision errors caused by multi-segment assembly, improving overall product quality.
Heavy-Load Stability & High Precision: With a 12000kg maximum loading weight, the machine safely handles thick, heavy metal sheets. Paired with double rack & pinion servo transmission, it maintains ±0.03mm positioning accuracy even when processing full-area large workpieces—critical for industries like heavy machinery where dimensional precision directly affects component assembly and safety.
Power Adaptability & Industrial Compatibility: The 1500W-20KW laser power range covers cutting needs from thin large sheets (0.5mm) to thick heavy plates (25mm), meeting diverse large-format processing demands. Its 15200×4060×2050mm overall size is optimized for industrial workshops, while the 380V/50Hz power configuration aligns with standard factory supplies, reducing setup costs and ensuring quick integration into production lines.
