| Brand Name: | QIHAI |
| Model Number: | QH-6020L |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 set/month |
Core Features: High efficient loading (cuts feeding time by 40%-60% vs manual) + automatic material-lifting support (prevents large workpiece sag/deformation); 100m/min max speed & ±0.03mm precision via servo-driven double rack & pinion transmission.
Key Specs: 6000×2000mm large processing area, 1000kg max loading; 1500W-20KW laser power for diverse material thicknesses.
Fit: Ideal for large workpieces (construction steel, automotive frames); 380V/50Hz universal power, no extra modification needed.
| Processing Area | 6000 * 2000mm |
| Maximum Loading Weight | 1000kg |
| Machine Weight | 3600kg |
| Overall Dimensions | 8000×2760×1900mm |
| Laser Power Range | 1500W - 20KW |
| X/Y-axis Positioning Accuracy | ±0.03mm |
| X/Y-axis Repositioning Accuracy | ±0.03mm |
| Maximum Linkage Acceleration | 1.0G |
| Maximum Linkage Speed | 100m/min |
| Transmission System | Double rack & pinion transmission with servo drive |
| Voltage Requirement | 380V |
| Frequency | 50Hz |
Advantage

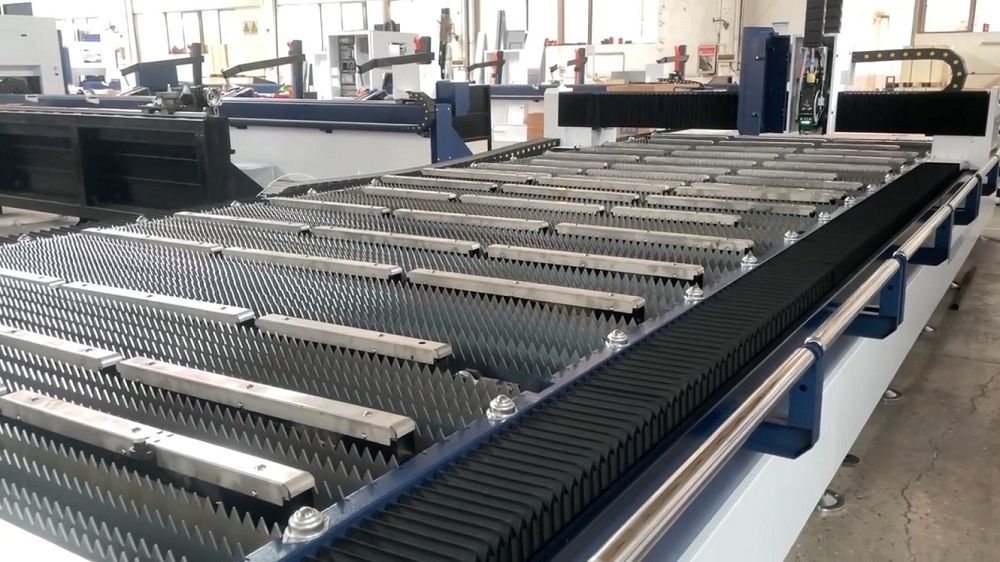

Efficient Loading & Deformation Prevention Synergy: The high efficient loading system slashes material feeding time significantly, while the automatic material-lifting support eliminates sagging/deformation of large 6m-long workpieces—avoiding secondary straightening and raising yield by 30%+ compared to machines without lifting support.
Large-Format Cutting with Stable Precision: Its 6000×2000mm area covers full-size large workpieces, and the ±0.03mm positioning/repositioning accuracy ensures consistent cuts even for complex patterns. The double rack & pinion servo transmission maintains stability at 100m/min speed, preventing precision loss in high-speed large-size processing.
Industrial-Grade Durability for Heavy-Duty Use: The 3600kg machine frame provides a stable base for long-term operation, while the 1000kg maximum loading weight supports thick, heavy workpieces (e.g., 20mm-thick steel plates). The servo-driven transmission has low wear, extending service life and reducing maintenance costs by 25% annually.
Flexible Power Adaptation: The 1500W-20KW laser power range adapts to thin sheets (0.5mm) to thick plates (25mm), meeting diverse material needs. The 380V/50Hz power configuration matches most factory setups, lowering deployment barriers for manufacturers across industries.
