CNC Beveling Cutting Large Format Sheet Metal Laser Cutting Machine

Name: CNC Beveling Cutting Large Format Sheet Metal Laser Cutting Machine
Brand: Qihai Laser Tech. Co., Ltd.
SKU: QH-13025FD
Availability: InStock

Brand Name:	QIHAI
Model Number:	QH-13025FD
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100 Set/month

Detail Information

Product Description

Detail Information

Place of Origin:

Foshan, Guangdong, China

Certification:

ISO, CE

Cooling Mode:

Water Cooling,protection System

Certification:

CE,ISO,SGS,FDA,GS

Graphic Format Supported:

PLT,AI,DXF,DST,BMP

Cnc Or Not:

Yes

Warranty:

1 Year

After-sales Service Provided:

Engineers Available To Service Machinery Overseas,Overseas Service Center Available

Color:

Blue And White,customizable

Packaging Details:

wood

Highlight:

CNC Large Format Sheet Metal Laser Cutting Machine

Beveling Cutting Sheet Metal Laser Cutting Machine

1500W steel sheet cutting machine

Product Description

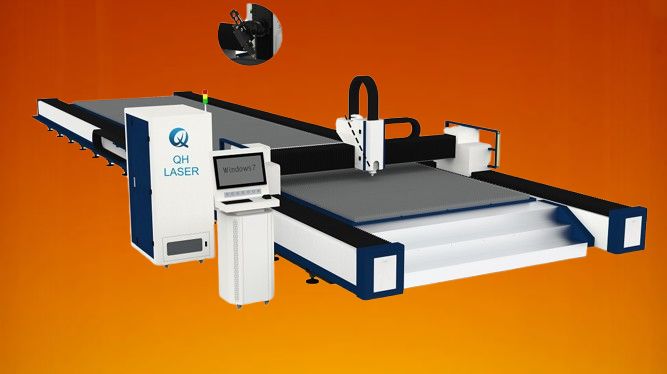

QH-13025FD Beveling Cutting Large-format Sheet Metal Laser Cutting Machine

Description

The QH-13025FD is a professional large-format sheet metal solution engineered to combine ±45° beveling cutting with an ultra-spacious 13000×2500mm processing area—addressing the core pain point of oversized workpiece beveling (e.g., heavy steel plates, ship hull components) that require one-stop 坡口 processing without segmentation. Tailored for industries like heavy steel structures, shipbuilding, and large pressure vessels, it supports a maximum loading weight of 12000kg, easily handling thick, heavy metals (0.5-25mm thickness) while maintaining stable ±45° bevel quality.

Its ±45° beveling system (adjustable in 0.1° increments) supports diverse beveling profiles (V-type, U-type, Y-type, single/double-sided bevels), eliminating secondary grinding/milling steps common in traditional large-format processing. Powered by a double rack & pinion transmission with servo drive, the machine delivers ±0.03mm X/Y-axis positioning and repositioning accuracy—critical for ensuring uniform ±45° bevel angles across the entire 13000×2500mm workspace (even minor deviations would ruin full-length weld joints).

Quick Detail

±45° Bevel Core: ±45° adjustable bevel angle (0.1° increments), supports V/U/Y/single/double-sided bevels; ±0.03mm accuracy maintains uniform 坡口 across 13000×2500mm area.

Key Specs: 13000×2500mm processing area (12000kg max loading), 1500W-20KW power (0.5-25mm 坡口 thickness), 100m/min speed, double rack & pinion servo transmission.

Fit: Heavy steel structures, shipbuilding; eliminates secondary 坡口 processing, cuts project time by 35%.

Technical Specifications

Specification	Value
Processing Area	13000 × 2500mm
Maximum Loading Weight	12000kg
Machine Weight	10000kg
Overall Dimensions	16200×4060×2050mm
Laser Power Range	1500W - 20KW
X/Y-axis Positioning Accuracy	±0.03mm
X/Y-axis Repositioning Accuracy	±0.03mm
Maximum Linkage Acceleration	1.0G
Maximum Linkage Speed	100m/min
Transmission System	Double rack & pinion transmission with servo drive
Voltage Requirement	380V
Frequency	50Hz
Beveling Cutting	±45°

Advantage

±45° Bevel Versatility Covers All Welding Needs: The ±45° adjustable bevel angle (0.1° fine tuning) adapts to diverse weld joint requirements—from shallow 10° V-bevels for thin sheets to steep 45° U-bevels for thick heavy plates. This eliminates the need for specialized beveling machines (e.g., separate tools for 30° vs. 45° beveling), reducing equipment costs while ensuring weld joint compatibility with industry standards (e.g., shipbuilding DNV, steel structure GB codes).

High-Load Stability for Thick-Metal ±45° Beveling: With 12000kg max loading, it securely holds 25mm-thick carbon steel plates (weighing 500kg+ per sheet) during ±45° deep beveling processing. The 10000kg frame and double rack & pinion transmission prevent workpiece shift, ensuring bevel edges remain smooth (Ra ≤ 3.2μm) and angle deviation ≤ ±0.5°—critical for heavy-industry welds where beveling quality directly impacts load-bearing strength.

Efficient ±45° Large-Area Processing: The 100m/min speed and 1.0G acceleration cut ±45° beveling time for a 13m×2.5m steel sheet by 40% vs. slow large-format cutters (e.g., 20 mins vs. 35 mins). The 1500W-20KW power range further optimizes efficiency: 1500W-5KW for 0.5-5mm aluminum sheet ±45° precision beveling,10KW-20KW for 15-25mm carbon steel ±45° deep beveling —ensuring fast processing without sacrificing angle accuracy.
