| Brand Name: | QiHai |
| Model Number: | QH-3015F |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 90set/mon |

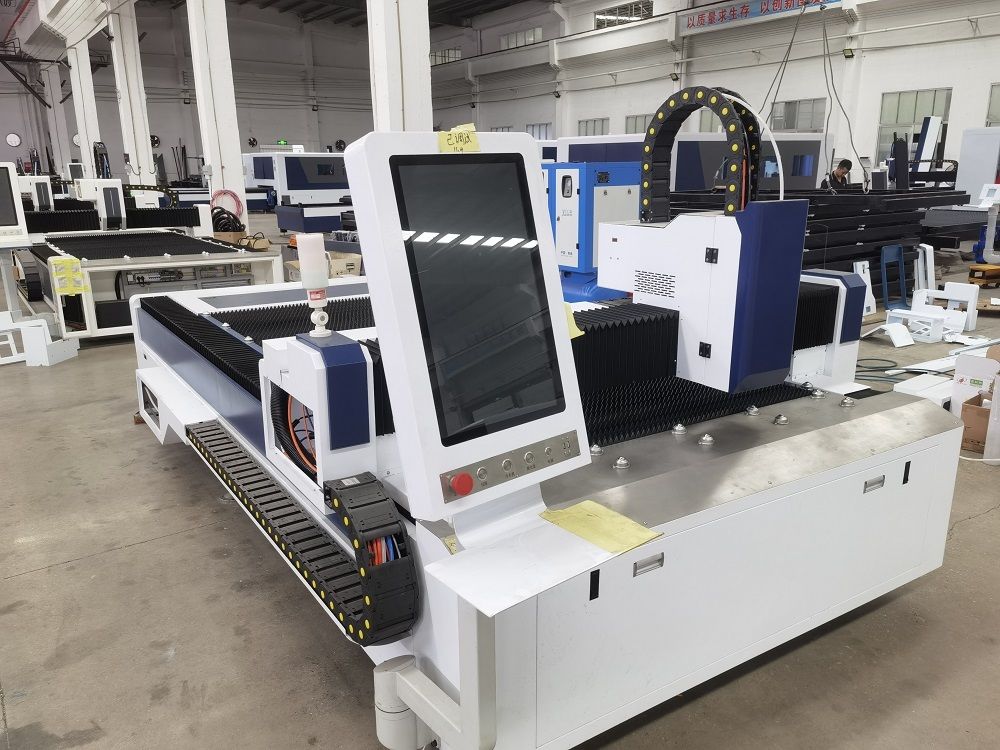

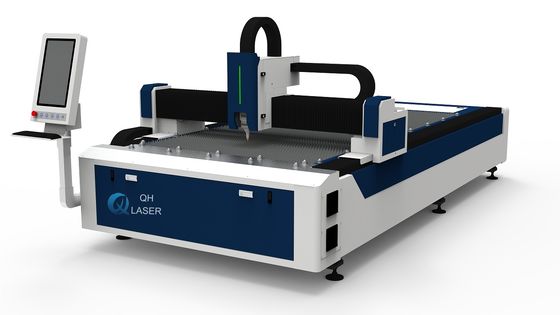

Core Traits: Economical single-platform design (lowers initial investment & maintenance costs); no complex multi-platform switching, simplifying operation.
Key Specs: 3000×1500mm processing area, 800kg max loading; ±0.03mm precision, 100m/min speed, 1500W-20KW laser power.
Fit: Ideal for small-to-medium batches; 4800×2350×1900mm compact size saves workshop space; 380V/50Hz universal power.
| Processing Area | 3000 * 1500mm |
| Maximum Loading Weight | 800kg |
| Machine Weight | 1600kg |
| Overall Dimensions | 4800 * 2350 * 1900mm |
| Laser Power Range | 1500W - 20KW |
| X/Y-axis Positioning Accuracy | ±0.03mm |
| X/Y-axis Repositioning Accuracy | ±0.03mm |
| Maximum Linkage Acceleration | 1.0G |
| Maximum Linkage Speed | 100m/min |
| Transmission System | Double rack & pinion transmission with servo drive |
| Voltage Requirement | 380V |
| Frequency | 50Hz |
Advantage
Cost Efficiency from Single-Platform Design: The simplified single-platform structure reduces manufacturing and maintenance costs compared to multi-platform models—lowering initial investment by 15%-20% and annual maintenance expenses by 25% (no need for platform-switching components). It also cuts operator training time, as the straightforward layout is easy to master.
Space-Saving & Flexible Deployment: With a compact 4800×2350×1900mm footprint and 1600kg weight, the single-platform design fits limited workshop spaces, eliminating the need for extra area for platform storage or movement. This flexibility allows quick integration into existing production lines without major layout adjustments.
Balanced Performance & Affordability: Despite its economical positioning, it retains high precision (±0.03mm) and speed (100m/min) via the double rack & pinion servo transmission, ensuring consistent cutting quality for common materials. The 1500W-20KW power range adapts to diverse thicknesses, avoiding the need for multiple machines and further enhancing cost-effectiveness for small-to-medium manufacturers.
