| Brand Name: | QIHAI |
| Model Number: | QH - 3015FB |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 set/month |

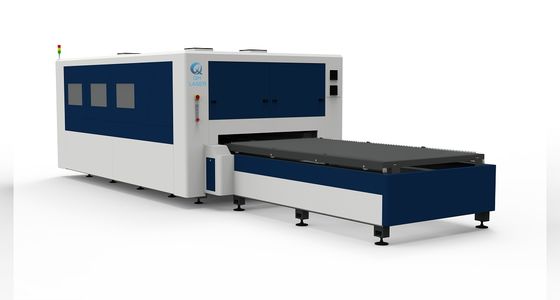

High-Power Core: 6000W-20KW range enables cutting of thick metals (25mm+ carbon steel) with fast speed—reduces thick-material processing time by 30%-40% vs. standard-power models.
Key Specs: 3000×1500mm area, 1000kg max loading; ±0.03mm precision, 100m/min speed; dual-platform + enclosed structure.
Fit: Heavy-duty processing (construction machinery, shipbuilding); high-power ensures clean cuts on thick materials; enclosed design meets industrial safety standards.
| Processing Area | 3000 * 1500mm |
| Maximum Loading Weight | 1000kg |
| Machine Weight | 3500kg |
| Overall Dimensions | 8500×2280×2150mm |
| Laser Power Range | 6000W - 20KW |
| X/Y-axis Positioning Accuracy | ±0.03mm |
| X/Y-axis Repositioning Accuracy | ±0.03mm |
| Maximum Linkage Acceleration | 1.0G |
| Maximum Linkage Speed | 100m/min |
| Transmission System | Double rack & pinion transmission with servo drive |
| Voltage Requirement | 380V |
| Frequency | 50Hz |
Advantage
High-Power-Driven Thick-Material Efficiency: The 6000W-20KW adjustable laser power easily penetrates thick metals (e.g., 20mm stainless steel, 25mm carbon steel) with minimal heat-affected zone, producing smooth, burr-free cuts that eliminate secondary finishing. Compared to lower-power machines, it cuts 20mm carbon steel up to 2x faster, drastically boosting throughput for heavy-duty projects.
Dual-Platform Synergy with High Power: The dual-platform design enables simultaneous loading/unloading while the high-power laser processes workpieces—eliminating downtime between batches. This combination is critical for high-volume thick-material production, as the high-power laser’s fast cutting speed is fully utilized without workflow interruptions, increasing overall productivity by 50% vs. single-platform high-power models.
Enclosed Safety & Stability for High-Power Operation: The enclosed structure contains the intense heat and light generated by high-power laser cutting, protecting operators from radiation and reducing noise. It also maintains a clean, dust-free processing environment, which preserves the high-power laser’s optical components—extending their lifespan by 20% and lowering maintenance costs. Additionally, the machine’s 3500kg sturdy build ensures stable operation even at maximum power, preventing vibration-induced precision loss and ensuring consistent cut quality.
