| Brand Name: | QiHai |
| Model Number: | QH-3015F |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 90set/mon |

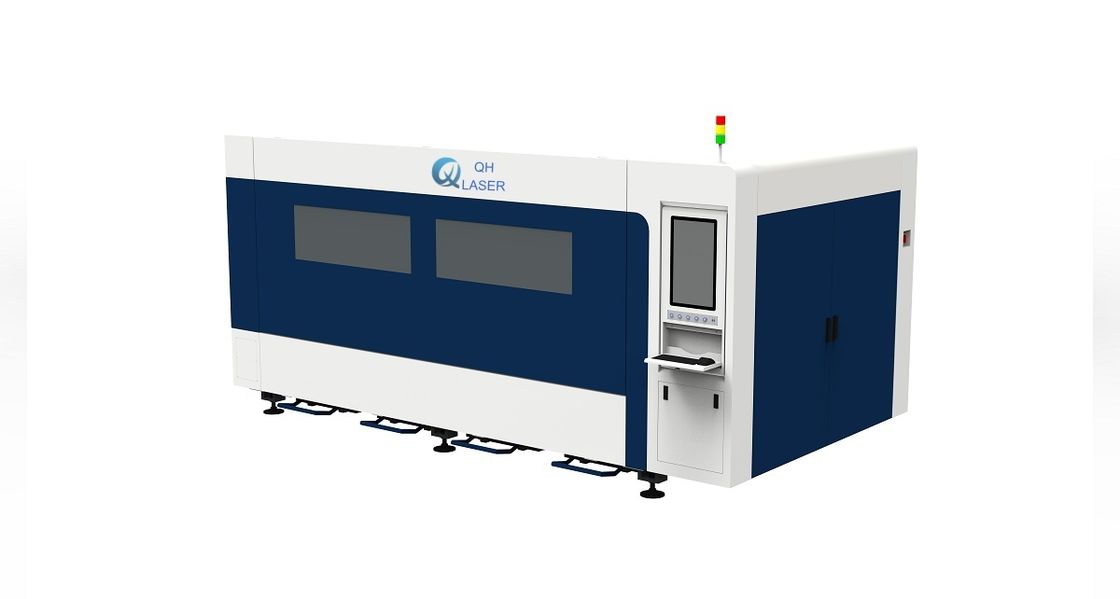

Single Platform Fully Enclosed Core: Single-platform design for easy workpiece handling; full enclosure blocks laser radiation, dust, and noise—meets industrial safety standards.
Key Specs: 3000×1500mm processing area, 800kg max loading, ±0.03mm dual-axis accuracy, 100m/min max linkage speed, 1500W-20KW laser power.
Fit: Workshops prioritizing safety (full enclosure) and operational simplicity (single platform); suits medium-batch carbon steel/stainless steel cutting.
| Processing Area | 3000 * 1500mm |
| Maximum Loading Weight | 800kg |
| Machine Weight | 1800kg |
| Overall Dimensions | 4800 * 2350 * 1900mm |
| Laser Power Range | 1500W - 20KW |
| X/Y-axis Positioning Accuracy | ±0.03mm |
| X/Y-axis Repositioning Accuracy | ±0.03mm |
| Maximum Linkage Acceleration | 1.0G |
| Maximum Linkage Speed | 100m/min |
| Transmission System | Double rack & pinion transmission with servo drive |
| Voltage Requirement | 380V |
| Frequency | 50Hz |
Advantage
Single Platform Simplifies Operation & Ensures Precision: The single-platform structure eliminates complex multi-platform switching, reducing workpiece positioning errors caused by platform transfer—paired with 800kg uniform loading capacity, it maintains stable support for large sheets, reinforcing the machine’s ±0.03mm positioning accuracy. Additionally, the single-platform design streamlines maintenance (e.g., easy access to cutting zones for cleaning) and lowers learning costs for operators, cutting setup time by 15%-20% compared to multi-platform models.
Fully Enclosed Design Enhances Safety & Environmental Control: The full enclosure provides 360° protection against laser radiation (complying with Class IV laser safety standards) and prevents metal dust, smoke, and noise from escaping—reducing workplace noise levels by 25%-30% and eliminating dust pollution. This not only safeguards operator health but also protects surrounding equipment from dust accumulation, extending the service life of workshop machinery. Unlike open-type cutters, it avoids accidental laser exposure risks, making it suitable for workshops with strict safety regulations.
Single Platform + Enclosure Synergy Boosts Efficiency: The single platform enables continuous loading/unloading (with optional external material racks for seamless workflow) while the enclosure maintains a stable internal cutting environment (reducing air turbulence that affects laser focus). This synergy ensures consistent cutting quality even during long-hour operation, and the 100m/min maximum linkage speed paired with the machine’s structural stability allows for high-efficiency processing without compromising safety—ideal for balancing productivity and workplace protection.
