| Brand Name: | QiHai |
| Model Number: | QH-3015F |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 90set/mon |

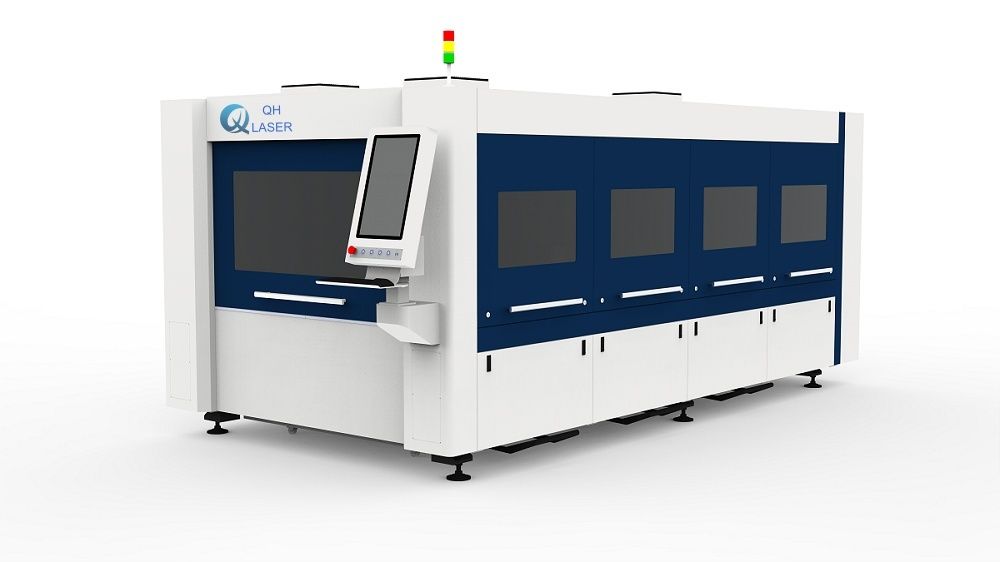

Longitudinal Core Advantage: 3000mm longitudinal processing length optimized for elongated workpieces; longitudinal-oriented single platform ensures stable support and precise positioning for long sheets.
Key Specs: 3000×1500mm (longitudinal-focused) area, 800kg max loading, ±0.03mm longitudinal axis accuracy, 100m/min max linkage speed, 1500W-20KW power.
Fit: Long-size sheet metal tasks (automotive longitudinal parts, large cabinets); workshops needing longitudinal precision + full enclosure safety.
| Processing Area | 3000 * 1500mm |
| Maximum Loading Weight | 800kg |
| Machine Weight | 1800kg |
| Overall Dimensions | 4800 * 2350 * 1900mm |
| Laser Power Range | 1500W - 20KW |
| X/Y-axis Positioning Accuracy | ±0.03mm |
| X/Y-axis Repositioning Accuracy | ±0.03mm |
| Maximum Linkage Acceleration | 1.0G |
| Maximum Linkage Speed | 100m/min |
| Transmission System | Double rack & pinion transmission with servo drive |
| Voltage Requirement | 380V |
| Frequency | 50Hz |
Advantage
Longitudinal Structure Fits Long-Size Workpiece Needs: The 3000mm longitudinal processing dimension eliminates the need for splicing long workpieces (e.g., 3m-long stainless steel sheets), reducing material waste and post-processing time. The longitudinal-optimized double rack & pinion transmission minimizes precision loss during long-distance movement—ensuring ±0.03mm accuracy even when cutting 3m-long continuous features (e.g., linear slots, long holes), which is critical for applications like automotive frame components requiring consistent longitudinal tolerance.
Longitudinal Single Platform Boosts Operation Efficiency: Unlike non-longitudinal platforms that struggle with awkward handling of elongated sheets, the QH-3015FC’s longitudinal single platform allows smooth loading/unloading of long workpieces (e.g., sliding 3m sheets along the longitudinal axis without edge damage). Optional longitudinal material feeding racks can be paired to enable continuous feeding of long coils or sheets, cutting workpiece transfer time by 25%-30% compared to traditional non-longitudinal single-platform models.
Longitudinal + Full Enclosure Synergy Enhances Stability: The longitudinal structure, combined with the full enclosure, creates a stable processing environment for long-distance cutting. The enclosure reduces cross-wind interference that often disrupts laser focus during longitudinal long-range processing, while the longitudinal platform’s uniform 800kg loading capacity prevents sagging of heavy long sheets—ensuring consistent cutting depth and edge quality across the entire 3000mm longitudinal length. Additionally, the enclosure’s longitudinal dust-collection ports target debris generated during long-size cutting, keeping the longitudinal transmission system clean and extending its service life.
