QH-GZ Zero-tailing Laser Tube Cutting Machine Semi-automatic Loading Follow-up Support

Name: QH-GZ Zero-tailing Laser Tube Cutting Machine Semi-automatic Loading Follow-up Support
Brand: Qihai Laser Tech. Co., Ltd.
SKU: QH-GZ
Availability: InStock

Brand Name:	QIHAI
Model Number:	QH-GZ
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100 Set/month

Detail Information

Product Description

Detail Information

Place of Origin:

Foshan, Guangdong, China

Certification:

CE, ISO

Control Software:

Cypcut,Ruida,Perfect Laser Professional Laser Cutting Software,PhotoShop,TAJIMA

Condition:

New

Cnc Or Not:

Yes

Graphic Format Supported:

PLT,DXF,AI,BMP,DST

Cutting Thickness:

Depends,Materials,0-20mm,30mm Acrylic,0-15mm

Cooling Mode:

Water Cooling

Warranty:

1 Year

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Color:

White,according To Client,Required,Blue And White

Packaging Details:

wood

Highlight:

30mm acrylic tube cutting machine

water cooling tube cutting machine

30mm acrylic tube laser cutting machine

Product Description

QH-GZ Zero-tailing Laser Tube Cutting Machine Semi-automatic Loading Follow-up Support

Description​

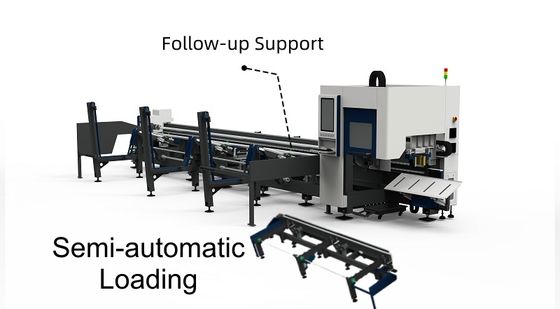

The QH-GZ Zero-tailing Laser Tube Cutting Machine, integrated with Semi-automatic Loading and Follow-up Support, is a specialized tube processing solution tailored for automotive components, hydraulic systems, and mechanical engineering—balancing efficiency, precision, and material savings. Its defining strength lies in the synergy of its two core features: the semi-automatic loading system streamlines tube feeding by providing auxiliary positioning and manual-assisted material loading (reducing manual labor intensity vs. fully manual setups), while the follow-up support dynamically clamps and stabilizes tubes during cutting.

This support system accommodates a wide range of tube types and sizes: round tubes (Φ15-500mm), square tubes (15×15-500×500mm), and tube lengths of 5500-6500mm—preventing deflection or vibration that would compromise precision. Paired with zero-tailing technology (residual tube length ≤5mm per cut), the machine minimizes material waste, especially for high-value metals like stainless steel. Powered by a 1500W-20KW laser range, it delivers one-pass cutting for diverse tube thicknesses, with ±0.03mm X/Y-axis positioning and repositioning accuracy ensuring consistent cut quality (e.g., smooth slots, precise holes). Weighing 2T and measuring 9620×2950×2080mm, it fits medium-scale industrial workshops, offering a practical blend of performance and space adaptability.

Quick Detail

Dual Core Features: Semi-automatic loading (auxiliary positioning, reduces manual labor); Follow-up Support (stabilizes Φ15-500mm/15×15-500×500mm tubes, 5500-6500mm length) + Zero-tailing (≤5mm residual waste).
Key Specs: 1500W-20KW laser power; ±0.03mm X/Y precision; compatible with round/square tubes.
Efficiency Highlight: Semi-automatic loading cuts setup time by 20%-30% vs. fully manual; follow-up support enables stable high-speed cutting.
Fit: Automotive/hydraulic industries; 2T weight + 9620×2950×2080mm size suits medium workshops.

Product Specifications

Model	QH-GZ
Cutting Diameter	Round Tube: Φ15-500mm Square Tube: 1515mm to 500500mm
Tube Length Capacity	5500-6500mm
Machine Weight	2T
Dimensions (LWH)	962029502080mm
Laser Power Range	1500W-20KW
Positioning Accuracy	±0.03mm (X/Y-axis)
Repositioning Accuracy	±0.03mm (X/Y-axis)
Compatible Tube Types	Round Tube / Square Tube

Advantage

Semi-automatic Loading + Follow-up Support Boosts Efficiency: The semi-automatic loading system eliminates time-consuming manual alignment of long tubes (5500-6500mm), reducing batch setup time by 20%-30% compared to fully manual machines. Once loaded, the follow-up support dynamically stabilizes tubes during cutting—no need for frequent manual readjustment—allowing the 1500W-20KW laser to maintain consistent cutting speed, boosting daily throughput by 30%-40% for high-volume tube processing.
Dual Features Ensure Consistent High Precision: Semi-automatic loading provides repeatable auxiliary positioning, ensuring tubes are aligned accurately with the cutting path (avoiding manual positioning errors). Combined with the follow-up support’s anti-deflection function (critical for large-diameter tubes like Φ500mm or long 6500mm tubes), the machine retains ±0.03mm X/Y-axis precision across all cuts. This consistency reduces rework rates by 45%-55% vs. machines lacking either feature, where misalignment or vibration causes uneven slots/holes.
Zero-tailing Effectiveness Enhanced by Stable Loading & Support: The zero-tailing feature (≤5mm residual waste) relies on stable tube positioning during the final cut. The semi-automatic loading system ensures tubes are secured correctly upfront, while the follow-up support maintains stability until the last cut—preventing uneven residual lengths common with manual loading. For a workshop processing 300 6500mm-long stainless steel tubes (Φ300mm) monthly, this saves ~380kg of material annually, lowering raw material costs by 10%-14%.
User-Friendly Operation & Broad Compatibility: Semi-automatic loading reduces physical labor (no need to manually lift or align heavy 6500mm tubes alone), improving operator safety and reducing fatigue. Meanwhile, the follow-up support adapts seamlessly to round (Φ15-500mm) and square (15×15-500×500mm) tubes—eliminating the need for specialized loading/support tools for different tube types. This versatility maximizes equipment utility, making it suitable for small-batch custom tube parts and large-volume standard components alike.
