| Brand Name: | QIHAI |
| Model Number: | QH-GA |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 Set/month |

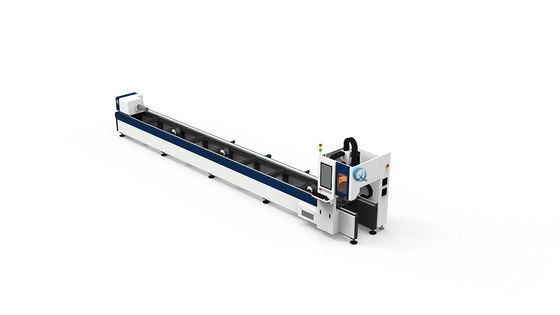

Triple Core Features: Horizontally-mounted lathe (side-mounted chuck for Φ15-500mm round/15×15-500×500mm square tubes); follow-up support (stabilizes 5500-6500mm long tubes); automatic obstacle avoidance (real-time collision prevention).
Key Specs: Model QH-GA-6012; ±0.03mm axis precision; 1500W-20KW laser power; 1.8T weight; 8500×2920×2050mm dimensions.
Fit: Medium-large batch long-tube processing (construction/automotive); safe, stable cutting for thin-thick wall tubes.
| Model | QH-GA-6012 |
|---|---|
| Cutting Diameter | Round Tube: Φ15-500mm Square Tube: 15*15mm to 500*500mm |
| Tube Length Capacity | 5500-6500mm |
| Machine Weight | 1.8T |
| Chuck installation on the lathe | Side-mounted |
| Dimensions (L*W*H) | 8500*2920*2050mm |
| Laser Power Range | 1500W-20KW |
| Positioning Accuracy | ±0.03mm (X/Y-axis) |
| Repositioning Accuracy | ±0.03mm (X/Y-axis) |
| Compatible Tube Types | Round Tube / Square Tube |

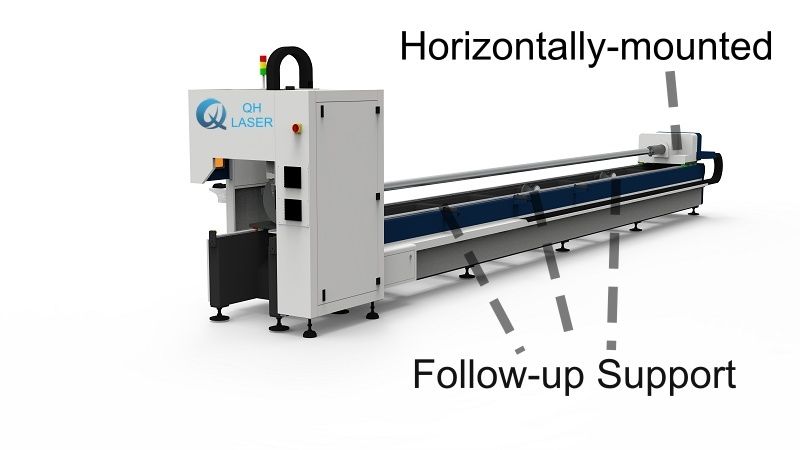

Horizontally-mounted Lathe + Follow-up Support = Unbeatable Long-tube Stability: The horizontal structure’s side-mounted chuck ensures secure, space-efficient clamping of large-diameter tubes (up to Φ500mm), while the follow-up support dynamically braces 5500-6500mm tubes—eliminating sagging that causes ±0.1mm+ deviation. Paired with ±0.03mm axis accuracy, this guarantees uniform cut quality across the entire tube length, reducing rework rates by 35%-40% vs. non-horizontal, unsupportive machines.
Automatic Obstacle Avoidance Maximizes Safety & Uptime: Unlike standard tube cutters, its real-time detection responds in 0.1 seconds to hazards (e.g., misaligned tubes, debris), avoiding laser head damage and operator risks. This cuts equipment repair downtime by 60% and enables uninterrupted processing of 50+ tubes per shift—critical for tight production schedules.
Horizontal Side-mounted Chuck Boosts Workflow Efficiency: The horizontal lathe’s side-mounted chuck allows tube loading from the machine’s side, eliminating the need for overhead lifting (common with vertical chucks) for heavy 6500mm-long tubes. Combined with the follow-up support’s quick length adjustment, this reduces tube changeover time by 25%-30%, accelerating batch processing.
Versatile Compatibility with Horizontal Stability: The horizontal structure, side-mounted chuck, and follow-up support work together to adapt to both round (Φ15-500mm) and square (15×15-500×500mm) tubes. The 1500W-20KW laser power covers thin aluminum (0.5mm wall) to thick carbon steel (20mm wall), eliminating the need for multiple machines for different tube types and lowering equipment costs by 25%-30%.
