| Brand Name: | QIHAI |
| Model Number: | QH-GA |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 Set/month |

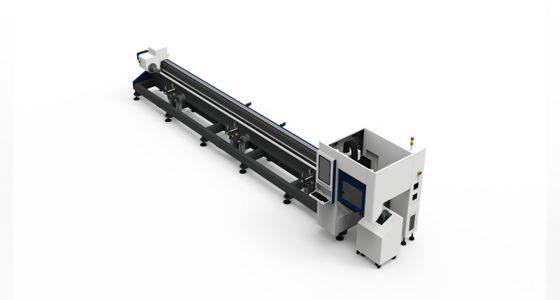

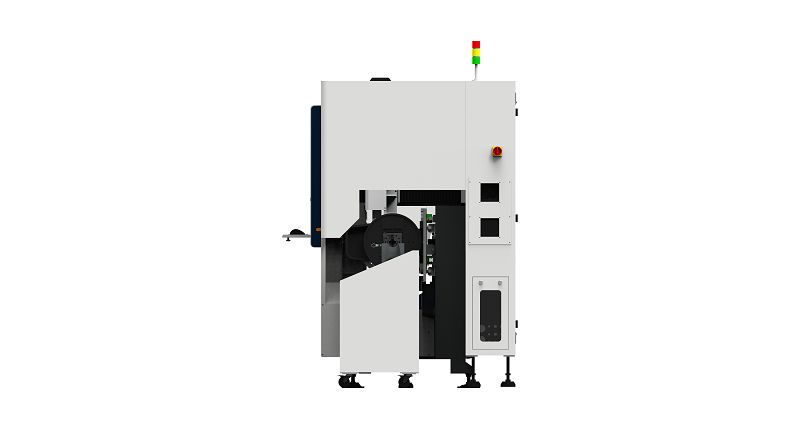

Triple Core Features: Side-mounted lathe chuck (easy loading of Φ15-500mm round/15×15-500×500mm square tubes); follow-up support (stabilizes 5500-6500mm long tubes); automatic obstacle avoidance (real-time collision prevention).
Key Specs: Model QH-GA-6012; ±0.03mm axis precision; 1500W-20KW laser power; 1.8T weight, 8500×2920×2050mm dimensions.
Fit: Medium-large batch long-tube processing (construction/automotive); safe, stable cutting for thin-thick wall tubes.
| Model | QH-GA-6012 |
|---|---|
| Cutting Diameter | Round Tube: Φ15-500mm Square Tube: 15*15mm to 500*500mm |
| Tube Length Capacity | 5500-6500mm |
| Machine Weight | 1.8T |
| Chuck installation on the lathe | Side-mounted |
| Dimensions (L*W*H) | 8500*2920*2050mm |
| Laser Power Range | 1500W-20KW |
| Positioning Accuracy | ±0.03mm (X/Y-axis) |
| Repositioning Accuracy | ±0.03mm (X/Y-axis) |
| Compatible Tube Types | Round Tube / Square Tube |
Side-mounted Lathe + Follow-up Support = Unmatched Long-tube Stability: The side-mounted chuck simplifies loading of large-diameter tubes (up to Φ500mm) without space constraints, while the follow-up support dynamically braces 5500-6500mm long tubes—preventing sagging that causes ±0.1mm+ cutting deviation. Paired with ±0.03mm axis accuracy, this ensures cut/bevel consistency across the entire tube length, reducing rework rates by 35%-40% vs. machines without follow-up support.
Automatic Obstacle Avoidance Boosts Safety & Uptime: Unlike standard tube cutters, its real-time obstacle detection responds in 0.1 seconds to hazards (e.g., misaligned tubes, debris), avoiding laser head damage and operator safety risks. This cuts equipment repair downtime by 60% and ensures uninterrupted processing of 50+ tubes per shift—critical for tight production schedules.
Side-mounted Design Enhances Workflow Efficiency: The side-installed chuck allows tube loading from the machine’s side, eliminating the need for overhead lifting (common with top-mounted chucks) for heavy 6500mm-long tubes. Combined with follow-up support’s quick adjustment, this reduces tube changeover time by 25%-30%, boosting overall batch processing efficiency.
