| Brand Name: | QIHAI |
| Model Number: | QH-GA |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 Set/month |

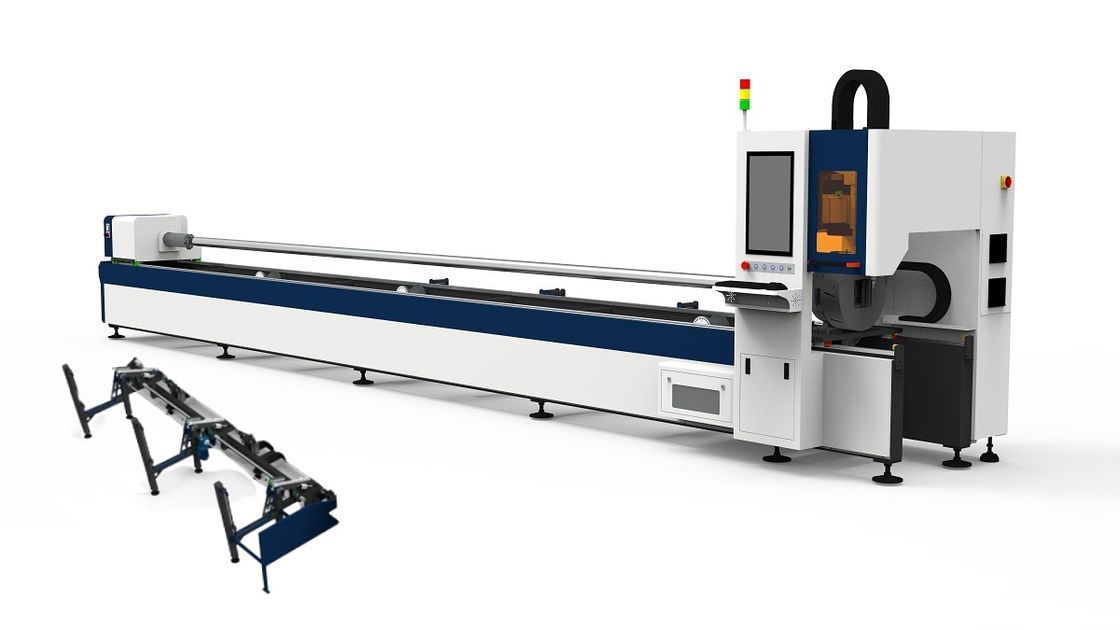

Triple Core Features: Horizontally-mounted lathe (side-mounted chuck for Φ15-500mm round/15×15-500×500mm square tubes); fully-automatic loading (feeds 5500-6500mm tubes, no manual lift); automatic obstacle avoidance (real-time collision prevention).
Key Specs: Model QH-GA-6012; ±0.03mm axis precision; 1500W-20KW laser power; 1.8T weight; 8500×2920×2050mm dimensions.
Fit: Medium-large batch long-tube processing (construction/automotive); safe, fast cutting for thin-thick wall tubes.
| Model | QH-GA-6012 |
|---|---|
| Cutting Diameter | Round Tube: Φ15-500mm Square Tube: 15*15mm to 500*500mm |
| Tube Length Capacity | 5500-6500mm |
| Machine Weight | 1.8T |
| Chuck installation on the lathe | Side-mounted |
| Dimensions (L*W*H) | 8500*2920*2050mm |
| Laser Power Range | 1500W-20KW |
| Positioning Accuracy | ±0.03mm (X/Y-axis) |
| Repositioning Accuracy | ±0.03mm (X/Y-axis) |
| Compatible Tube Types | Round Tube / Square Tube |
Horizontally-mounted Lathe + Fully-automatic Loading = Unmatched Efficiency: The horizontal lathe’s side-mounted chuck provides stable clamping for large-diameter tubes (up to Φ500mm), while the fully-automatic loading system auto-feeds 5500-6500mm long tubes—eliminating 20-30 minutes of manual loading per batch. This cuts overall processing cycle time by 35%-45% vs. manual-loading horizontal machines, enabling 60+ tubes processed per shift.
Automatic Obstacle Avoidance Guards Safety & Equipment Life: Unlike standard fully-automatic cutters, its real-time hazard detection responds in 0.1 seconds to issues (e.g., misfed tubes, debris in the lathe). This avoids laser head damage (costly to repair) and operator risks, reducing equipment downtime by 60% and ensuring consistent ±0.03mm precision—critical for high-tolerance automotive or construction parts.
Horizontal Design + Auto-loading + Obstacle Avoidance = Versatile Stability: The trio of features works seamlessly for both round (Φ15-500mm) and square (15×15-500×500mm) tubes. The horizontal lathe prevents tube sagging (a common issue with vertical setups) for 6500mm long tubes, the fully-automatic loading maintains consistent alignment, and the obstacle avoidance ensures no collisions disrupt processing. This versatility eliminates the need for separate machines for different tube types, lowering equipment costs by 25%-30%.
