QH-6015F Beveling Cutting Sheet Metal Laser Cutting Machine

Name: QH-6015F Beveling Cutting Sheet Metal Laser Cutting Machine
Brand: Qihai Laser Tech. Co., Ltd.
SKU: QH-6015F
Availability: InStock

Brand Name:	QIHAI
Model Number:	QH-6015F
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100 set/month

Detail Information

Product Description

Detail Information

Place of Origin:

Foshan, Guangdong, China

Certification:

ISO, CE

Graphic Format Supported:

DXF,AI,BMP,PLT,DWG

Cnc Or Not:

Yes

Application:

Laser Cutting,Suitable For Metal Sheets Cutting,cheap Laser Metal Cutting Machine,metal Cutting

Cutting Thickness:

Materials,0-30mm,Depends,7-8,1-12 M (carbon Steel)

Cooling Mode:

Water Cooling

Warranty:

1 Year

Product Name:

Fiber Laser Metal Cutting Machine,BODOR F3015,GWEIKE LF3015C Metal Sheet Laser Cutting Machine

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Cooling System:

Water Cooling, Industry Water Chiller

Packaging Details:

wood, plastic, container

Highlight:

beveling cutting sheet metal laser cutting machine

beveling cutting cnc laser steel cutter

water cooling cnc laser steel cutter

Product Description

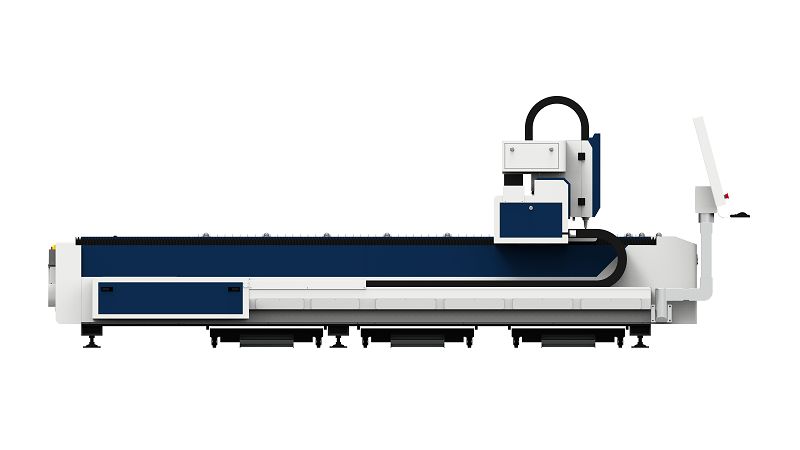

QH-6015F Beveling Cutting Sheet Metal Laser Cutting Machine

Description

The QH-6015F is a specialized beveling sheet metal laser cutting machine designed for high-precision beveling processing of medium-to-large workpieces, perfectly suited for industries like steel structures, engineering machinery, and large-scale equipment enclosures. Its core strength lies in merging a spacious 6000×1500mm processing area (supporting up to 900kg maximum loading weight) with stable, consistent beveling capabilities—enabling one-time beveling processing for long workpieces (e.g., 6m-long steel beams) without segmenting, which eliminates alignment errors common in split processing.

Quick details

Beveling Core: ±0.03mm X/Y-axis precision ensures uniform beveling quality across 6000×1500mm area; supports V/U/Y/single/double-sided bevels, no workpiece segmentation needed.

Key Specs: 6000×1500mm processing area (900kg max loading), 1500W-20KW laser power (0.5-20mm beveling thickness), double rack & pinion servo transmission.

Efficiency: 100m/min max linkage speed + 1.0G acceleration—cuts medium-large workpiece beveling time by 30% vs. segmented processing.

Fit: Steel structures, engineering machinery; 380V/50Hz for industrial workshop integration.

Technical Specifications

Processing Area	6000 * 1500mm
Maximum Loading Weight	900kg
Machine Weight	3500kg
Overall Dimensions	8000×2560×1900mm
Laser Power Range	1500W - 20KW
X/Y-axis Positioning Accuracy	±0.03mm
X/Y-axis Repositioning Accuracy	±0.03mm
Maximum Linkage Acceleration	1.0G
Maximum Linkage Speed	100m/min
Transmission System	Double rack & pinion transmission with servo drive
Voltage Requirement	380V
Frequency	50Hz

Advantage

Medium-Large Workpiece Beveling Without Alignment Errors: The 6000×1500mm processing area allows one-time beveling cutting for long workpieces (e.g., 6m×1.5m steel plates) without splitting. This avoids beveling misalignment (a major issue in segmented processing) and reduces weld joint rework rates by 40%-50%, as the ±0.03mm axis precision maintains consistent bevel angles from the start to end of the 6m length.​

High-Speed Beveling for Medium-Batch Efficiency: With 100m/min linkage speed and 1.0G acceleration, the machine completes large-area beveling tasks quickly—for example, finishing a full-length V-bevel on a 6m×1.5m stainless steel sheet (5mm thick) in 8-10 minutes, compared to 12-15 minutes with slower medium-format cutters. This directly boosts daily output of beveling workpieces by 25%+, ideal for meeting medium-batch production deadlines.​

Power Versatility for Multi-Thickness Beveling: The 1500W-20KW adjustable laser power range covers diverse beveling needs: low power (1500W-5KW) for precision beveling on thin medium sheets (0.5-5mm aluminum), high power (10KW-20KW) for deep-penetration beveling on thick plates (10-20mm carbon steel). This eliminates the need for multiple machines for different thicknesses, lowering equipment costs while ensuring consistent beveling quality across material types.​

Stable High-Load Beveling: With a 900kg maximum loading capacity and 3500kg robust frame, the machine securely holds heavy medium-large plates (e.g., 20mm thick carbon steel sheets) during beveling cutting. The double rack & pinion servo transmission prevents workpiece shift under high load, ensuring beveling edges remain smooth and accurate—critical for engineering machinery parts where beveling quality directly impacts structural strength.
