| Brand Name: | QiHai |
| Model Number: | QH-4015F |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 90set/mon |

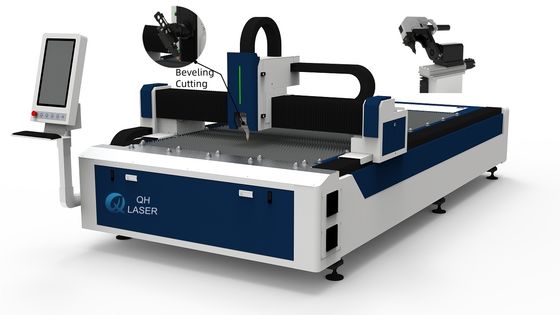

Beveling + Open Single Platform Core: ±45° adjustable bevel angle (±0.5° accuracy) for V/U/Y-type bevels; 4000×1500mm single platform (900kg max load) enables direct workpiece access, cutting bevel loading time by 30% vs. enclosed multi-platform models.
Key Specs: ±0.03mm X/Y precision (ensures uniform bevel quality), 1500W-20KW power (0.5-25mm bevel thickness), 100m/min max speed, double rack & pinion servo drive.
Efficiency: 1.0G acceleration shortens 4m-long workpiece bevel time by 25%; open design simplifies post-bevel inspection.
Fit: Steel structure/engineering machinery parts; 380V/50Hz for small-to-medium fabrication shops.
| Processing Area | 4000 * 1500mm |
| Maximum Loading Weight | 900kg |
| Machine Weight | 1700kg |
| Overall Dimensions | 5500 * 2350 * 1900mm |
| Laser Power Range | 1500W - 20KW |
| X/Y-axis Positioning Accuracy | ±0.03mm |
| X/Y-axis Repositioning Accuracy | ±0.03mm |
| Maximum Linkage Acceleration | 1.0G |
| Maximum Linkage Speed | 100m/min |
| Transmission System | Double rack & pinion transmission with servo drive |
| Voltage Requirement | 380V |
| Frequency | 50Hz |
Advantage
Single Platform Stability Guarantees Bevel Uniformity: Unlike multi-platform machines that risk angle deviations during platform switching, the QH-4015F’s integrated single platform provides consistent support for 900kg workpieces. Paired with ±0.03mm axis precision and double rack & pinion transmission, it maintains uniform bevel angles (e.g., consistent 30° V-bevels) across the entire 4000×1500mm area—critical for welding joint fit-up, reducing weld rework rates by 40%-50%.
Open Design Boosts Bevel Processing Flexibility: The open structure allows operators to load irregularly shaped workpieces (e.g., custom engineering machinery brackets needing partial bevels) directly onto the platform, avoiding the size restrictions of enclosed machines. For small-batch bevel tasks (e.g., 5-10 pieces of 4m steel plates), loading/unloading takes only 3-5 minutes per batch (vs. 8-12 minutes for enclosed models), minimizing downtime between bevel jobs.
Power Versatility Covers Multi-Thickness Bevel Needs: The 1500W-20KW laser power range adapts to diverse bevel scenarios: low power (1500W-5KW) for precision beveling of thin sheets (0.5-5mm aluminum), high power (10KW-20KW) for deep-penetration beveling of thick plates (15-25mm carbon steel). This eliminates the need for separate machines for different thicknesses, while the 100m/min speed ensures even thick-plate beveling is efficient (e.g., beveling a 20mm thick 4×1.5m steel plate in 12-15 minutes).
