| Brand Name: | QiHai |
| Model Number: | QH-4020F |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 90set/mon |

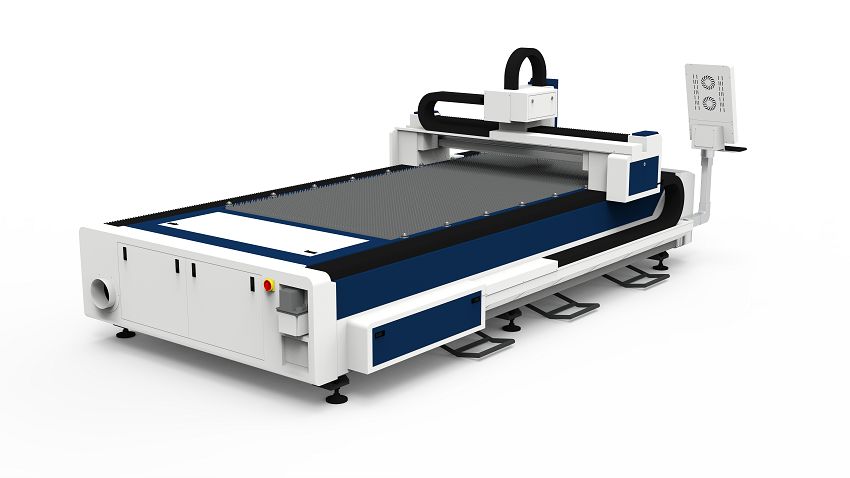

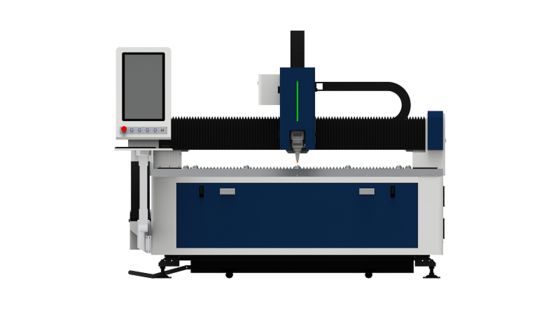

Single Platform Core: One-stop processing (no workpiece transfer); 4000×2000mm single workbench ensures consistent precision, 100kg max load for oversized sheets.
Key Specs: ±0.03mm axis accuracy (uniform across single platform), 1500W-20KW power (0.5-25mm cutting), 1.5G acceleration + 100m/min speed for fast batch work.
Convenience: Compact 5500×2550×1900mm size; single-platform operation reduces training needs for operators.
Fit: Auto parts/batch hardware; 380V/50Hz industrial compatibility.
| Processing Area | 4000 * 2000mm |
| Maximum Loading Weight | 100kg |
| Machine Weight | 1800kg |
| Overall Dimensions | 5500 * 2550 * 1900mm |
| Laser Power Range | 1500W - 20KW |
| X/Y-axis Positioning Accuracy | ±0.03mm |
| X/Y-axis Repositioning Accuracy | ±0.03mm |
| Maximum Linkage Acceleration | 1.0G |
| Maximum Linkage Speed | 100m/min |
| Transmission System | Double rack & pinion transmission with servo drive |
| Voltage Requirement | 380V |
| Frequency | 50Hz |
Advantage
Single Platform Eliminates Transfer Errors: By keeping workpieces fixed on one integrated platform (no moving between cutting/loading stations), the machine avoids dimensional deviations caused by workpiece repositioning—critical for maintaining ±0.03mm accuracy across large 4000×2000mm sheets. This reduces scrap rates by 25%-35% compared to multi-platform machines, especially for parts requiring precise feature alignment (e.g., electrical cabinet mounting holes).
Faster Batch Processing via Single-Platform Efficiency: The single-platform design streamlines loading/unloading—operators can quickly place new sheets on the same workbench after cutting, cutting downtime between batches by 30%-40%. Combined with 1.5G acceleration and 100m/min speed, this makes the machine ideal for high-volume production (e.g., 100+ auto part sheets per shift) where workflow continuity is key.
Space-Saving Single-Platform Footprint: At 5500×2550×1900mm, the integrated single-platform structure is 15%-20% more compact than multi-platform alternatives (which require extra space for transfer rails). This is a major advantage for workshops with limited area, allowing easy integration into existing production lines without extensive layout adjustments.
