| Brand Name: | QIHAI |
| Model Number: | QH-13025FD |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 Set/month |

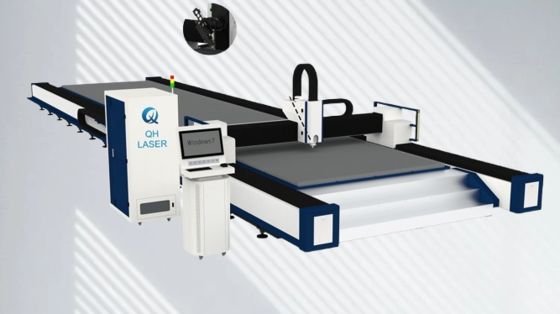

1.5G High-Speed Core: 1.5G maximum linkage acceleration (30% faster than 1.0G models) cuts empty travel time by 35%; paired with 100m/min speed for rapid 13000×2500mm area processing.

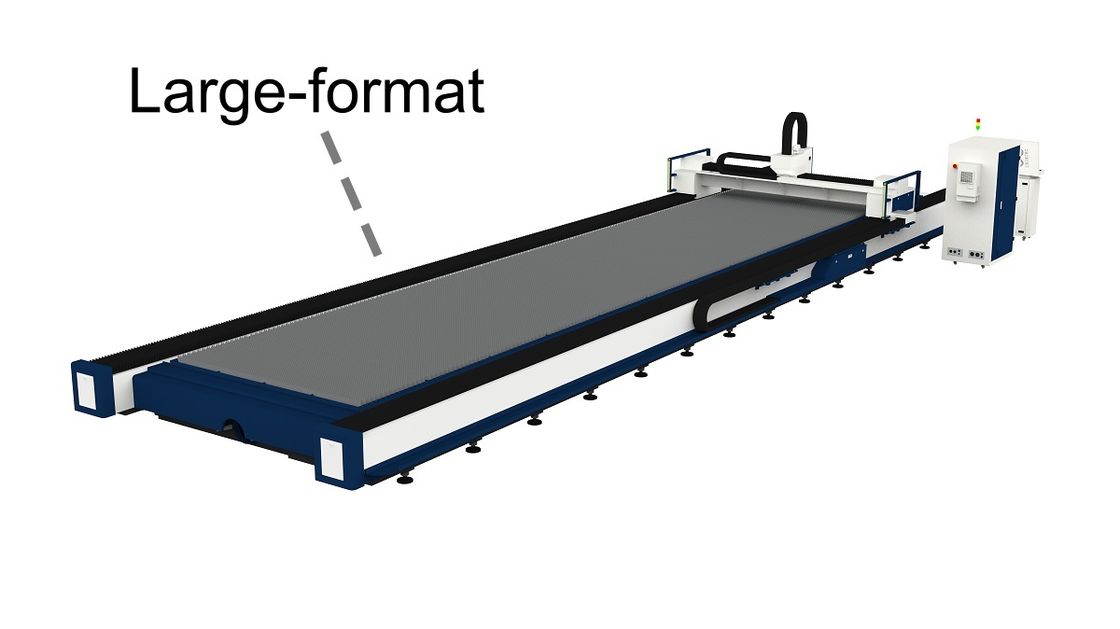

Key Specs: 13000×2500mm processing area (12000kg max loading), 1500W-20KW laser power (0.5-25mm thickness), ±0.03mm axis accuracy, double rack & pinion servo transmission.
Fit: Heavy steel structures/shipbuilding; reduces large workpiece cutting time by 40% vs. standard large-format cutters.
| Specification | Value |
|---|---|
| Processing Area | 13000 × 2500mm |
| Maximum Loading Weight | 12000kg |
| Machine Weight | 10000kg |
| Overall Dimensions | 16200×4060×2050mm |
| Laser Power Range | 1500W - 20KW |
| X/Y-axis Positioning Accuracy | ±0.03mm |
| X/Y-axis Repositioning Accuracy | ±0.03mm |
| Maximum Linkage Acceleration | 1.5G |
| Maximum Linkage Speed | 100m/min |
| Transmission System | Double rack & pinion transmission with servo drive |
| Voltage Requirement | 380V |
| Frequency | 50Hz |
Advantage
1.5G Acceleration Slashes Large-Workpiece Processing Time: The 1.5G maximum linkage acceleration enables ultra-fast transitions between cutting paths—for example, when processing a 13m×2.5m steel sheet with multiple cutouts, it reduces empty travel time by 35% (from 8 mins to 5.2 mins) compared to 1.0G machines. Combined with 100m/min cutting speed, it completes full-area processing of oversized workpieces in 20-25 mins (vs. 35+ mins for slower models), drastically boosting production throughput.
High Speed Maintains High Precision: Unlike low-end high-speed cutters that sacrifice accuracy for speed, the QH-13025FD’s double rack & pinion servo transmission stabilizes motion during 1.5G acceleration, keeping X/Y-axis accuracy at ±0.03mm. This ensures consistent cut quality (smooth edges, no burrs) even when processing complex patterns on large sheets—critical for industries like shipbuilding where precision directly impacts weld joint fit.
1.5G Performance Handles Heavy Loads: With a 12000kg maximum loading weight, the machine can high-speed cut thick, heavy plates (e.g., 25mm carbon steel sheets weighing 500kg+) without speed loss. The 10000kg robust frame prevents deformation during 1.5G acceleration, avoiding workpiece shift and ensuring uniform cutting depth across the entire large surface—eliminating the need for post-cut adjustments.
Power-Versatility Meets High Speed: The 1500W-20KW laser power range optimizes high-speed cutting for diverse materials: 1500W-5KW for rapid cutting of 0.5-5mm aluminum sheets (100m/min full speed), 10KW-20KW for high-speed deep cutting of 15-25mm carbon steel (maintaining 80% of 100m/min speed). This versatility, paired with 1.5G acceleration, allows the machine to handle mixed-batch large-format processing efficiently, reducing equipment idle time.
