| Brand Name: | QIHAI |
| Model Number: | QH-12025FD |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 Set/month |

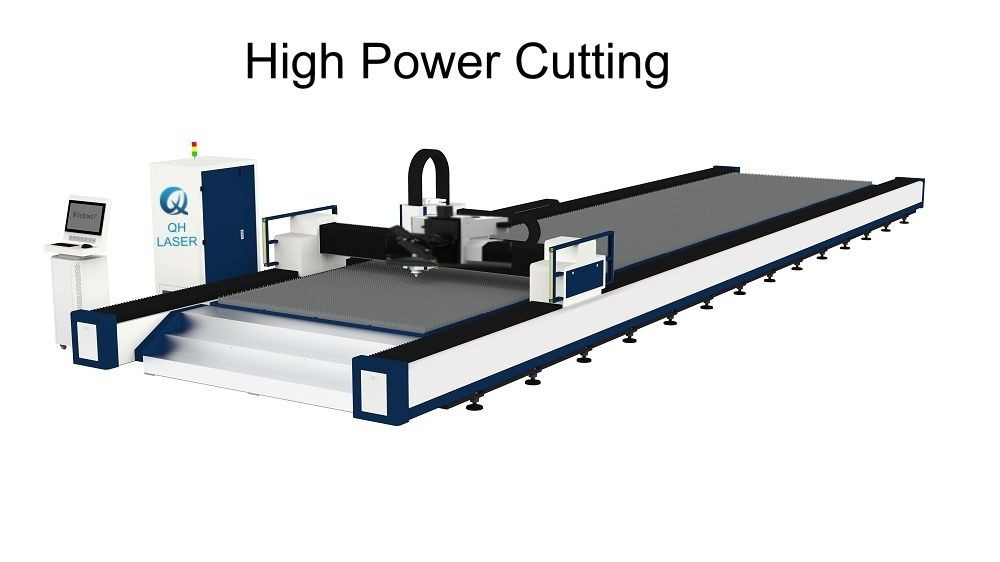

High Power & Large-format Core: 6000W-20KW laser cuts 10-50mm carbon steel in one pass; 12000×2500mm area handles 12m-long workpieces (12000kg max loading) without segmentation.
Key Specs: ±0.03mm X/Y accuracy (stable for large workpiece cutting), 100m/min max speed, double rack & pinion servo transmission (high-power operation stability).
Efficiency Fit: Heavy-industry large-batch production (steel structures, shipbuilding); 380V/50Hz for industrial power compatibility.
| Specification | Value |
|---|---|
| Processing Area | 12000 × 2500mm |
| Maximum Loading Weight | 12000kg |
| Machine Weight | 10000kg |
| Overall Dimensions | 15200×4060×2050mm |
| Laser Power Range | 6000W - 20KW |
| X/Y-axis Positioning Accuracy | ±0.03mm |
| X/Y-axis Repositioning Accuracy | ±0.03mm |
| Maximum Linkage Acceleration | 1.0G |
| Maximum Linkage Speed | 100m/min |
| Transmission System | Double rack & pinion transmission with servo drive |
| Voltage Requirement | 380V |
| Frequency | 50Hz |
Advantage
High Power Eliminates Thick-Metal Secondary Processing: The 6000W-20KW power range enables one-pass cutting of thick materials that low-power machines struggle with—for example, 50mm carbon steel (vs. 2-3 passes with 3000W models) and 30mm stainless steel. This slashes processing time for thick large-format sheets by 50%-60% and avoids edge inconsistencies from multi-pass cuts, reducing weld joint rework rates in heavy steel structures.
Large-format Processing Avoids Workpiece Splicing: The 12000×2500mm area allows full-size cutting of oversized workpieces (e.g., 12m×2.5m wind turbine tower flanges) without splitting. This eliminates alignment errors from splicing small cut sections (common in smaller-format machines) and reduces assembly time by 40%-45%, while the 12000kg loading capacity securely holds heavy thick plates during high-power cutting, preventing workpiece shift.
High Power + High Speed Boosts Large-Workpiece Efficiency: For large thick workpieces (e.g., a 12m×2m×30mm carbon steel plate), the 6000W-20KW power ensures fast cut penetration, while the 100m/min linkage speed enables quick traversal across the 12m length. This combination cuts total processing time for such workpieces to 25-30 minutes (vs. 45+ minutes with low-power/low-speed models), critical for meeting high-volume heavy-industry production deadlines.
Robust Build Supports Sustained High-Power Use: The 10000kg heavy-duty frame dampens vibrations from high-power laser operation (6000W-20KW), protecting the double rack & pinion transmission and maintaining ±0.03mm accuracy long-term. High-wear-resistant components in the laser system reduce maintenance frequency by 25%-30% even under daily 8-10 hour high-power runtime, lowering operational costs while ensuring consistent large-format thick-metal cutting performance.
