| Brand Name: | QIHAI |
| Model Number: | QH-8020F |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 90set/mon |

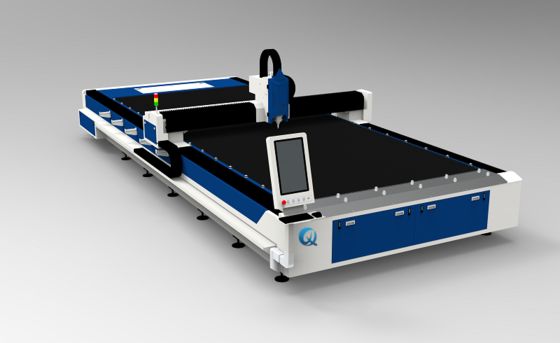

Single Platform Open Type Core: Unobstructed platform access for easy crane loading/unloading of 2600kg max-weight workpieces; no enclosed frames to limit large-sheet handling.
Key Specs: 8000×2000mm processing area, 1500W-20KW power (single-pass thick-plate cutting), ±0.03mm axis accuracy, 100m/min speed.
Fit: Heavy machinery/steel structures; 380V/50Hz industrial use; open design suits workshops with crane operations.
| Processing Area | 8000 * 2000mm |
| Maximum Loading Weight | 2600kg |
| Machine Weight | 3800kg |
| Overall Dimensions | 11000 * 3260 * 1900mm |
| Laser Power Range | 1500W - 20KW |
| X/Y-axis Positioning Accuracy | ±0.03mm |
| X/Y-axis Repositioning Accuracy | ±0.03mm |
| Maximum Linkage Acceleration | 1.0G |
| Maximum Linkage Speed | 100m/min |
| Transmission System | Double rack & pinion transmission with servo drive |
| Voltage Requirement | 380V |
| Frequency | 50Hz |
Advantage
Simplified Heavy Workpiece Handling: The open single-platform design eliminates enclosed side panels, allowing cranes to directly place/remove 2600kg heavy thick sheets onto the processing area—reducing loading/unloading time by 40%-50% vs. enclosed machines (which require awkward angle adjustments). This also minimizes workpiece collision risks during handling, lowering scrap rates for high-value thick plates.
Enhanced Operational Accessibility & Maintenance: The open structure provides clear visibility of the entire cutting process, enabling operators to monitor thick-plate cutting (e.g., heat-affected zone, edge quality) in real time and adjust parameters promptly. It also simplifies maintenance of the laser head, transmission system, and dust collection components—cutting downtime for routine checks by 30% compared to enclosed platforms.
High Power + Open Platform Synergy: The 6000W-20KW power range handles thick metals, while the open single platform accommodates the large 8000×2000mm workpieces these materials typically form (e.g., 8m-long steel structure beams). Unlike multi-platform machines that require workpiece transfer (risking alignment errors), the single platform ensures consistent ±0.03mm precision across the entire large workpiece, critical for structural component accuracy.
Space-Efficient Industrial Integration: Despite its 8000×2000mm processing capacity, the open single-platform design avoids the bulk of enclosed multi-platform systems. Its 11000×3260×1900mm overall dimensions fit workshops with limited lateral space, and the open layout allows flexible placement alongside other equipment (e.g., bending machines) for streamlined production workflows—no need for dedicated large enclosures.
