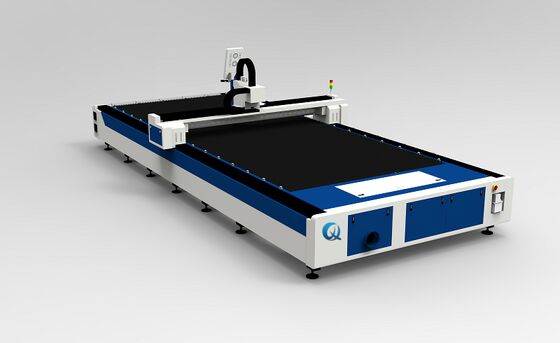

QH-6025F Sheet Metal Laser Cutting Machine 6000×2500mm Single table

Name: QH-6025F Sheet Metal Laser Cutting Machine 6000×2500mm Single table
Brand: Qihai Laser Tech. Co., Ltd.
SKU: QH-6025F
Availability: InStock

Brand Name:	QIHAI
Model Number:	QH-6025F
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100 set/month

Detail Information

Product Description

Detail Information

Place of Origin:

Foshan, Guangdong, China

Certification:

ISO, CE

Graphic Format Supported:

DXF,AI,BMP,PLT,DWG

Cnc Or Not:

Yes

Application:

Laser Cutting,Suitable For Metal Sheets Cutting,cheap Laser Metal Cutting Machine,metal Cutting

Cutting Thickness:

Materials,0-30mm,Depends,7-8,1-12 M (carbon Steel)

Cooling Mode:

Water Cooling

Cutting Speed:

0-40000mm/min,20m/min,600mm/s,000mm/min,150000-200000mm/min

Warranty:

1 Year

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Cooling System:

Water Cooling, Industry Water Chiller

Keyword:

Laser Cutting Machine Price,6kw Fiber Laser Cutting Machine

Packaging Details:

wood, plastic, container

Highlight:

6000x2500mm sheet metal laser cutter

single table laser cutting machine

QH-6025F metal laser cutter

Product Description

QH-6025F Sheet Metal Laser Cutting Machine 6000×2500mm Single table

Description

The QH-6025F Sheet Metal Laser Cutting Machine is a high-performance, heavy-duty cutting equipment specifically designed for large-format sheet metal processing, featuring this key configuration, with 6000×2500mm processing area and Single table. This single-table design ensures stable and efficient operation, making it ideal for handling large-size sheet metal workpieces that require consistent precision and smooth cutting results. The machine is equipped with Laser power range of 1500W to 20KW, which delivers strong cutting capabilities to handle various sheet metal processing demands.

Quick details

Single-table configuration with 6000×2500mm large processing area: The QH-6025F boasts this key design, enabling one-time processing of large-size sheet metal without frequent workpiece adjustment, greatly improving processing efficiency.

Maximum linkage speed of 100m/min and maximum linkage acceleration of 1.0G: These key technical parameters ensure fast and smooth cutting operations, reducing processing time while maintaining stability.

1000kg maximum loading capacity of the single table: This further enhances the machine’s applicability for heavy-duty sheet metal processing, expanding its range of usable materials.

Technical Specifications

Processing Area	6000 * 2500mm
Maximum Loading Weight	1000kg
Machine Weight	3700kg
Overall Dimensions	8000×2960×1900mm
Laser Power Range	15000W - 20KW
X/Y-axis Positioning Accuracy	±0.03mm
X/Y-axis Repositioning Accuracy	±0.03mm
Maximum Linkage Acceleration	1.0G
Maximum Linkage Speed	100m/min
Transmission System	Double rack & pinion transmission with servo drive
Voltage Requirement	380V
Frequency	50Hz

Advantage

6000×2500mm single table for large processing space and simplified operation: This is the most prominent advantage of the QH-6025F, eliminating the complexity of dual-table switching and reducing workpiece positioning time, thus boosting overall processing efficiency.

Single-table structure for better operation stability: The design minimizes vibration during operation, which further improves cutting precision, complementing the ±0.03mm X/Y-axis positioning and repositioning accuracy to deliver flawless cutting edges.

1000kg maximum loading weight of the single table for cost saving: It allows direct processing of heavy, large-format sheet metal, reducing material handling steps and labor costs significantly.

High linkage speed, powerful laser output and stable transmission system for efficient cutting: Combined with these advantages, the machine achieves efficient, precise, and cost-effective cutting, making it a competitive choice for large-size sheet metal processing needs.
