QH-3015FC High Power Sheet Metal cutting machine Dual platform Encloesd

Name: QH-3015FC High Power Sheet Metal cutting machine Dual platform Encloesd
Brand: Qihai Laser Tech. Co., Ltd.
SKU: QH-3015F
Availability: InStock

Brand Name:	QiHai
Model Number:	QH-3015F
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	90set/mon

Detail Information

Product Description

Detail Information

Place of Origin:

Foshan, Guangdong, China

Certification:

CE, ISO

Product:

Sheet Metal Laser Cutting Machine

Processing Area:

3000 * 1500mm

Laser Power:

6000W-20000W

X/Y-axis Positioning Accuracy:

0.03mm

Frequency:

50Hz

Voltage:

380V

Laser Generator Classification:

Fiber Laser Generator

Transmission:

Double Rack&pinion Transmission And Servo Drive

Working Environment:

0-40℃, Humidity ≤80%

Graphic Format:

PLT, DXF

Lathe Structure:

Tube Sheet Welding

Packaging Details:

wooden box

Highlight:

High Power Sheet Metal Cutting Machine

Dual Platform Laser Cutter

Enclosed Sheet Metal Laser Machine

Product Description

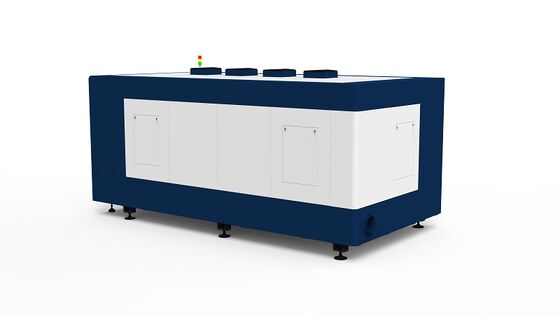

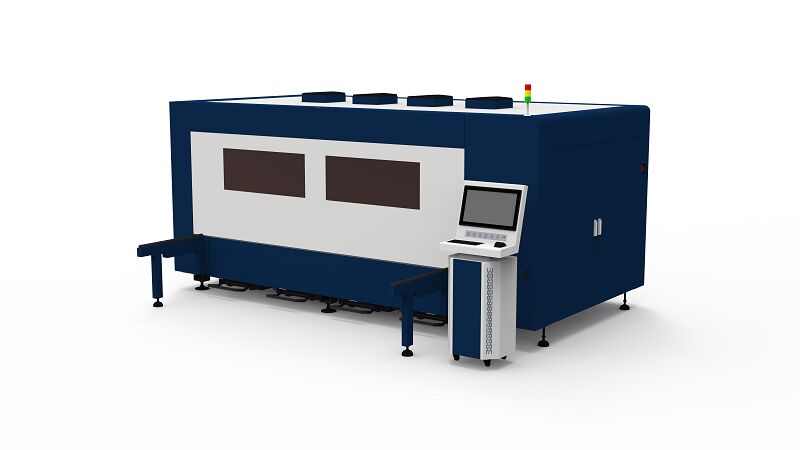

QH-3015FC High Power Sheet Metal cutting machine Dual platform Encloesd

Description

The QH-3015FC is a High Power, Dual Platform Enclosed Sheet Metal Cutting Machine, integrating three core advantages—High Power, Dual Platform, and Enclosed structure—to deliver efficient, safe, and precise cutting results for various sheet metal processing needs. Equipped with a laser power range of 6000W-20KW, its high-power output provides strong cutting force, enabling smooth and fast cutting of different thicknesses of sheet metal. The dual platform design allows for alternate loading and unloading of workpieces, eliminating downtime between cutting processes and greatly improving production efficiency.

Quick Detail

High Power Range of 6000W-20KW: As the core of the machine, the high-power laser ensures efficient cutting of sheet metal, with strong penetration to handle thick sheet metal materials that ordinary laser cutting machines cannot process.

Dual Platform Configuration: Dual alternating platforms allow for seamless workpiece replacement, eliminating downtime and improving production efficiency for batch sheet metal processing.

Enclosed Protective Structure: Fully enclosed design provides comprehensive protection, ensuring operator safety, reducing environmental pollution, and meeting industrial safety standards.

Technical Specifications

Processing Area	3000 * 1500mm
Maximum Loading Weight	800kg
Machine Weight	1800kg
Overall Dimensions	4800 * 2350 * 1900mm
Laser Power Range	6000W - 20KW
X/Y-axis Positioning Accuracy	±0.03mm
X/Y-axis Repositioning Accuracy	±0.03mm
Maximum Linkage Acceleration	1.0G
Maximum Linkage Speed	100m/min
Transmission System	Double rack & pinion transmission with servo drive
Voltage Requirement	380V
Frequency	50Hz

Advantage

High Power for Efficient & High-Quality Cutting: With 6000W-20KW laser power, the machine cuts thick sheet metal quickly and smoothly, reducing processing time, and the high energy ensures neat, burr-free cutting edges, reducing subsequent finishing work.

Dual Platform for Maximized Production Efficiency: The dual platform design eliminates downtime caused by workpiece loading and unloading, allowing continuous cutting operations, which is especially suitable for batch sheet metal processing and greatly improves production capacity.

Enclosed Structure for Safety & Environmental Protection: The enclosed design effectively isolates laser radiation and cutting smoke, protecting operators’ health, reducing workshop noise pollution, and complying with modern industrial safety and environmental protection requirements.
