QH-GK Tube laser cutting machine Automatic packing Beveling cutting

QH-GK Tube laser cutting machine Automatic packing Beveling cutting

Brand Name:	QIHAI
Model Number:	QH-GS
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100 Set/month

Detail Information

Product Description

Detail Information

Place of Origin:

Foshan, Guangdong, China

Certification:

CE, ISO

Cnc Or Not:

Yes

Graphic Format Supported:

PLT,DXF,AI,BMP,DST

Cutting Thickness:

Depends,Materials,0-20mm,30mm Acrylic,0-15mm

Cooling Mode:

Water Cooling

Warranty:

1 Year

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Color:

White,according To Client,Required,Blue And White

Packaging Details:

wood

Highlight:

Tube laser cutting machine with beveling

Automatic packing laser cutting machine

Fiber laser metal tube cutter

Product Description

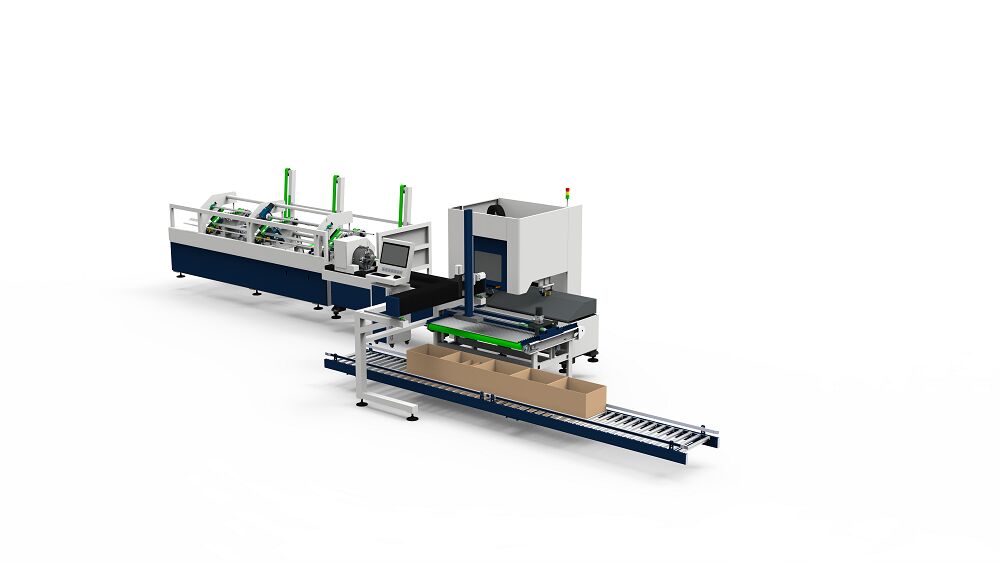

QH-GK Tube laser cutting machine Automatic packing

Description

The QH-GK Tube Laser Cutting Machine (taking model QH-GK-6012 as the reference standard) is a high-performance integrated tube processing equipment, featuring two core advantages: high-precision Beveling Cutting (坡口切割) and automatic tube packing with suction cups, integrated with reliable laser cutting performance. It is specially designed for industries such as machinery manufacturing, construction pipe fittings, hardware production and pipe processing, providing efficient, precise, labor-saving and integrated processing solutions for round and square tube cutting, beveling, picking and packing scenarios. This machine breaks through the limitations of traditional tube processing that requires separate cutting, beveling and manual packing, integrating three key processes into one seamless workflow, greatly improving the automation level, processing precision and production efficiency of tube processing.

Its dual core features are perfectly integrated in the processing workflow: first, the high-precision beveling cutting function completes both straight cutting and multi-angle beveling (such as 45°, 60°, V-shaped, U-shaped bevels) in a single clamping, without secondary processing, ensuring consistent bevel angles and smooth, burr-free cutting edges.

Quick Detail

Core Highlights: Dual core functions of Beveling Cutting (one-pass multi-angle beveling without secondary processing) andautomatic tube packing with suction cups (suction cups pick up cut tubes and transport them to wooden cases for automatic packing, replacing manual operations).

Key Specifications: Laser power range 1500W-20KW; round tube cutting diameter Φ15-500mm, square tube 15×15-500×500mm; tube length capacity 5500-6500mm. Precision & Performance: ±0.03mm X/Y-axis positioning and repositioning accuracy, ensuring stable beveling precision and reliable suction cup picking; suction cup device is soft and non-damaging to tube surfaces.

Application Scope: Machinery components, construction pipe fittings, hardware products and other scenarios requiring high-precision beveling, efficient cutting and automated packing integration.

Product Specifications

Model	QH-GK-6012
Cutting Diameter	Round Tube: Φ15-500mm Square Tube: 1515mm to 500500mm
Tube Length Capacity	5500-6500mm
Machine Weight	1.7T
Dimensions (LWH)	850013802050mm
Laser Power Range	1500W-20KW
Positioning Accuracy	±0.03mm (X/Y-axis)
Repositioning Accuracy	±0.03mm (X/Y-axis)
Compatible Tube Types	Round Tube / Square Tube
Function	Automatic packing, beveling cutting

Advantage

Dual Core Functions Improve Integrated Processing Efficiency: The combination of beveling cutting and suction cup automatic packing eliminates the need for separate beveling processing and manual packing. The beveling cutting function completes cutting and beveling in one pass, reducing processing time by 40%, while the suction cup automatic packing function cuts packing time by more than 50% compared with manual operations. The seamless connection between the two functions shortens the entire production cycle, reduces manual operation steps by 100%, and greatly improves the overall production efficiency of tube processing.

High-Precision Beveling Ensures Stable Joint Quality: The machine’s ±0.03mm positioning and repositioning accuracy, combined with the 1500W-20KW adjustable laser power, ensures consistent bevel angles and sizes for each tube, whether processing round or square tubes of different specifications. This high precision avoids welding defects caused by uneven bevels, improves the qualification rate of finished products, and meets the strict quality requirements of engineering scenarios such as pipe welding.

Suction Cup Packing Ensures Safe and Damage-Free Storage and Transportation: The dedicated suction cup device adopts a soft, wear-resistant design that stably absorbs cut tubes without scratching their surfaces or causing deformation—especially suitable for precision tubes with high surface quality requirements. During transportation and packing, the suction cup maintains stable clamping force, avoiding tube falling or collision, ensuring the integrity of the beveled edges and tube surfaces, and facilitating subsequent storage and transportation.

Strong Versatility and Cost-Efficiency: Both the beveling cutting and suction cup automatic packing functions are fully compatible with round tubes (Φ15-500mm) and square tubes (15×15-500×500mm), covering most common industrial tube specifications. Enterprises do not need to purchase separate beveling equipment or hire additional packing workers, which saves equipment investment and labor costs. The machine’s compact structure also reduces workshop space occupation, while its stable performance minimizes maintenance frequency and long-term operation costs.
